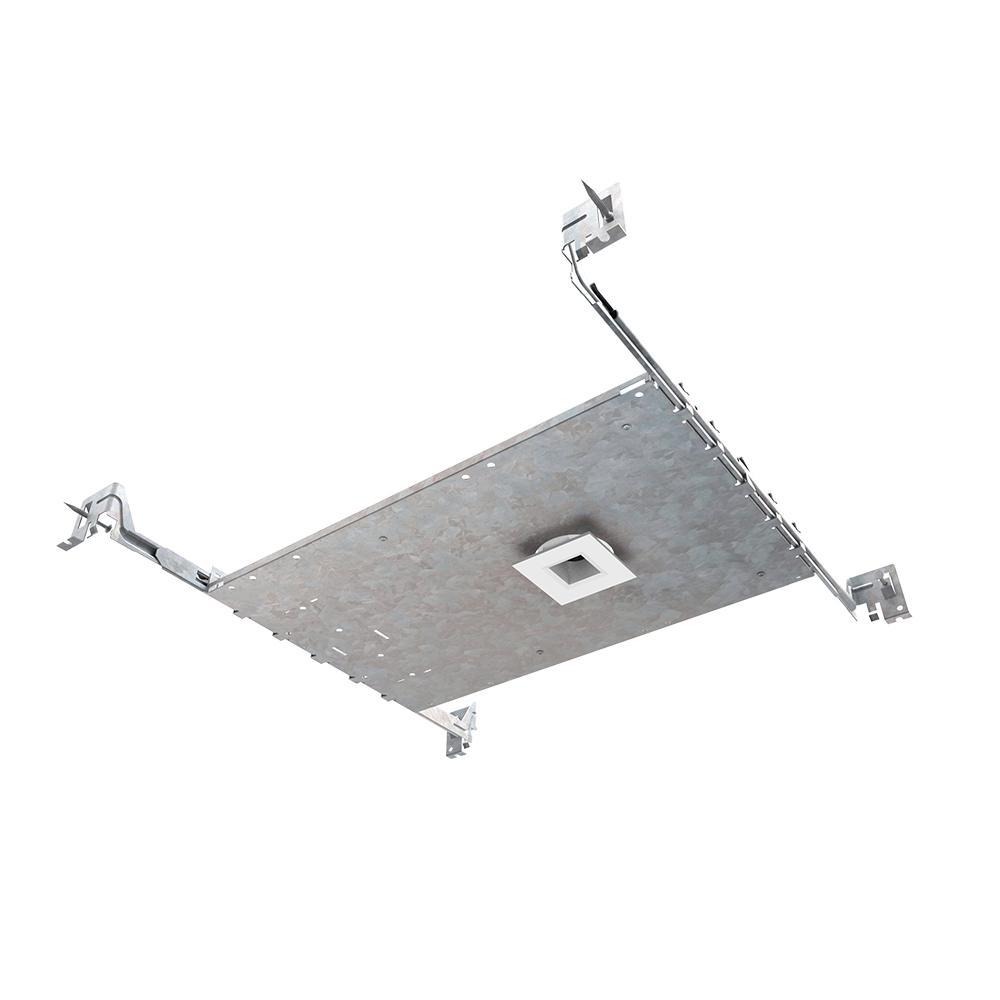

1 Inch New Construction Light Emitting Surface Square Miniature LED Downlight
ITEM No.： BL1-S001-NC
Series : Miniature LED Recessed Downlight
Wattage : 8W
Lumens : 800-1000lm
Beam Angle : 30D/60D/90D
CCT : 2700K-5000K
Features
– The simplified retrofit installation can be used in both new and existing spaces.
– IC Airtight for use with direct contact to insulation.
– Beam Angle: 30/60/90 Degrees.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.
Specification
– Source: LED COB Chips.
– Lumen maintenance: 50,000 hours L70 based on LM80 standardized test results.
– Optics: PC Lens for even lumen distribution.
– Material: Die-cast aluminum construction for lasting quality.
– Mounting: New construction installation or remodel installation
– Electrical: High efficiency electronic driver, rated at 50 000 hours
– Heat dissipation: Superior Thermal Management by utilizing aluminum body as heat sink.
– Warranty: 3 year limited warranty.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting and accent lighting.
Parameter
Voltage: AC/DC12V
Watt: 8W
Dimming: Non-dimming
Lumen: 800-1000lm
Light Source: COB
CRI: 80/90+
Beam Angle: 30D/60D/90D
CCT: 2700K-5000K
Finish: White/Black/Brown
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BL1-S001-NC
|
liteharbor | 1 MB | 391 |
