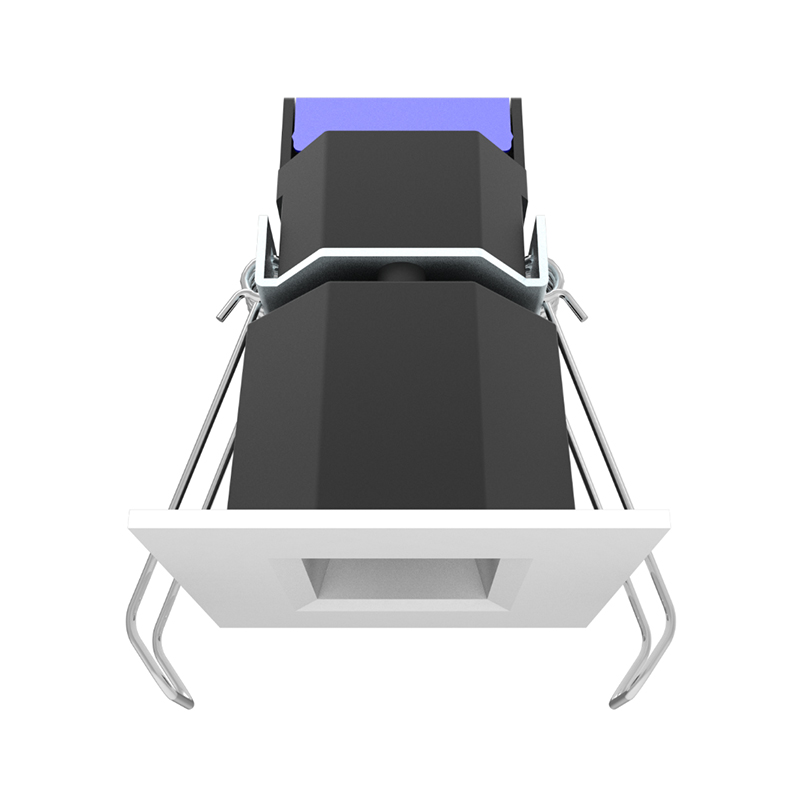

2 Inch Light Remodel 3CCT Emitting Surface Square Fixed Miniature LED Downlight
/
/
/
/
/
2 Inch Light Remodel 3CCT Emitting Surface Square Fixed Miniature LED Downlight

2 Inch Light Remodel 3CCT Emitting Surface Square Fixed Miniature LED Downlight

ITEM No.: BL2-S001
Series : Miniature LED Recessed Downlight
Wattage : 8W
Lumens : 800-1000lm
Beam Angle : 30D/60D/90D
CCT : 2700K-5000K

Features

  • Constant voltage 24VDC low-voltage centralized power supply improves safety and reduces single lamp spare parts.
  • The simplified retrofit installation can be used in both new and existing spaces.
  • IC Airtight for use with direct contact to insulation.
  • Beam Angle: 15/24/36 Degrees.
  • Life Rated for 50,000 hours at 70% lumen maintenance.
  • Easy installation for new construction and remodel applications.
  • Height allows for use in ceilings with under 3″ depth.Ceiling thickness can be reduced from fixture depth.
  • Can be integrated control, the number of fixture connecting depending on the on power used.
  • Round and square shape option.

Specification

– Source: LED COB Chips.

– Lumen maintenance: 50,000 hours L70 based on LM80 standardized test results.

– Optics: PC Lens for even lumen distribution.

– Material: Die-cast aluminum construction for lasting quality.

– Mounting: New construction installation or remodel installation

– Electrical: High efficiency electronic driver, rated at 50 000 hours

– Heat dissipation: Superior Thermal Management by utilizing aluminum body as heat sink.

– Warranty: 3 year limited warranty.

Electrical Specifications

  • Wide voltage input 120-277VAC, 50/60 Hz, 0-10V dimming, constant voltage or constant current mode.
  • Constant voltage driver 120V-277V input to 12V/24V low pressure output,one lamp with one driver.
  • Integrated power supply optional, easy to replace the power supply.
  • Each luminaire is connected in parallel, one power supply can simultaneously control multiple lamps.
  • The power has UL listed, can be applied to a variety of applications.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.

3 Year Limited Warranty.

Applications

Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting and accent lighting.

Parameter

Voltage DC 24V
Watt 8W
CCT 2700K-6000K/3CCT
Dimmable Dimming
Lumen 800-1000lm
Light Source COB
CRI 90+
Beam Angle 15°/24°/36°
Material Aluminum
Finish White/Black/Silver/Satin Nickel/Brown

Product File Download

# File Added by File size Downloads
1 pdf Eyeball Downlight & Miniature LED Downlight liteharbor 5 MB 348
2 pdf BL2-001 liteharbor 2 MB 142
3 pdf BL2-003 liteharbor 1 MB 145
4 pdf BL2-S001 liteharbor 1 MB 135
5 pdf BL2-S003 liteharbor 1 MB 142
