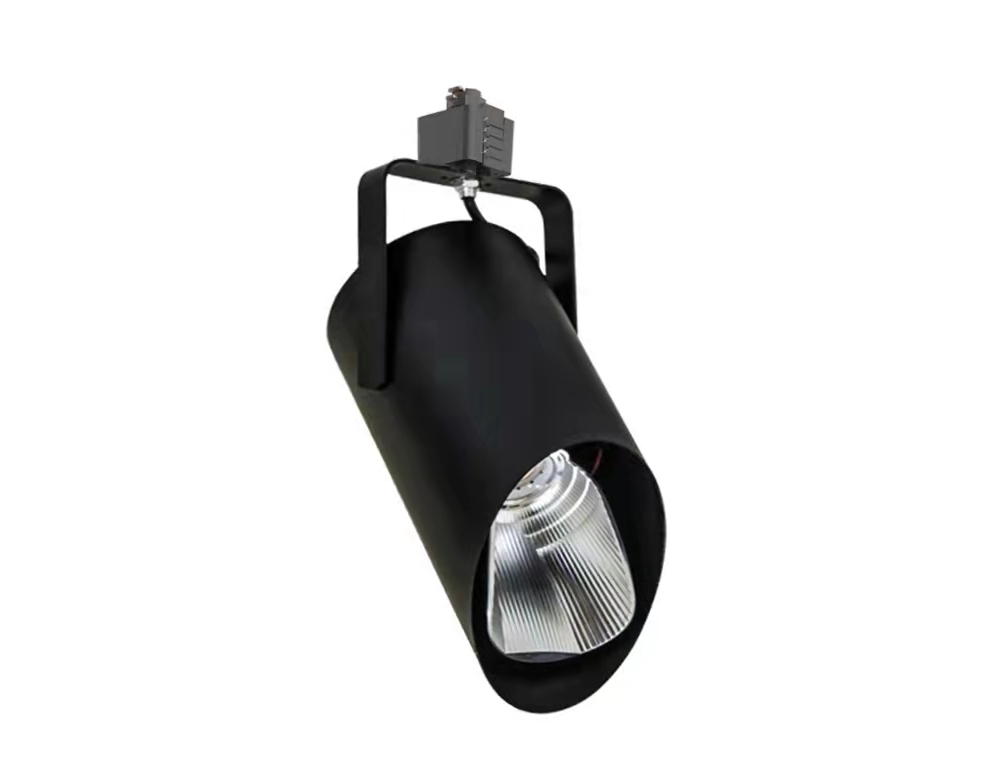

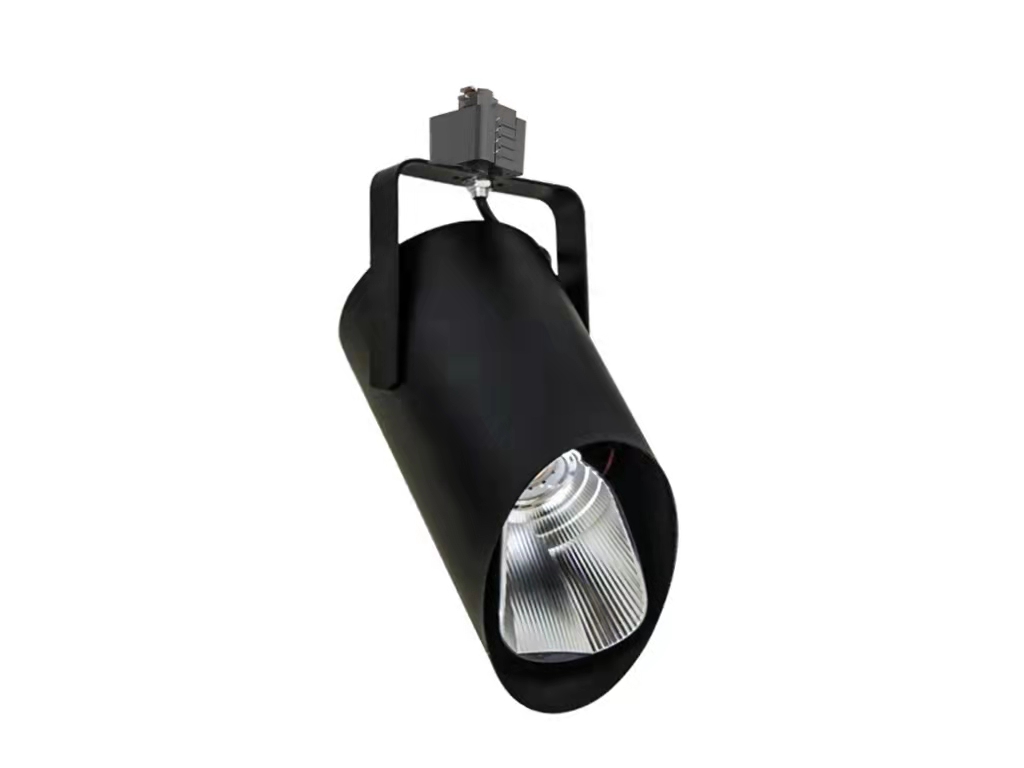

20W J/H/L Type Track System 3CCT COB LED Track Light K5063 Gallery Lighting
/
/
/
/
20W J/H/L Type Track System 3CCT COB LED Track Light K5063 Gallery Lighting

20W J/H/L Type Track System 3CCT COB LED Track Light K5063 Gallery Lighting

ITEM No.:K5063

Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage :20W
Lumen : 100lm/W

DESCRIPTION

The Wall Wash Series features an asymmetrical reflector that provides even field of illumination. This distribution of light from ceiling to floor hides imperfections in the wall and smoothly eliminates shadows, adding a feeling of depth to any room.50,000 hrs average rated life.



LED Light Engine
• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink

• Multiple connectors can share a lamp body

• 3 color temperature selectable, convenient inventory and cost savings

• 50,000 hrs average rated life



Electrical System

Trailing edge (ELV): 120V / 277V

Leading edge (Triac): 120V only

0-10V: 120V only (ControlTrac), 120-277V otherwise

IP (Integral Pot) dimming available

Lutron ecosystem premier driver available, featuring dimming to 0.1% and soft on/soft off incandescent like dimming.

Only available on fixtures 20 watts or less.

Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming
Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%

 Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

Material Die cast aluminum
Input Voltage 120/277V
Wattage 10W/15W/20W
CCT 2700,3000K,3500K,4000K,5000K,6000K,3CCT
PF >0.98
CRI 80+/90+
Mounting Track Mount



Compatibility
Track luminaire is designed for use with the following track systems:
• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
