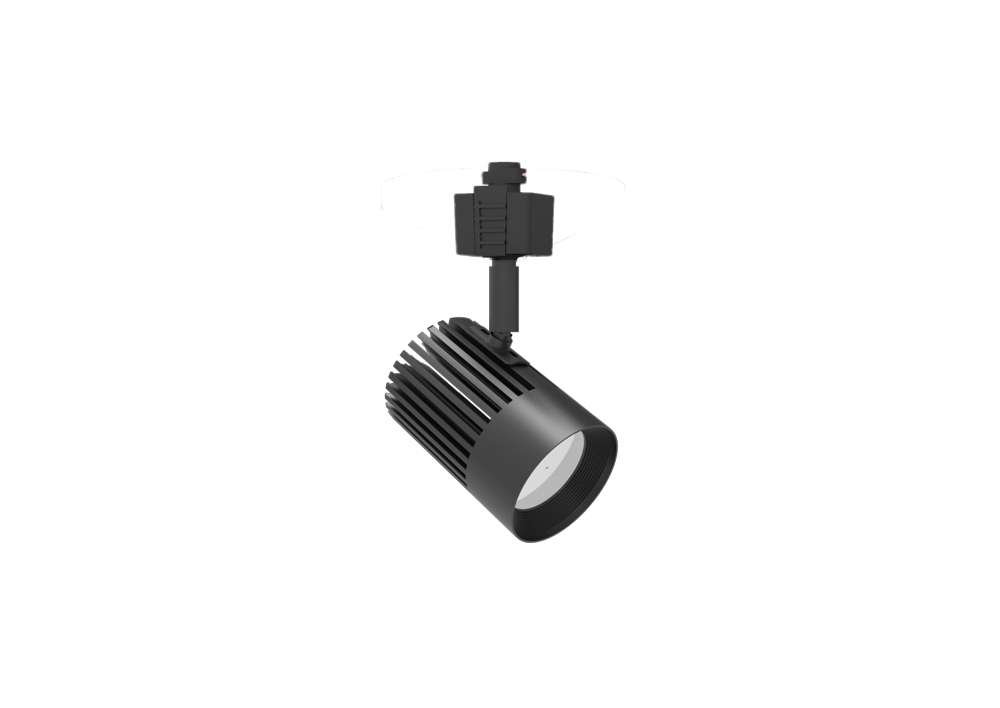

3 Rail System Combined H/J/L Type 45W COB 3CCT LED Track Light Gallery Lighting

LED Light Engine

• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• Multiple connectors can share a lamp body
• 50,000 hrs average rated life

Electrical System

• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming

• Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%
• Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

Compatibility

Track luminaire is designed for use with the following track systems:

• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

DRIVER ON BOX(DOB) Solution

This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.

The main advantages DOB LED luminaires are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.

Material	Die cast aluminum
Input Voltage	120/277v 50/60Hz input
Wattage	8W/10W/12W/15W/20W/25W/30W/35W/40W/45W
CCT	2700,3000K,3500K,4000K,5000K/6000K
PF	>0.98
CRI	80+/90+
Mounting	Track Mount

Mounting

Track mount

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
