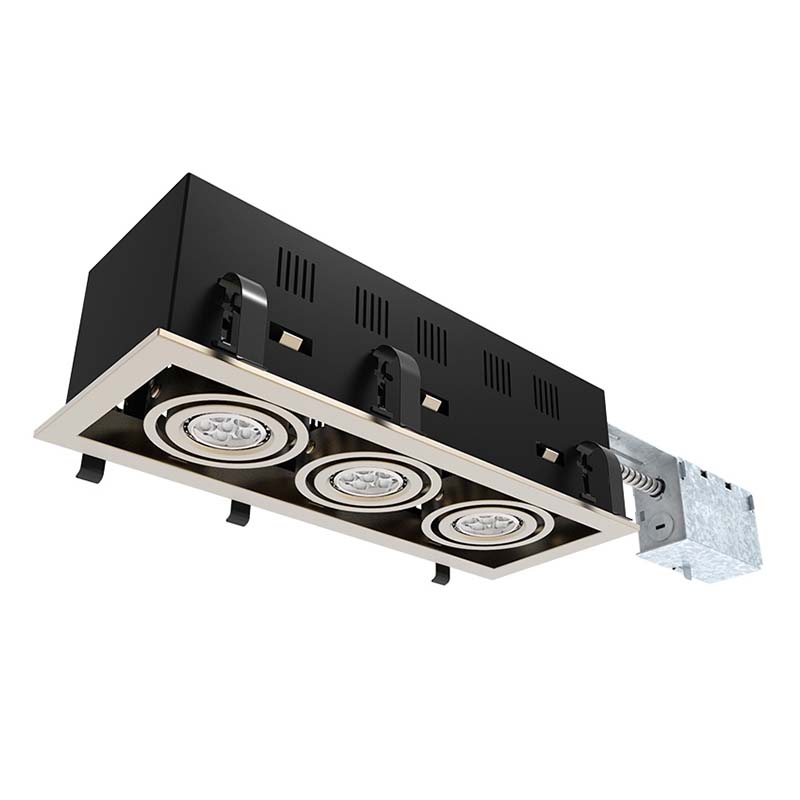

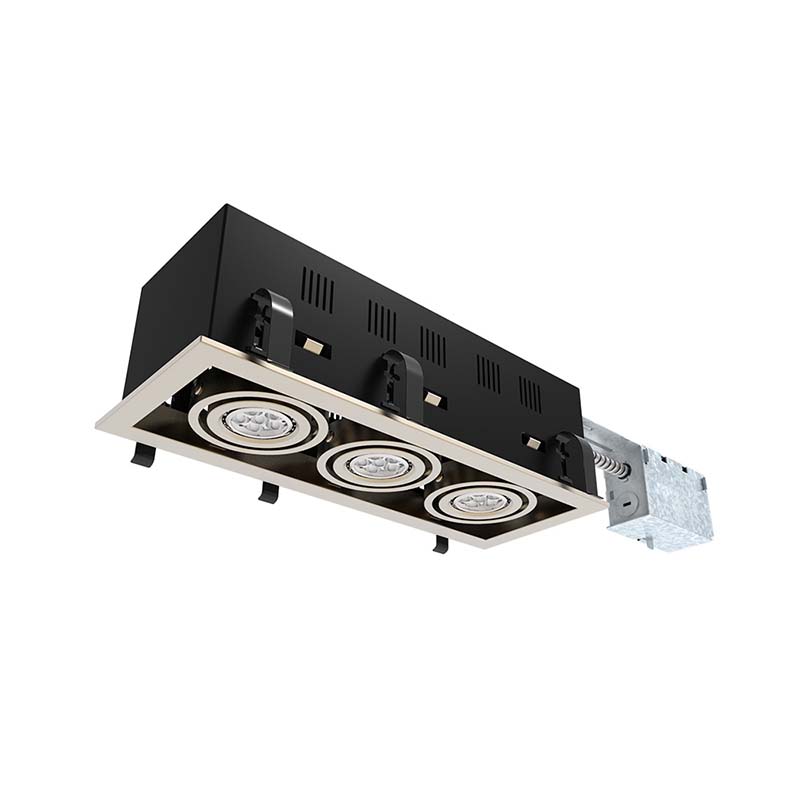

3-Lamp Remodel GU10 Multiple Recessed Downlight Light
ITEM No.: G4013-F-GU10
Series : LED Multiple Downlight
Light Source : LED GU10
Input volt : 120V-277V
CCT : 2800-6000k
Material : Gauge Steel
Description
Mini LED Multiple Spots for remodeling and new construction applications for residential and commercial environments. The Multiple Spots are marketed as complete units including the housing and trim. Available as one, two and three-light configurations, each spot is individually adjustable and provides a 30-degree visual cutoff for glare control.
Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt,360° horizontal rotation
Construction
Trim and housing are constructed of Gauge Steel.
Mounting
Supplied with 4 ways hanger bar, adjustable from 14½”-25″ to accommodate various joist construction and grid sizes. Hanger bars include a captive mounting “screw-nail” for ease installation. Can be accommodate a 1/2″ to 1 1/4″ ceiling thickness.
Light Source
High output GU10 LED
Dimming
Dimmable to 10% with most brand dimmers.
Input Voltage | AC 120V/277V 50/60Hz |
Rated Power | 8W/Lamp |
Luminous Efficiency | 70 LM/W |
Lamp | GU10 |
Socket | GU10 |
Color Temperature | 2800-6000K |
Material | Gauge Steel |
CRI | Ra>80 |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | G401X-F | liteharbor | 322 KB | 288 |
