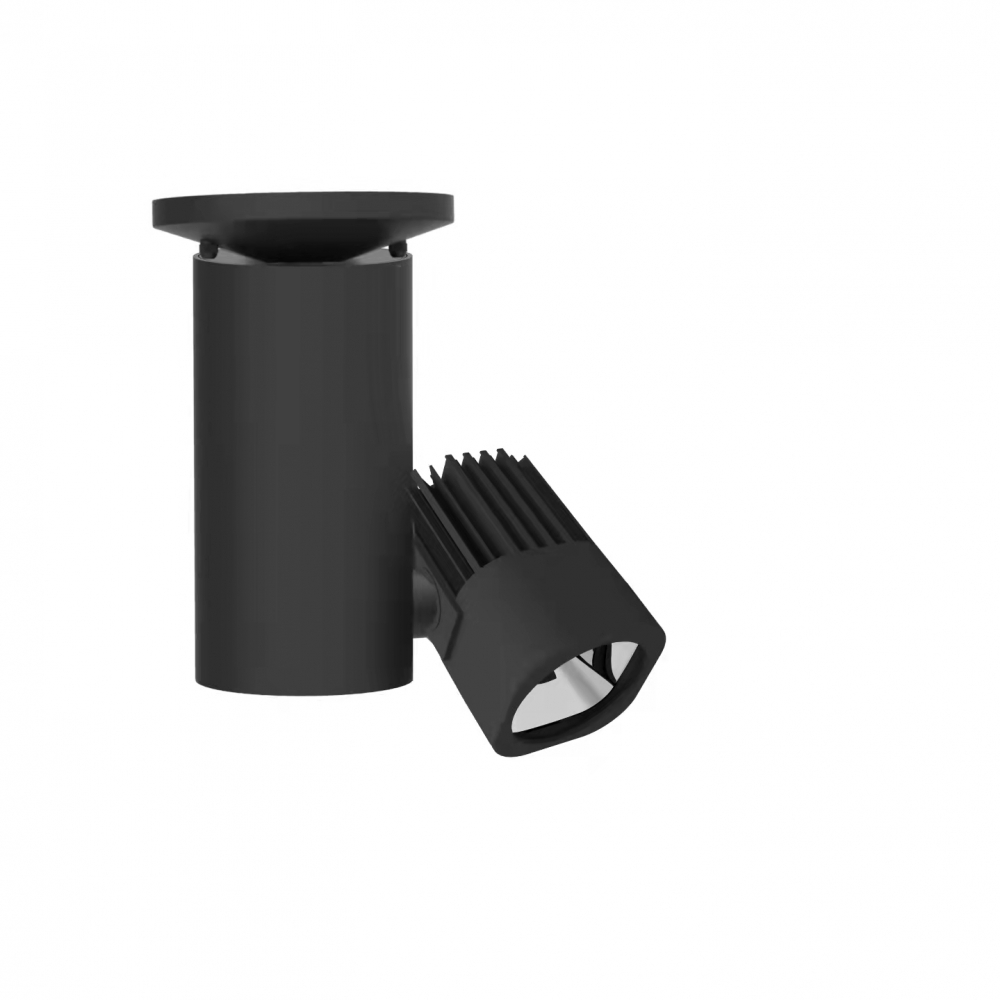

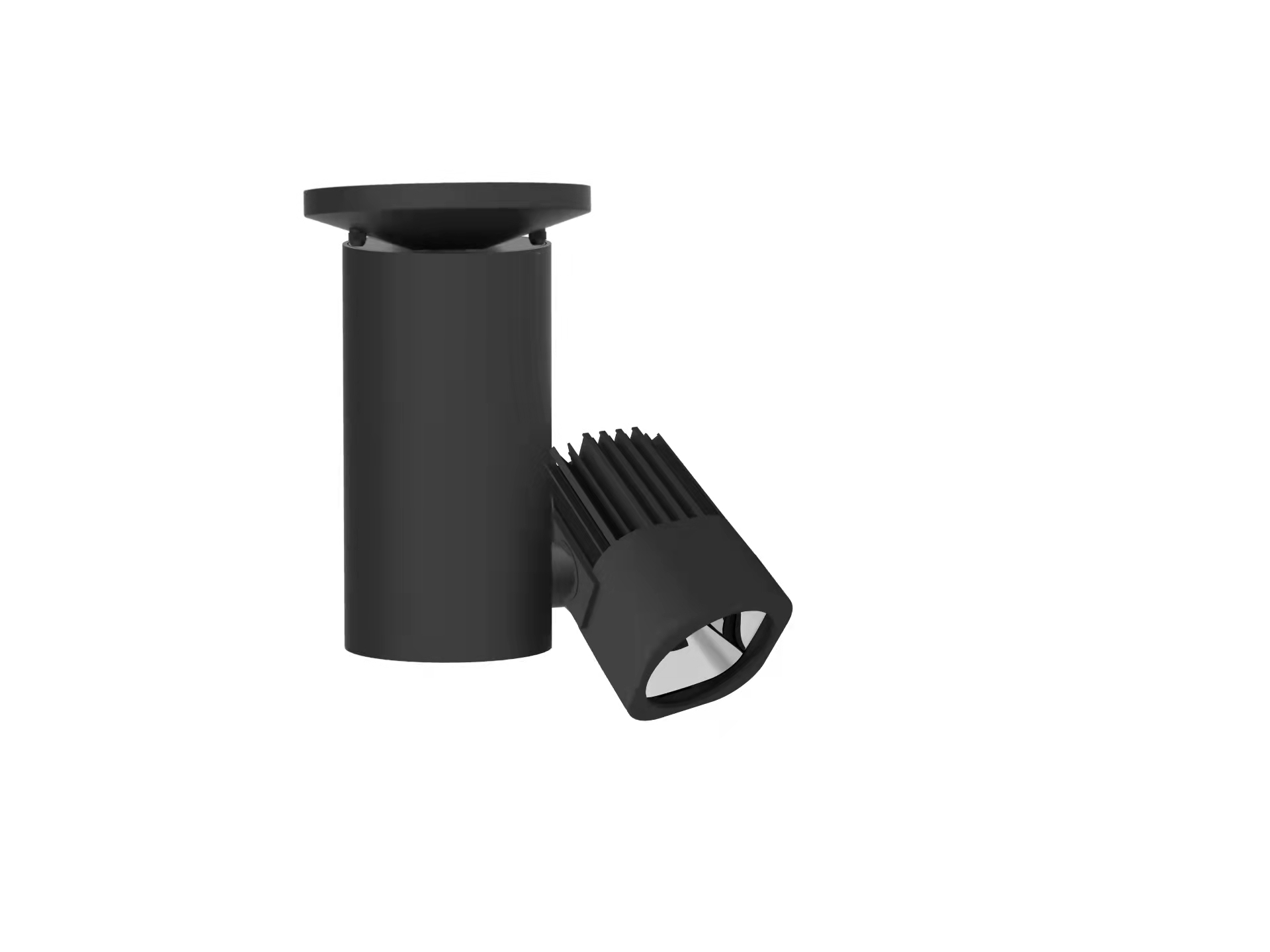

30W Flush Mounted COB 3CCT LED Track Lighting FM3024-S Shop Lighting
ITEM No.： FM3024-S
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 30W Max
Lumen : 100lm/w
LED COB track light WITH CANOPY
LED Light Engine
- Color Temperature 2700K-6000K
- CRI 80+
- 3 Step MacAdam (3 SDMC)
- Passive aluminum heat sink
- 50,000 hrs average rated life
- 3 color temperature selectable, convenient inventory and cost savings
Electrical System
- 120V/277V 50/60Hz input
- Over voltage, over current and short circuit protection: Auto recovery
- MTBF > 100,000 hours
FM3024
Ceiling mounted single head
30 Watt
2550 Lumen
FM3024A
Ceiling mounted single head
32 Watt
2550 Lumen
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
- Track Dimming
- (ELV) reverse phase control dimmers. 120V only.
- Dimmable 100 – 10%
- Canopy Dimming
- ELV Dimming 120V
- 0-10V Dimming 120V or 277V
| Material | Die cast aluminum |
| Input Voltage | 120/277vV |
| Wattage | 20W/25W/30W |
| CCT | 2700,3000K,3500K,4000K,5000K,6000K，3CCT |
| PF | >0.98 |
| CRI | 80+/90+ |
| Mounting | Canopy Mount |
Compatibility
Track luminaire is designed for use with the following track systems:
- Single Circuit/Single Neutral 120V
- Two Circuit/Single Neutral 120V (No Dimming)
- Two Circuit / Two Neutral 120V
- Two Circuit / Two Neutral 277V
Mounting
Mounts to a standard 4” square or octagon junction box
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
