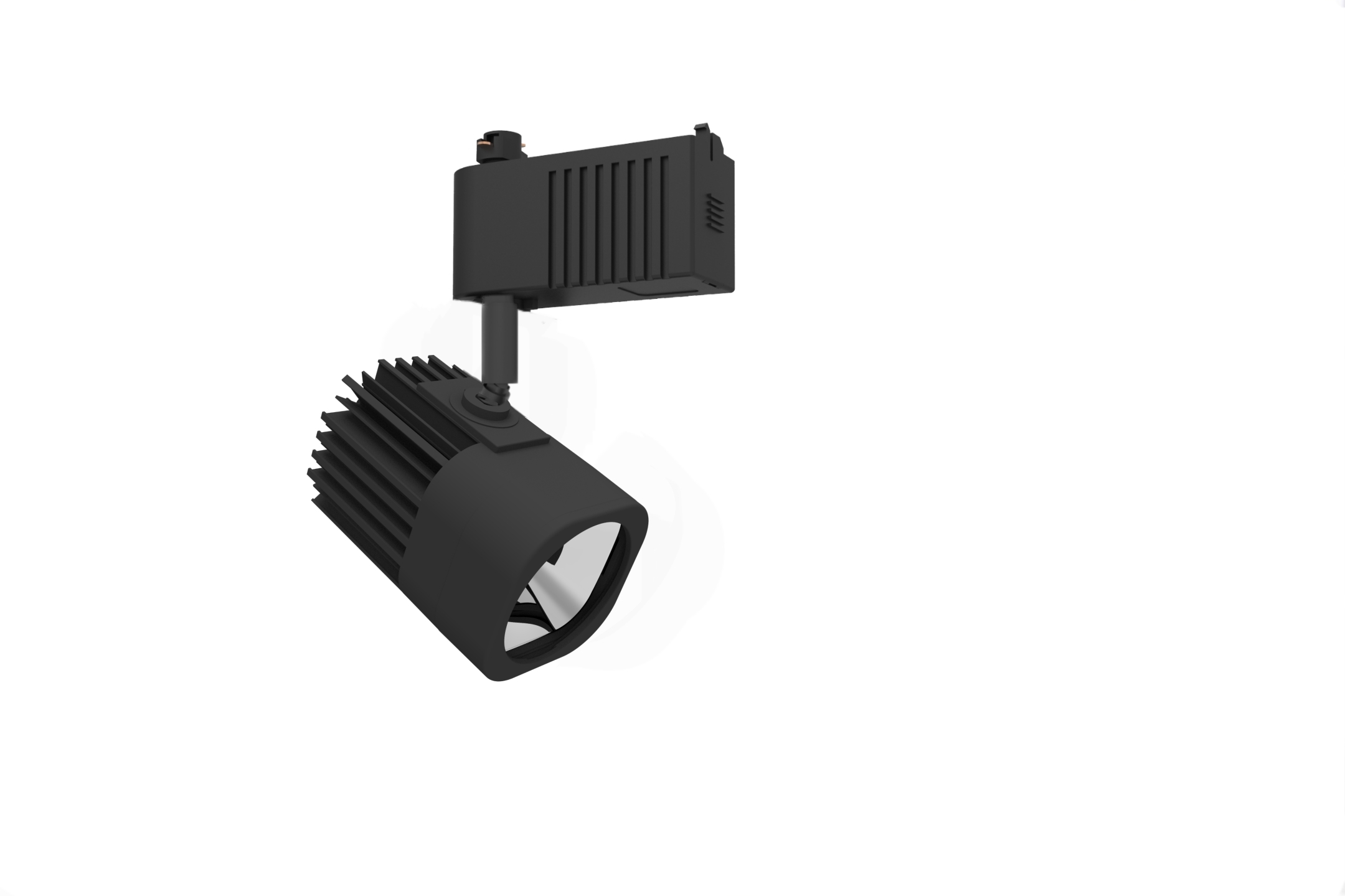

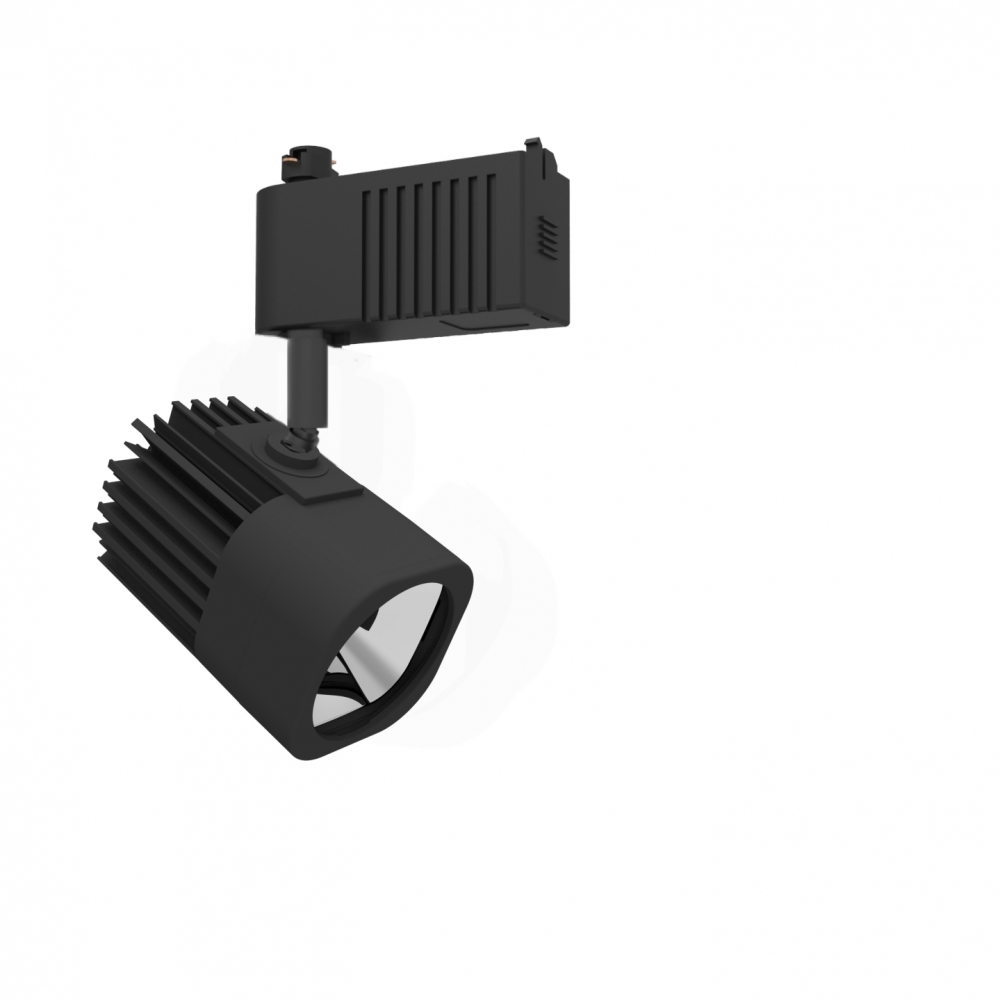

30W Low Volt COB LED Track System 3CCT Track Light Kitchen Lighting
/
/
/
/
30W Low Volt COB LED Track System 3CCT Track Light Kitchen Lighting

30W Low Volt COB LED Track System 3CCT Track Light Kitchen Lighting

ITEM No.:K3023-SM2

Series : LED Track Light
Light Source : COB LED
Input volt : 24V
Wattage : 30W Max
Lumen : 100 lm/W

Feature

Centrally powered driver 120V input at the light source becomes the output 24V power lamp beads. Low-voltage centralized power supply

improves safety and reduces single lamp spare parts.

The structure of the track lights is compact and the appearance is simple and generous.

24W max per lamp(track bar can be customized as required).

The lighting has a wide range of adjustments, the vertical tunability is up to 90 degrees. It

provides good light output, high efficiency and energy saving, and can be suitable for various lighting places.

Long life, low electromagnetic interference, low energy consumption, high performance and provides short circuit and over current protection.

Dimming: Non-Dimming/DMX512 Dimming without flicker.

3 color temperature selectable, convenient inventory and cost savings

SPECIFICATIONS

Radiator: Using cold forging radiator, fast heat dissipation, he patented structure of the heat dissipation module, integrated balanced conduction convection, radiation heat, to ensure long product life.

Lens: Professional optical grade PMMA lens, a variety of beam angles (narrow 10°, medium 20°, wide 30°) are available, and other beam angles are available.

Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.

Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming

  • 24V Not Dimming
  • DMX512 Dimming



Material Die cast aluminum
Input Voltage 24V
Wattage 10W/15W/20W/25W/30W
CCT 2700,3000K,3500K,4000K,5000K,6000K,3CCT
PF >0.98
CRI 80+/90+
Mounting Track Mount

Mounting

Track mount

Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
