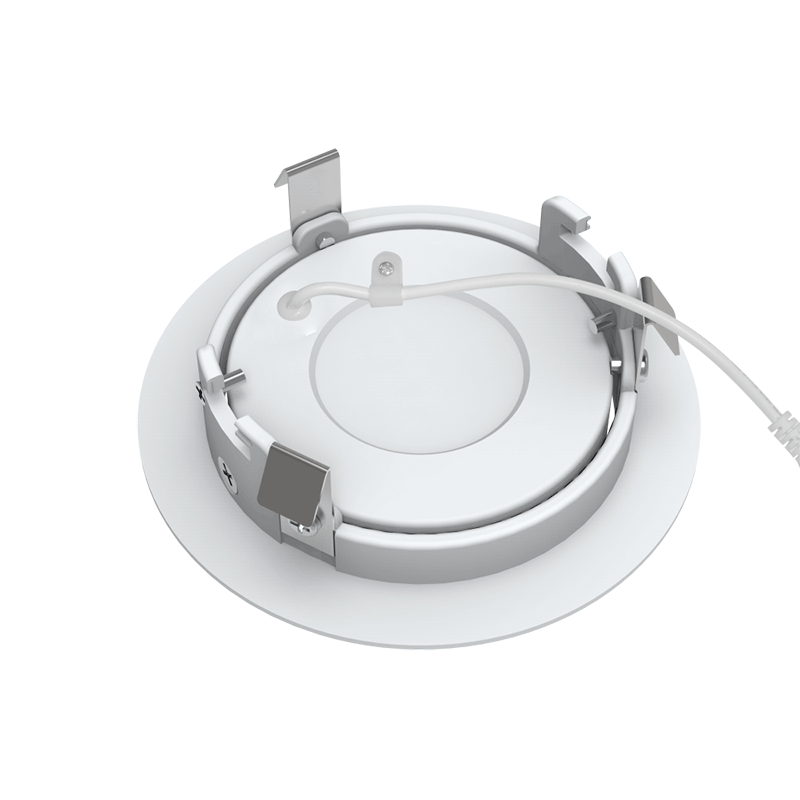

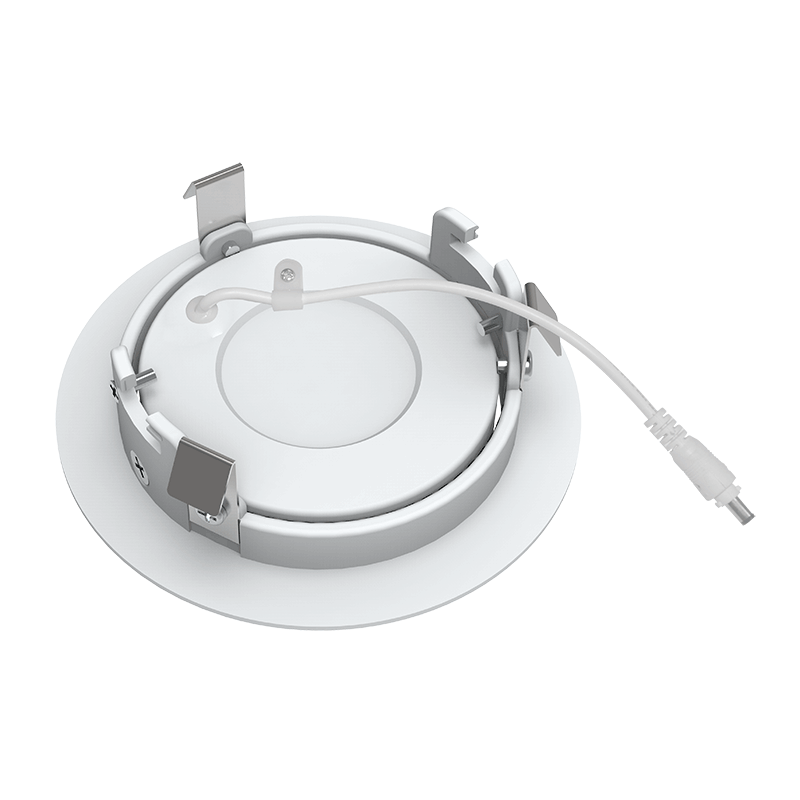

4″ New Construction Ultra Slim Gimbal LED Recessed Panel Light
ITEM No.: BL4-007-NC
Size: 4 Inch
Wattage: 8W
Depth: 1/2“
CCT: 2700K-6000K
Dimmable: YES
Listing: ETL listed
Description
This ultra thin recessed LED Panel is absolutely perfect for tight spaces, soffits and insulated and dropped ceilings.
Recessed 4″ gimbal LED panle with integral driver in connection box. Fits where no other recessed fixture can.
This LED is 8 watts and replaces a 50 watt halogen.
Save up to 80% energy for same light output.
The thin Panel profile with spring clips allows for quick and easy installation. Ideal for confined spaces and suitable for damp locations.
Features
Available in all 4″ Round openings.
Retrofit or New Construction.
Install Directly Under Joists, Maximum Layout Flexibility.

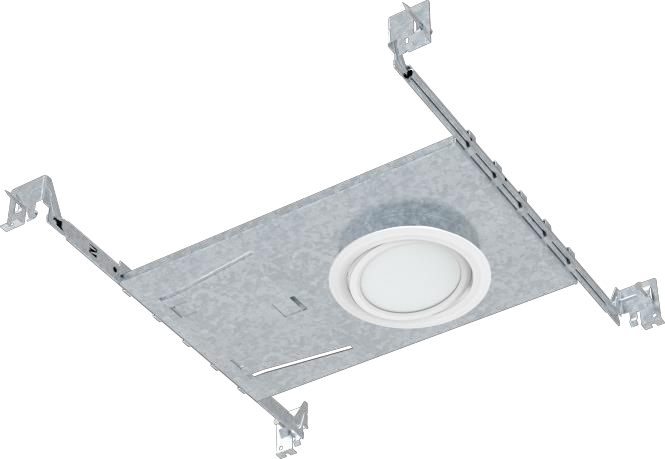

Comes with Junction Box & Driver,No Housing Required.
Fast & Easy To Install.
Mounting
Cut Hole In Ceiling And Snap Fixture In Opening.
With Attached Spring Clips. 2″ Above Ceiling Clearance.
Required For Driver.
Mounting Cut Hole In Ceiling And Snap Fixture In Opening.
Packing
CTN Size:480X305X285mm
Inner Box Size: 145X75X130mm
24PCS/CTN
Please confirm the specification and price with our factory!
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BL4-007 BL4-007-NC
|
liteharbor | 814 KB | 438 |
| 2 |
Slim panel
|
liteharbor | 3 MB | 311 |
