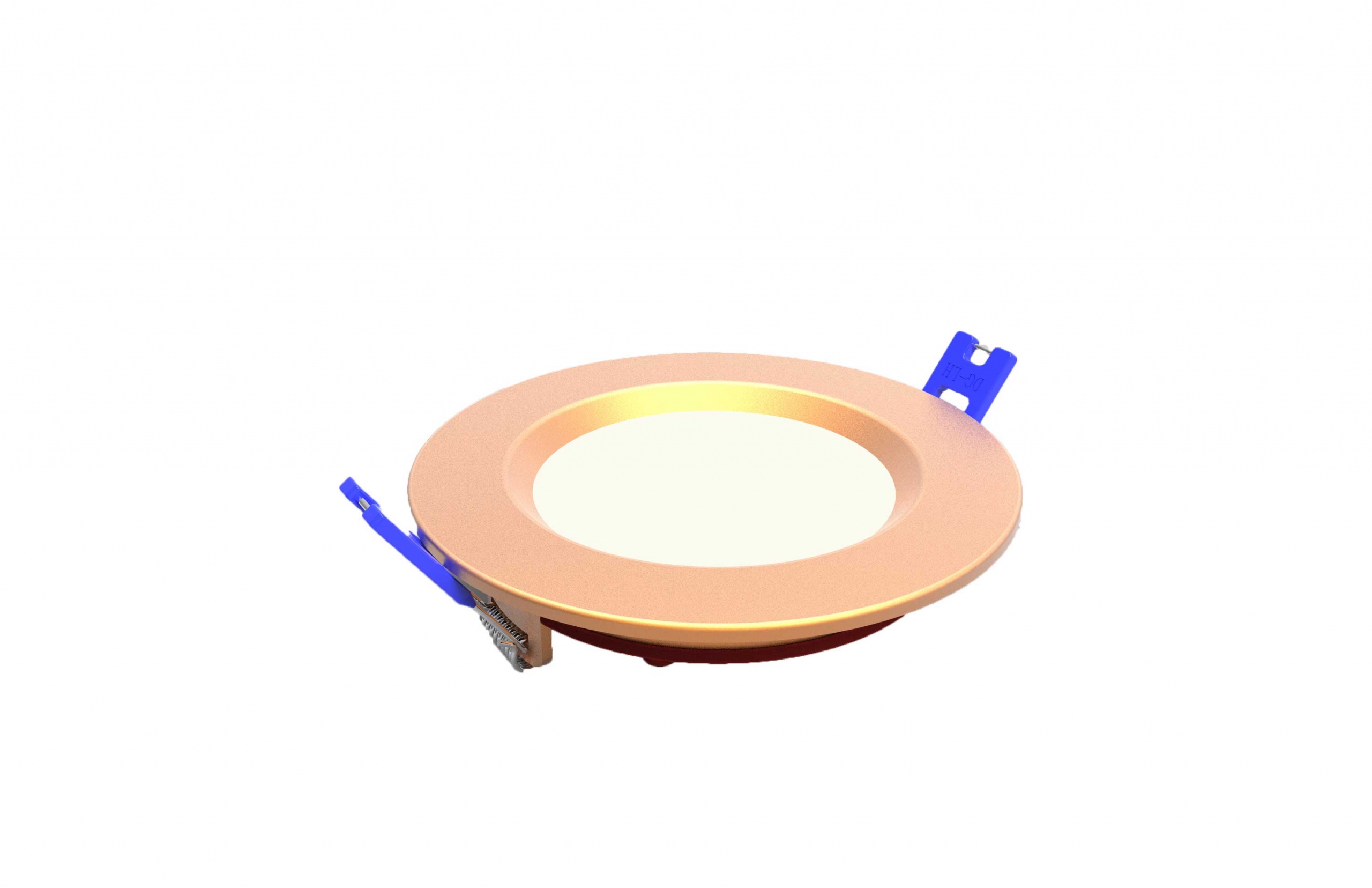

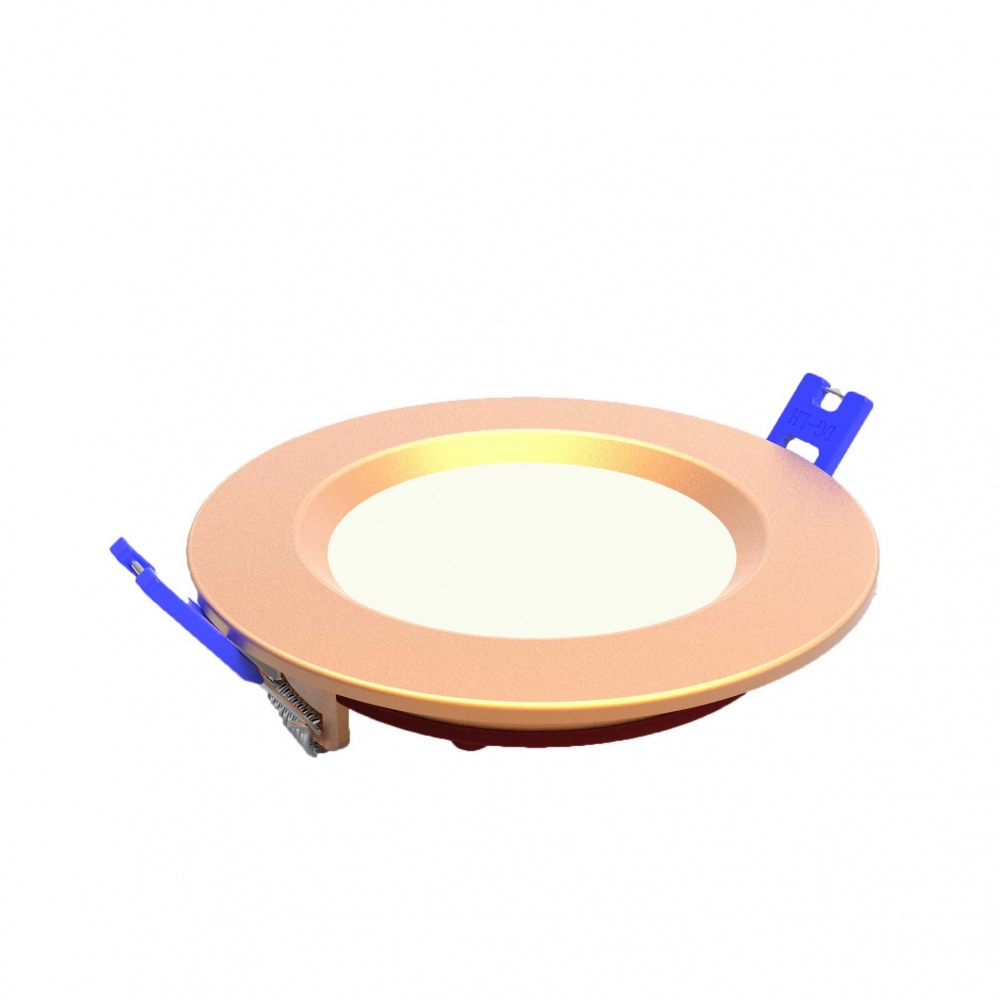

4″ POE Lighting Fire Rated 3CCT LED Concave Slim Panel Light

DESCRIPTION

The concave lens design of Liteharbor Mars Light series creates muted illumination to enhance residential or commercial spaces without sacrificing brightness. With 2 Hour Fire Resistance to meet and exceed strict fire safety codes with only 1/2” clearance, this ultra thin recessed LED Panel is absolutely perfect for tight spaces, soffits and insulated and dropped ceilings. This LED is 9 watts and replaces a 45 watt halogen Save up to 80% energy for same light output.The thin Panel profile with spring clips allows for quick and easy installation. Ideal for confined spaces and suitable for damp locations.

FEATURES

• PoE scheme or LED quick connector provided.
• Available in all 4″ round openings.
• Retrofit or New Construction.
• 1/2″ Thin – Install Directly Under Joists, Maximum Layout Flexibility.
• Robust, durable and lightweight.
• 3CCT range changeablen,3000K, 4000K and 5000K ,convenient inventory and cost savings.

• No Flickering, noise or RF interference
• Easy to install to suspended ceiling grids
• No UV, IR or Mercury
• Anti-glare

SPECIFICATION

DESCRIPTION

BL-302A-F

BL-302B-F

BL-302-F

Wattage

9W

9W

Luminosity

900lm

900lm

Luminous Flux

700lm

700lm

Lumens / Watt

100lm/w

100lm/w

CRI

90+

90+

Colour Temperature

3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K)

3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K)

Driver Input

24V

120V AC or 120V-277V AC 50/60 Hz

Power Factor

–

0.98

Dimming

RGB+W / Tunable White

TRIAC Dimmers 10%-100% (120V only)

Location

Insulated Ceiling & Damp Locations

Insulated Ceiling & Damp Locations

Finish

White,Black,Satin Nickel

White,Black,Satin Nickel

Dimensions

∅4.72”* H 1.29”

∅4.72”* H 1.15”

Wire

Cat5/Cat6

FT4/FT6

Working Temperature

-20°C to +60°C

-20°C to +60°C

Working Humidity

10% – 70%

10% – 70%

IP Rating

20

20

Input Current

–

0.7A

Output Current

–

360mA

Power Efficiency

>90%

>90%

UGR

<18

<18

Beam Angle

120°

120°

THD

<20%

<20%

Installation

Recessed Ceiling Mount

Recessed Ceiling Mount

Lifespan

50,000 Hours at 70% Light Output

50,000 Hours at 70% Light Output

Executive Standard

ETL/ENERGY STAR

ETL/ENERGY STAR

Warranty

3 Year Limited for Fixture & Driver

3 Year Limited for Fixture & Driver



MOUNTING

Cut hole in ceiling and snap fixture in opening with attached spring clips. 2″ above ceiling clearance required for driver.

APPLICATIONS

• hospitality
• Retail
• Kitchens
• hotels
• Museum
• indoor / outdoor residential,
• offices
• Commercial
• shopping mall stores

LISTING / WARRANTY

• ETL to US and Canadian standards for damp location W/Feed through.
• 3 Year Limited Warranty.
