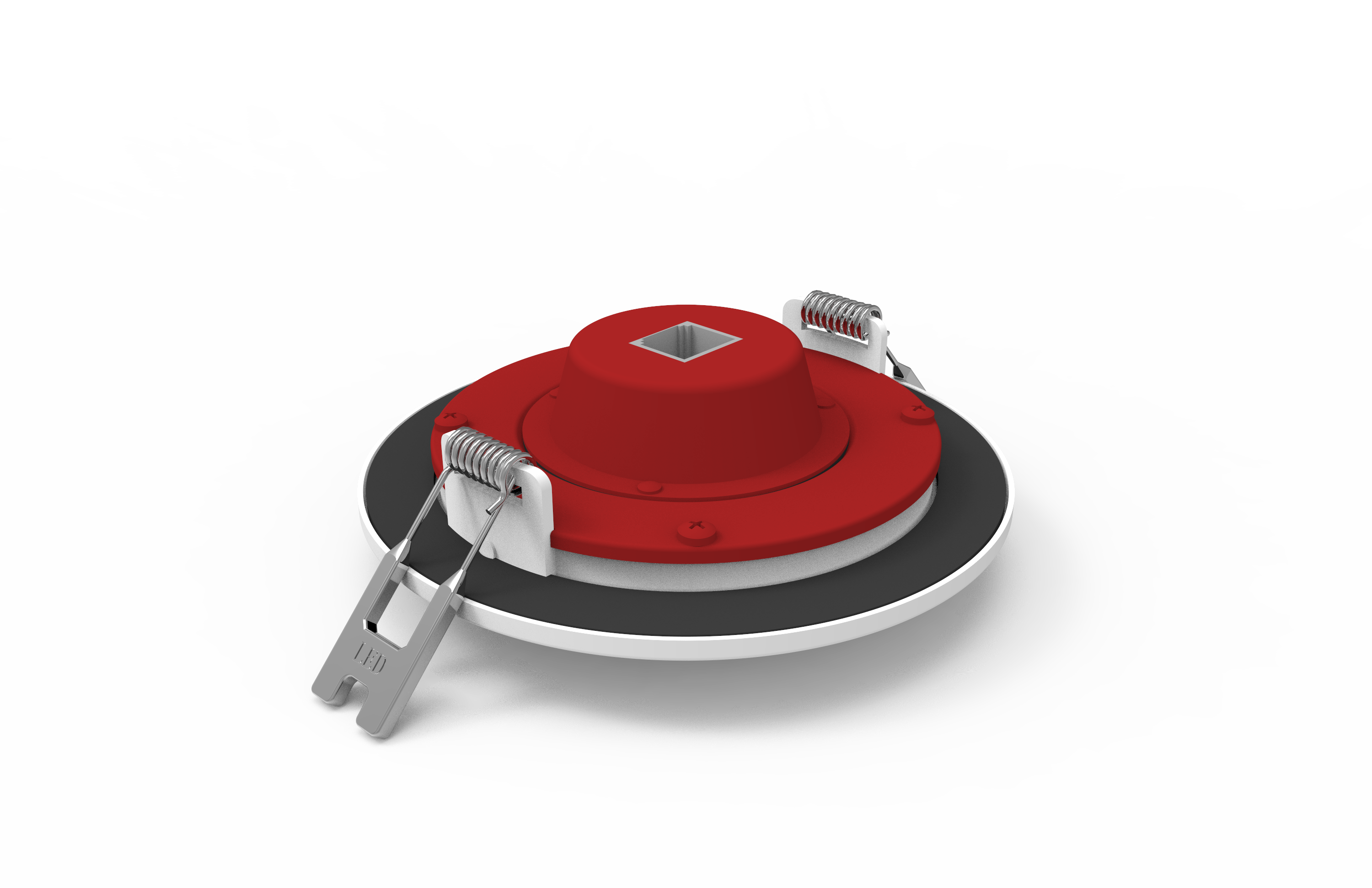

4″ POE Lighting Fire Rated 3CCT LED Slim Panel Light

DESCRIPTION

Liteharbor Mars Light series with 2 Hour Fire Resistance to meet and exceed strict fire safety codes with only 1/2” clearance, this ultra thin recessed LED Panel is absolutely perfect for tight spaces, soffits and insulated and dropped ceilings. This LED is 9 watts and replaces a 45 watt halogen Save up to 80% energy for same light output.The thin Panel profile with spring clips allows for quick and easy installation. Ideal for confined spaces and suitable for damp locations.

FEATURES

• PoE scheme or LED quick connector provided.
• Available in all 4″ round openings.
• Retrofit or New Construction.
• 1/2″ Thin – Install Directly Under Joists, Maximum Layout Flexibility.
• Robust, durable and lightweight.
• 3CCT range changeablen,3000K, 4000K and 5000K ,convenient inventory and cost savings.

• No Flickering, noise or RF interference
• Easy to install to suspended ceiling grids
• No UV, IR or Mercury
• Anti-glare

SPECIFICATION

DESCRIPTION

BL-301A-F

BL-301B-F

BL-301-F

Wattage

9W

9W

Luminosity

900lm

900lm

Luminous Flux

700lm

700lm

Lumens / Watt

100lm/w

100lm/w

CRI

90+

90+

Colour Temperature

3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K)

3000K, 4000K, 6500K/3CCT(3000K-4000K-5000K)

Driver Input

24V

120V AC or 120V-277V AC 50/60 Hz

Power Factor

–

0.98

Dimming

RGB+W / Tunable White

TRIAC Dimmers 10%-100% (120V only)

Location

Insulated Ceiling & Damp Locations

Insulated Ceiling & Damp Locations

Finish

White,Black,Satin Nickel

White,Black,Satin Nickel

Dimensions

∅4.72”* H 1.29”

∅4.72”* H 1.15”

Wire

Cat5/Cat6

FT4/FT6

Working Temperature

-20°C to +60°C

-20°C to +60°C

Working Humidity

10% – 70%

10% – 70%

IP Rating

20

20

Input Current

–

0.7A

Output Current

–

360mA

Power Efficiency

>90%

>90%

UGR

<18

<18

Beam Angle

120°

120°

THD

<20%

<20%

Installation

Recessed Ceiling Mount

Recessed Ceiling Mount

Lifespan

50,000 Hours at 70% Light Output

50,000 Hours at 70% Light Output

Executive Standard

ETL/ENERGY STAR

ETL/ENERGY STAR

Warranty

3 Year Limited for Fixture & Driver

3 Year Limited for Fixture & Driver



MOUNTING

Cut hole in ceiling and snap fixture in opening with attached spring clips. 2″ above ceiling clearance required for driver.

APPLICATIONS

• hospitality
• Retail
• Kitchens
• hotels
• Museum
• indoor / outdoor residential,
• offices
• Commercial
• shopping mall stores

LISTING / WARRANTY

• ETL to US and Canadian standards for damp location W/Feed through.
• 3 Year Limited Warranty.
