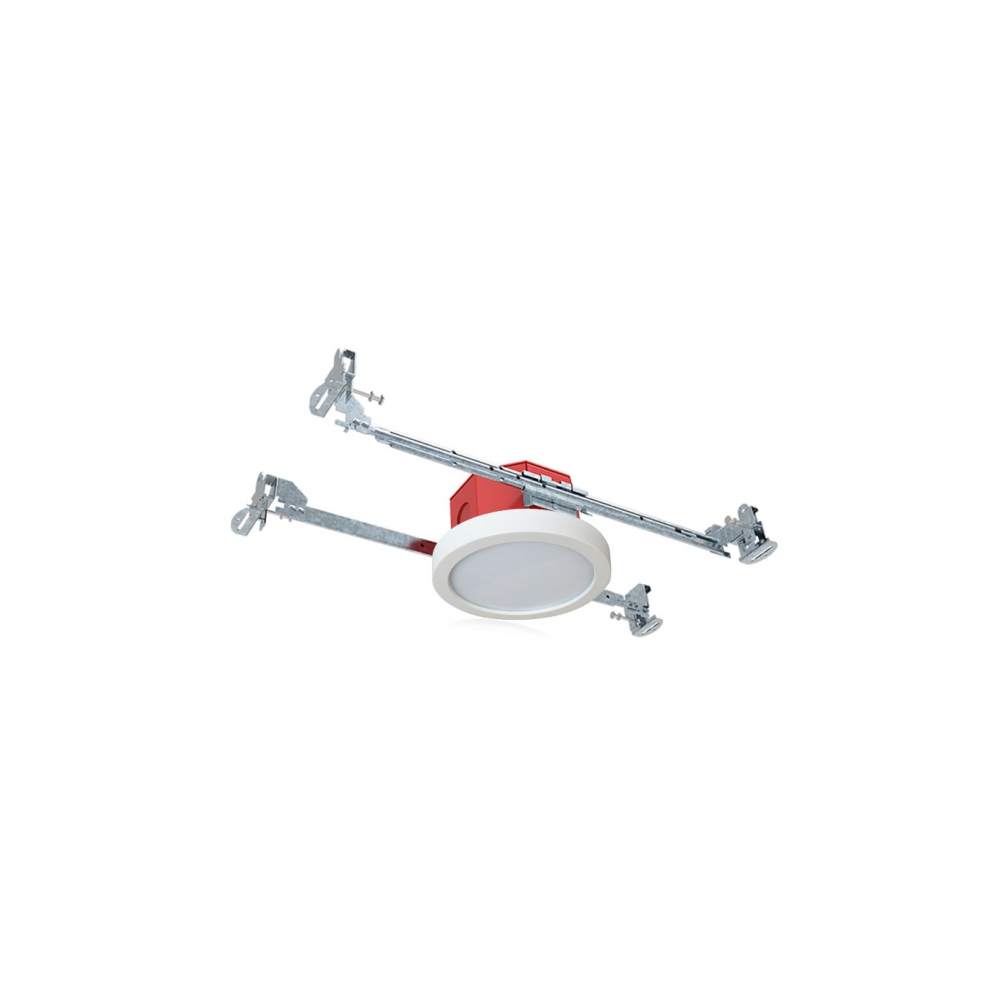

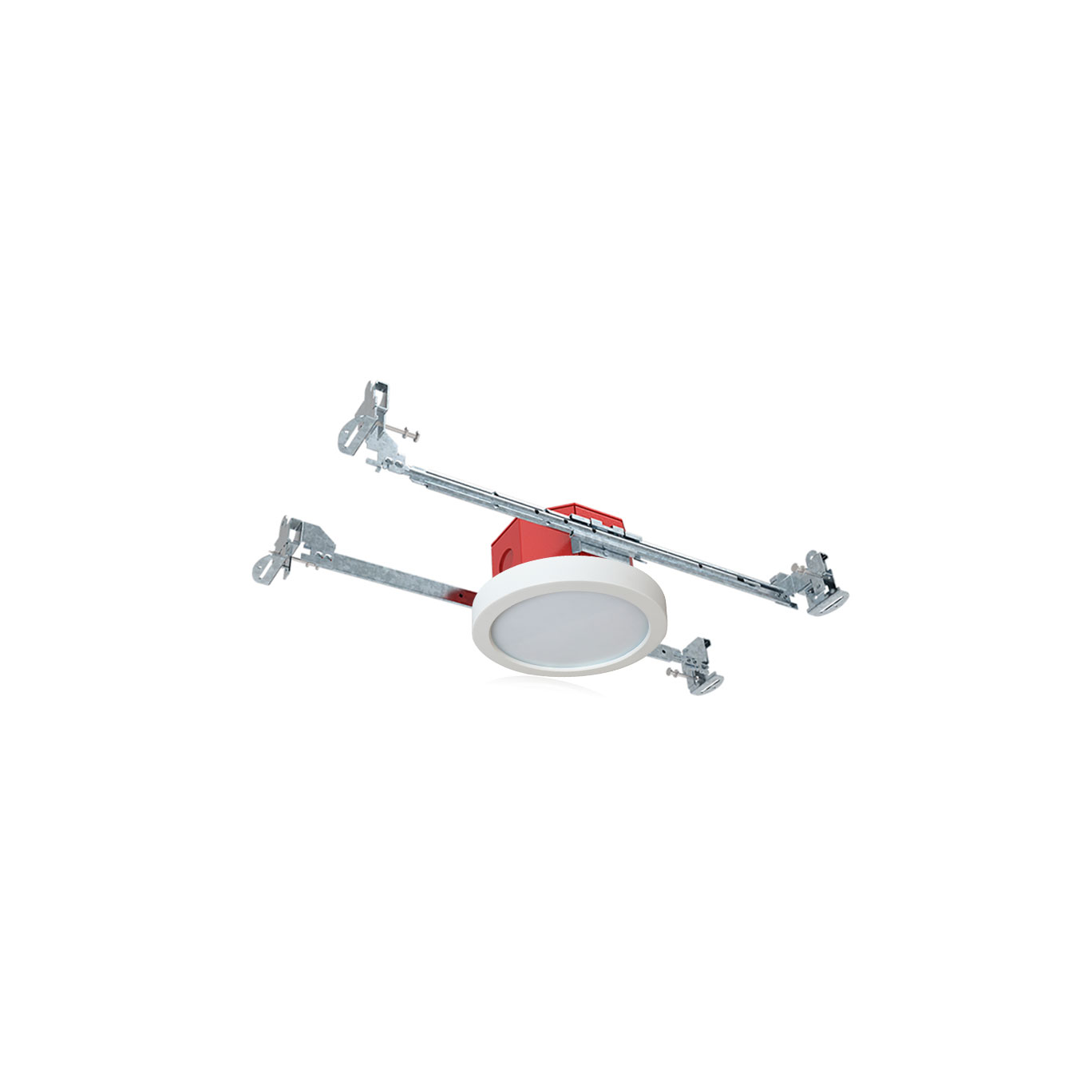

6″ Fire Rated Ceiling light Round Ceiling Light 3CCT Surface Mount With Octagon Housing

2 HOURS 6” FIRE RATED CEILING LIGHT



PRODUCT SPECIFICATIONS – Octagon Housing

• 2 Hour Fire Resistance to meet and exceed strict fire safety codes.

• Rated for direct contact with IC insulation.
• ETL Certificates ASTM E283 certified Air Tight.
• Die formed #16 gauge galvanized steelconstruction, Up to 120 minutes fire rated L500 (floor-ceiling) & P500 (roof-ceiling) design.

HANGER BARS

Pre-installed #21 gauge adjustable bar hangers (14”-24”) for wood joist or t-bar ceiling installations.

PRODUCT SPECIFICATIONS – TRIM

An architecturally pleasing, easy to install and low profile slim LED instant mount round and square aperture downlighting. Slim line, light weight and slook look, provides more A Series uniform light and an instant on. It is a low profile downlight intended for ceiling or wall mount applications. This luminaire offers the appearance of a recessed B Input Voltage downlight but is actually surface mounted.

LED LIGHT ENGINE

• LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life.

• 3CCT range changeablen,3000K, 4000K and 5000K operated at reduced output for high efficacy and lumen maintenance.

• 2700K, 3000K, 3500K, and 4000K with 80+ CRI standard; other color temperatures and 90+ CRI available upon request.



LED DRIVER

• Choice of dedicated 120 volt (120) driver AC at 50/60Hz.
• Power factor > 0.9 at 120V input.
• 120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers.
• External driver on 5″ and 7″ models only.
• For a list of compatible dimmers.

APPLICATIONS

Slim LED Flush Mount Downlight is characterized by a completely flat lens with a narrow flange, giving it an architecturally pleasing look. This downlighting solution offers an affordable alternative to Air-Seal IC recessed housings or Fire-Rated boxes, reducing material and installation costs.Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail. Especially in areas with limited ventilation, such as closets and utility rooms.

INSTALLATION

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,and Laminated Beams.

Integral T-bar slots for easy installation in T-Bars. Spans up 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

LISTING/WARRANTY

• ETL listed to US and Canadian standards for damp location W/Feed through. IC rated, Airtight ASTM-E283 Certified, UL 263 certificated up to 2 hour fire rated.

• 3 Year Limited Warranty.
