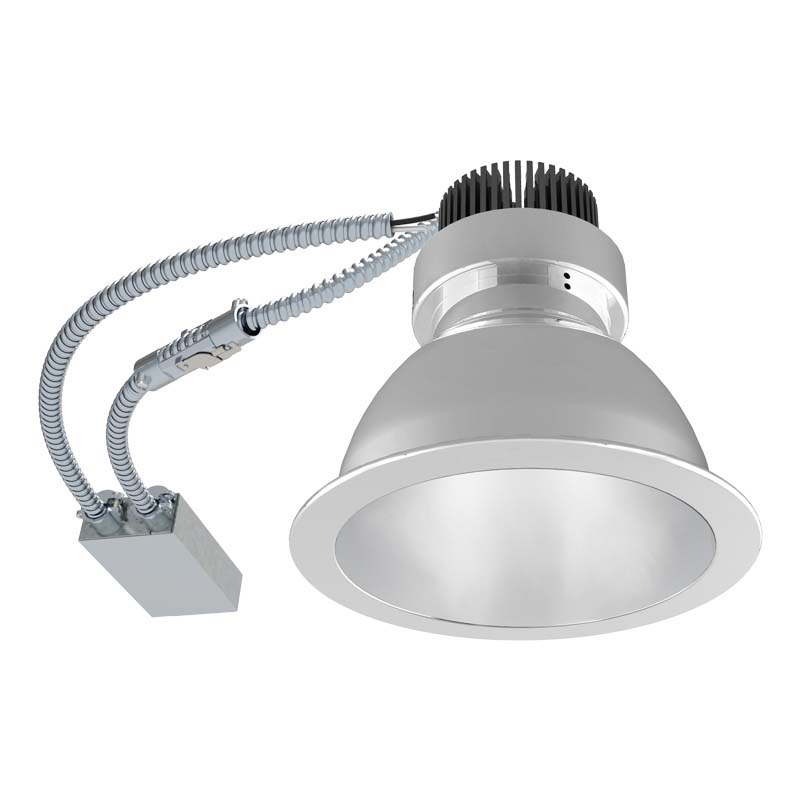

Shop Lighting 8″ Architectural Retrofit LED Downlight

Description
Lighting is smooth and comfortable while using 50% less energy than the common 26W CFL downlight.
Eco-friendly no lead or mercury
Designed to install into an existing downlights mounting frame and convert them into energy efficient led downlights to save anywhere from 35% up to 75% on energy cost.
Idea suited for use in commercial, retail and other architectural applications
Available with dedicated Emergency Battery Back-up

Electrical System

Thermal protection guard protects the LED module
from overheating and will dim LED module if necessary

Clearance
Frames require a minimum clearance of 3” ring from
thermal insulation and 1/2” from adjacent building component.

Mounting
1)Designed to install into an existing downlights mounting
frame and convert them into energy efficient led downlights.
2)Flex is designed to attach into existing junction box.

3)Vertically adjustable universal mounting brackets accept flat

bar hangers, conduit or C channel.

4)The reflector assembly is held in with 4 “butter-fly” spring clips.
5)Reflector assy quickly attaches with lockable quick connect.
Hanger bars ordered separately.
6)Compatible with C-channel, flat bar wood joist bar hanger and EMT

Listing & Warranty
ETL listed to US and Canada standards for wet locations
5-year limited warranty

Product File Download

#	File	Added by	File size	Downloads
1	BL-8001-R	liteharbor	322 KB	249
2	Commercial Luminaires-Version 2020	liteharbor	28 MB	261
