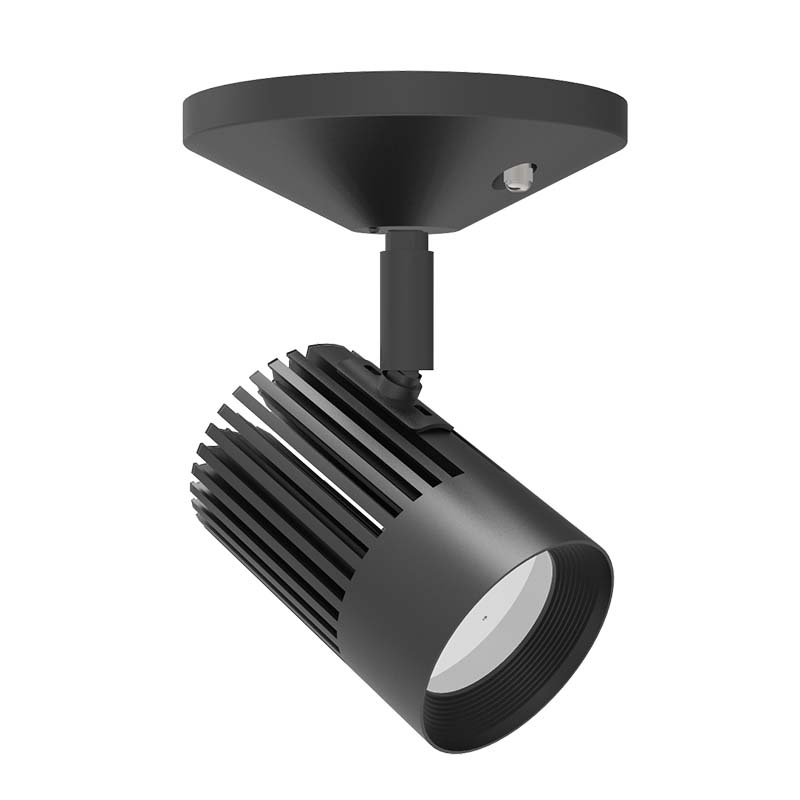

Ceiling/Wall Mount COB 3CCT LED Track Light FM3023M Gallery Lighting
ITEM No.: FM3023M
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 45W
Lumen : 100LM/W
LED COB track light WITH CANOPY
LED Light Engine
- Color Temperature 2700K-6000K
- CRI 80+
- 3 Step MacAdam (3 SDMC)
- Passive aluminum heat sink
- 3 color temperature selectable, convenient inventory and cost savings
- 50,000 hrs average rated life
Electrical System
- 120V/277V 50/60Hz input
- Over voltage, over current and short circuit protection: Auto recovery
- MTBF > 100,000 hours
Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood
Dimming
- Track Dimming
- (ELV) reverse phase control dimmers. 120V only.
- Dimmable 100 – 10%
- Canopy Dimming
- ELV Dimming 120V
- 0-10V Dimming 120V or 277V
HIGH VOLT COB CHIP(WITHOUT DRIVER)
This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.
The main advantages 120V/277V high volt COB chips are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.
Compatibility
Track luminaire is designed for use with the following track systems:
- Single Circuit/Single Neutral 120V
- Two Circuit/Single Neutral 120V (No Dimming)
- Two Circuit / Two Neutral 120V
- Two Circuit / Two Neutral 277V
Material | Die cast aluminum |
Input Voltage | 120/277vV |
Wattage | 20W/25W/30W/35W/40W/45W |
CCT | 2700,3000K,3500K,4000K,5000K,6000K,3CCT |
PF | >0.98 |
CRI | 80+/90+ |
Mounting | Canopy Mount |
Mounting
Mounts to a standard 4” square or octagon junction box
Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty
