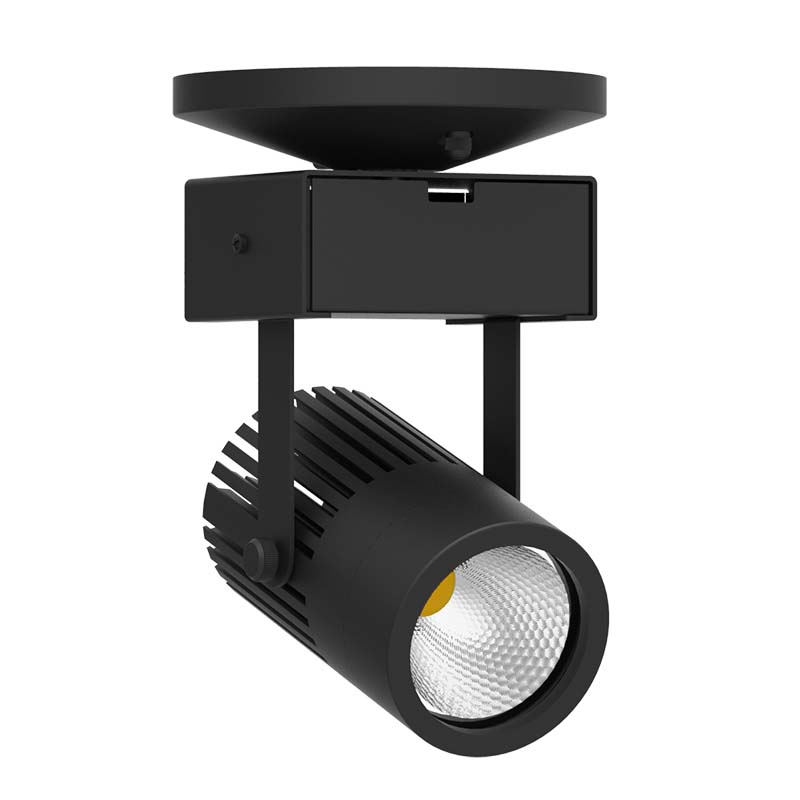

3CCT COB pendant track lighting fixtures FM3024A Gallery Lighting

LED COB track light WITH CANOPY

LED Light Engine

• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• 3 color temperature selectable, convenient inventory and cost savings
• 50,000 hrs average rated life



Electrical System

• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

FM3024

Ceiling mounted single head

30 Watt

2550 Lumen



FM3024A

Ceiling mounted single head

32 Watt

2720 Lumen



Optics

16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood



Dimming

• Track Dimming

• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%



• Canopy Dimming

• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

HIGH VOLT COB CHIP(WITHOUT DRIVER)

This simplifying the design of LED lamp save the shipping costs while expanding the scope of application of a luminaire.

The main advantages 120V/277V high volt COB chips are more reliable, have stable performance, longer service life and better resistance to extreme temperatures.

Material	Die cast aluminum
Input Voltage	120/277vV
Wattage	20W/25W/30W
CCT	2700,3000K,3500K,4000K,5000K,6000K，3CCT
PF	>0.98
CRI	80+/90+
Mounting	Canopy  Mount



Compatibility

Track luminaire is designed for use with the following track systems:

• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V



Mounting

Mounts to a standard 4” square or octagon junction box



Listing & Warranty

ETL Listed to US and Canadian standards for dry locations

5 Years Limited Warranty
