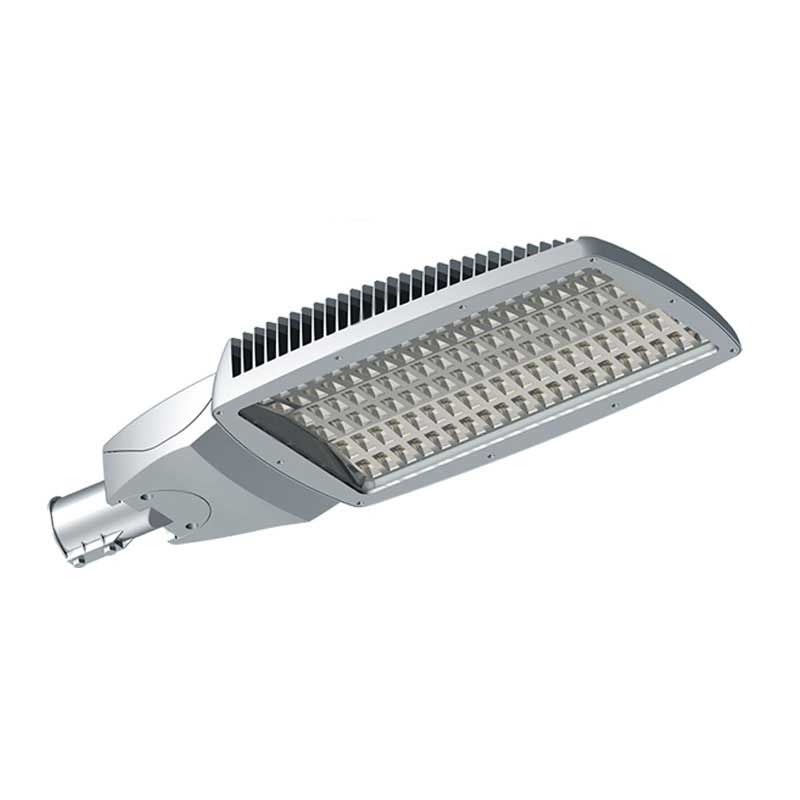

Commercial Led Street Light

Description

Y0801 is a new energy saving and environment protection luminaire designed from considering food lighting requirements and avoiding traditional lighting defects to protect a uniformity.
High efficiency lighting output and good uniformity.
Y0801 has many special charocters including used high power CERR leds, heat super-conduct material designed and intelligent power control and so on. Which make Y0801 show very excellent performance in road lighting and it mainly designed for low power consuming which will be the best choose for your path, garden etc.

Lighting  Effect

 Product Features

1) Streamline configuration combining with LED fittings perfectly
2) Asthentic outlook of the  light is also special landscape for the city light
3) The streamline configuration can also help to shed deposit effectively  and maintain a safe temperature which guarantees low level high depreciation and longer life span.
4) Pressure die-cast aluminum alloy (ADC12) housing guarantees IP65 with high intensity.
5) Bat-wing photometric system accurately delivers rectangle light spot and insures uniform luminance with 40m interval.
6) The heat produced by the luminaire when working is effectively taken away by natural wind flow
7) Independent gear box has an upper cover simply and firmly locked by a rolling bar for easy installation and maintenance.
8)  PC electroplated reflector with 95% efficiency
9) Horizontal or longitudinal arm installation
10) Original CREE leds with high lumen efficiency.

11) High light transmittance and constant color from superior temper glass diffuser.
12) c diver with short protection, open-circuit. Those fans are even designed to be along vehicles driving direction so that wind flow produced by vehicles can takes away the heat effectively and maintains a temperature raising under 23K.

Special gear box

Special gear box an upper cover simply and firmly locked by a rolling bar easy installation and maintenance.

Light distribution curve

LEDS

Input Voltage:AC85-265V
Frequency:47-63Hz
PF>95%
THD<15%

CREE

Luminous Efficiency>95lm/w
Luminaire Efficiency>80%
Working Temperature:-30℃-50℃
Life time>50000h

Wattage	Initial Luminous Flux	Constant Luminous Flux	System Consumption
100*1.5	14250lm	12525lm	170W
120*1.5	17100lm	16390lm	203W
40*2	6400lm	5760lm	90W
60*2	9600lm	8640lm	136W
80*2	12800lm	11520lm	181W
90*2	14400lm	12960lm	203W
