Contrast Lighting UR3D 3-3/4″ 10W Round Downlight Adjustable Trim
/
/
/
Contrast Lighting UR3D 3-3/4″ 10W Round Downlight Adjustable Trim

Contrast Lighting UR3D 3-3/4″ 10W Round Downlight Adjustable Trim

Series:UR3D
ITEM No.:DR3D
Cut Hole Size : 3-3/4″
Watt:10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round

Description

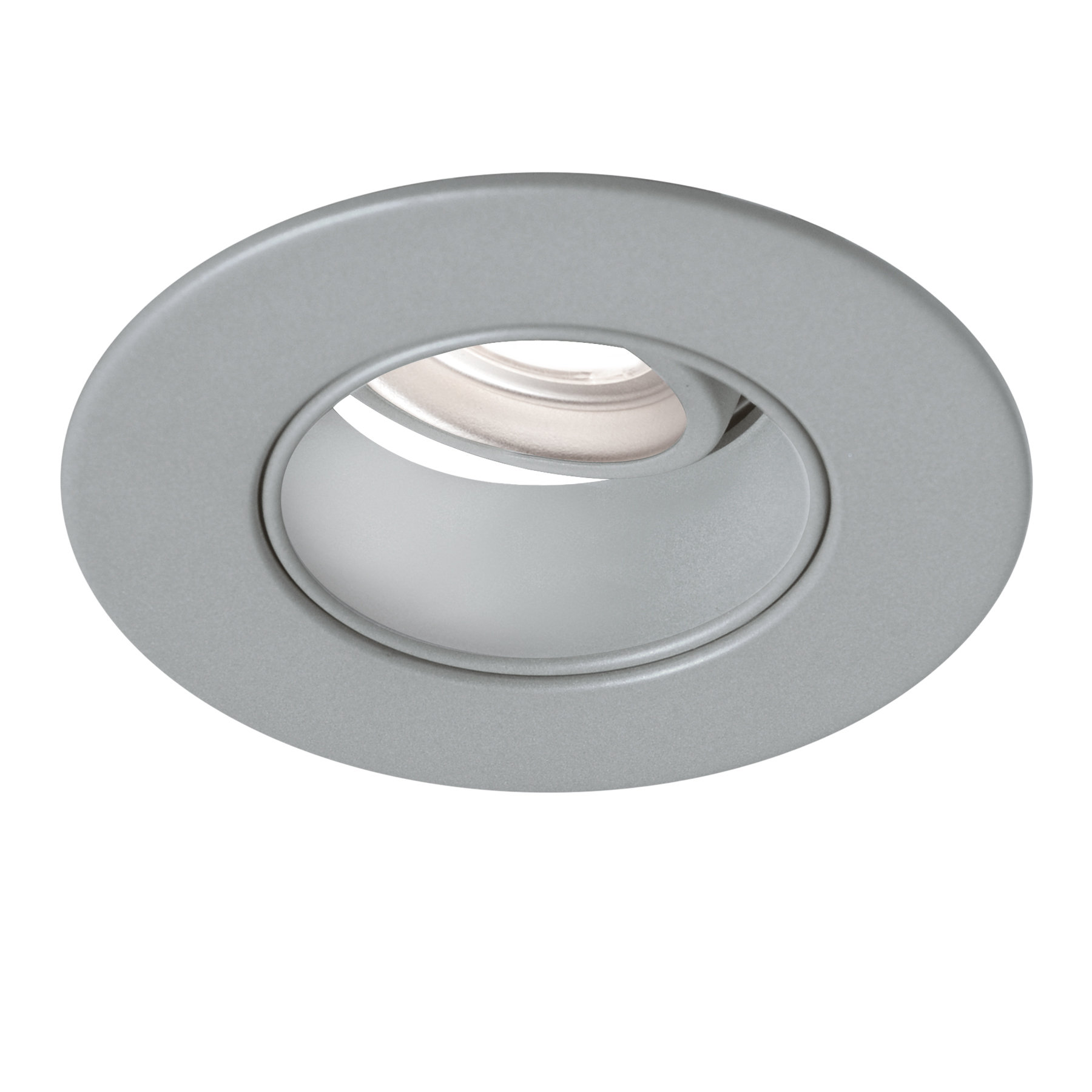

Round adjustable dedicated LED regressed 3.5in trim of the Urbai recessed LED series made by Liteharbor available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). The Urbai collection housings are compatible with 120V and 277V input and two dimming options : ELV and 0-10V.This trim model is offered with a choice of six lenses or without a lens. The standard UR3D model, without a lens, offers a good lighting performance with 815 delivered lumens @ 3,000K in performance 1, for 82 lm/W. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is available with the 2,700K and the 3,000K, along with three beam angles : the 16° spot beam, the 32° narrow flood beam, and the 48° flood beam. The warm dimming option, that dims the light from 3,050K to 1,800K, is available in performance 2 (15W). Eight trim finishes and three painted reflector finishes are offered to maximize the integration of the product.



Specifications

Volts: 120V-277V
Watts: 10W/15W
Lumens: 764LM/ 1048LM
Color Temperature: 2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type: LED
Color Finish: Matte White/Matte Black/Natural Anodized
Beam Spread: 16° /32°/48°
Luminous Size: φ 2-5/8 in
Height: 4-1/8 in
Green: Energy Star, Yes

Product File Download

# File Added by File size Downloads
1 pdf DG-URBAI liteharbor 20 MB 166
2 pdf DG-FT_UR3D_EN liteharbor 2 MB 97
