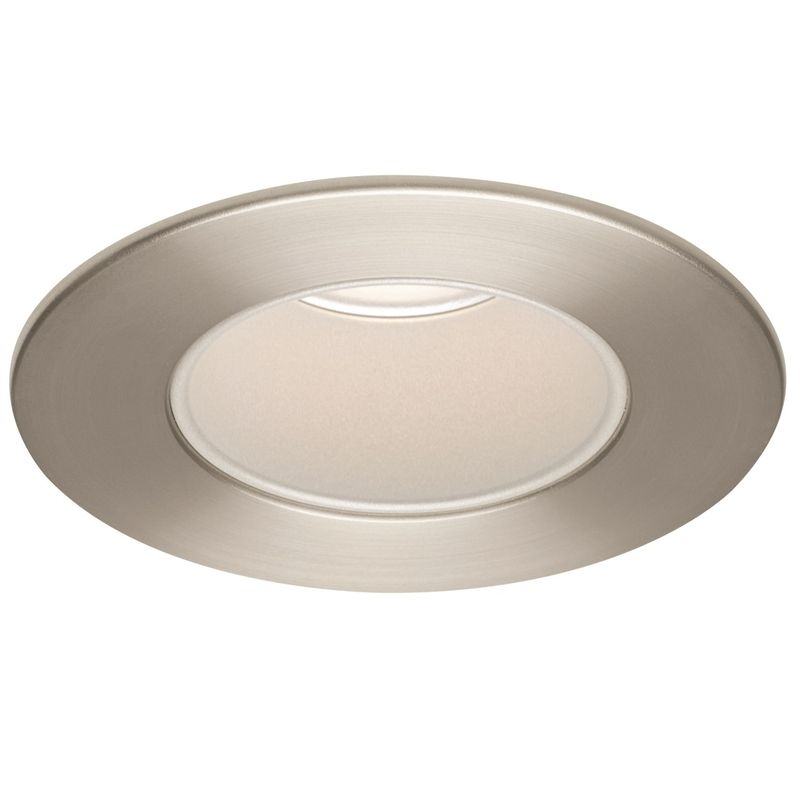

Contrast Lighting UR3E 3-3/4″ 10W Round Downlight Regressed Trim
Series:UR3E
ITEM No.:DR3E
Cut Hole Size : 3-3/4″
Watt:10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round
Description
Round downlight regressed 3-1/2 in dedicated LED trim of the Urbai recessed LED series available in performance 1 (10W) and performance 2 (15W) with the remodeler housing and the new construction housings, making the product compatible with 120V and 277V input. Offered in six trim finishes and three painted reflector finishes for better integration, along with a choice of six lenses – or no lens as a standard – the UR3E model is available in four color temperatures, with 90+ CRI and an 80+ CRI (only with 2,700K and 3,000K). Three beam angles are available: a 16° spot beam, a 32° narrow flood beam and a 48° flood beam. The warm dimming option, offered in performance 2, allows dimming the light from 3,050K to 1,800K. The standard model – without a lens – delivers 850 lumens @ 3,000K in performance 1, for 85 lm/W. Two dimming options are available (ELV and 0-10V) and the housings are compatible with 120V and 277V input.
Specifications
Volts: | 120V-277V |
Watts: | 10W/15W |
Lumens: | 764LM/ 1048LM |
Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
Bulb Type: | LED |
Color Finish: | Matte White/Matte Black/Natural Anodized |
Beam Spread: | 16° /32°/48° |
Luminous Size: | φ 2-5/8 in |
Height: | 4-1/8 in |
Green: | Energy Star, Yes |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG-URBAI | liteharbor | 20 MB | 167 |
2 | DG-FT_UR3E_EN | liteharbor | 8 MB | 97 |
