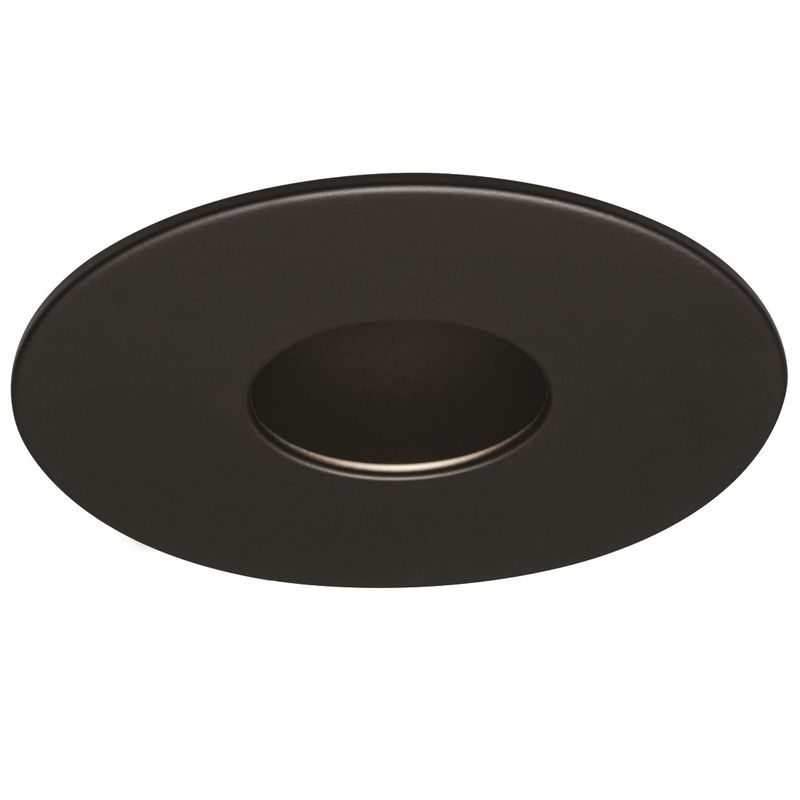

Contrast Lighting UR3F 3-3/4″ 10W Round Downlight Regressed Trim With Pinhole Aperture
Series：UR3F
ITEM No.：DR3F
Cut Hole Size : 3-3/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round
Description
Round downlight regressed 3-1/2in dedicated LED trim with a 1-5/8in pinhole aperture of the Urbai recessed LED series, manufactured by Liteharbor. Available in performance 1 (10W) and performance 2 (15W) with the remodeler housing and the new construction housings, the UR3F model is compatible with 120V and 277V input and two dimming options: ELV and 0-10V. Six trim finishes are available with a matte black reflector. The standard model has no lens, but six lenses are offered for different lighting effects. Four color temperatures are available and the warm dimming option dims the light from 3,050K to 1,800K. Two beam angles are available: the 16° spot beam and the 32° narrow flood beam. The UR3F model has a good lighting performance, with 670 delivered lumens @ 3,000K in performance 1.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 618LM/ 848LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 16° /32° |
| Luminous Size: | φ 1-5/8 in |
| Height: | 4-1/4 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-URBAI
|
liteharbor | 20 MB | 166 |
| 2 |
DG-FT_UR3F_EN
|
liteharbor | 2 MB | 107 |
