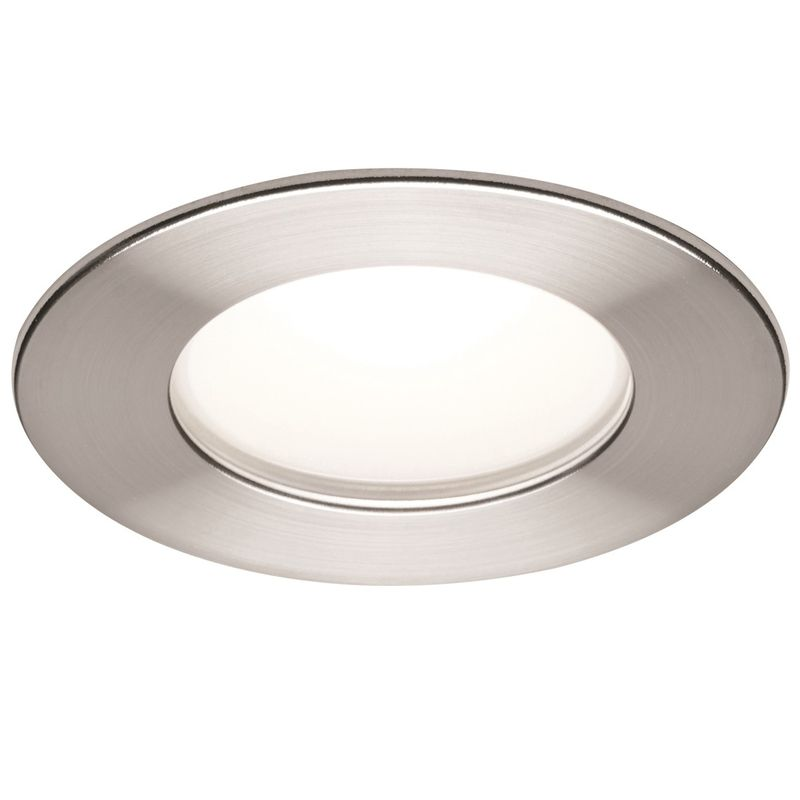

Contrast Lighting UR3C 3-3/4″ 10W Round Shower Trim
Series：UR3C
ITEM No.：DR3C
Cut Hole Size : 3-3/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round
Description
Round 3-1/2in dedicated LED shower trim of the Urbai recessed LED series available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). This model is offered with a choice of three lenses. The clear lens is suggested as the standard lens for the UR3C model – a clear and a frosted clear center lens are available too for a greater lumen output. With its standard frosted lens, the UR3C model delivers 584 lumens @ 3,000K – 58 lm/W – in performance 1. Four color temperatures are offered, with a 90+ or an 80+ CRI (2,700K and 3,000K only); only a flood beam of 48° is offered with this model. The warm dimming option is available in performance 2 (15W) and two dimming options are possible: ELV and 0-10V. Six trim finishes and three reflector finishes are suggested to maximize the integration of this model.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 764LM/ 1048LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 48° |
| Luminous Size: | φ 2-5/8 in |
| Height: | 4-3/8 in |
| Green: | Energy Star, Yes |
