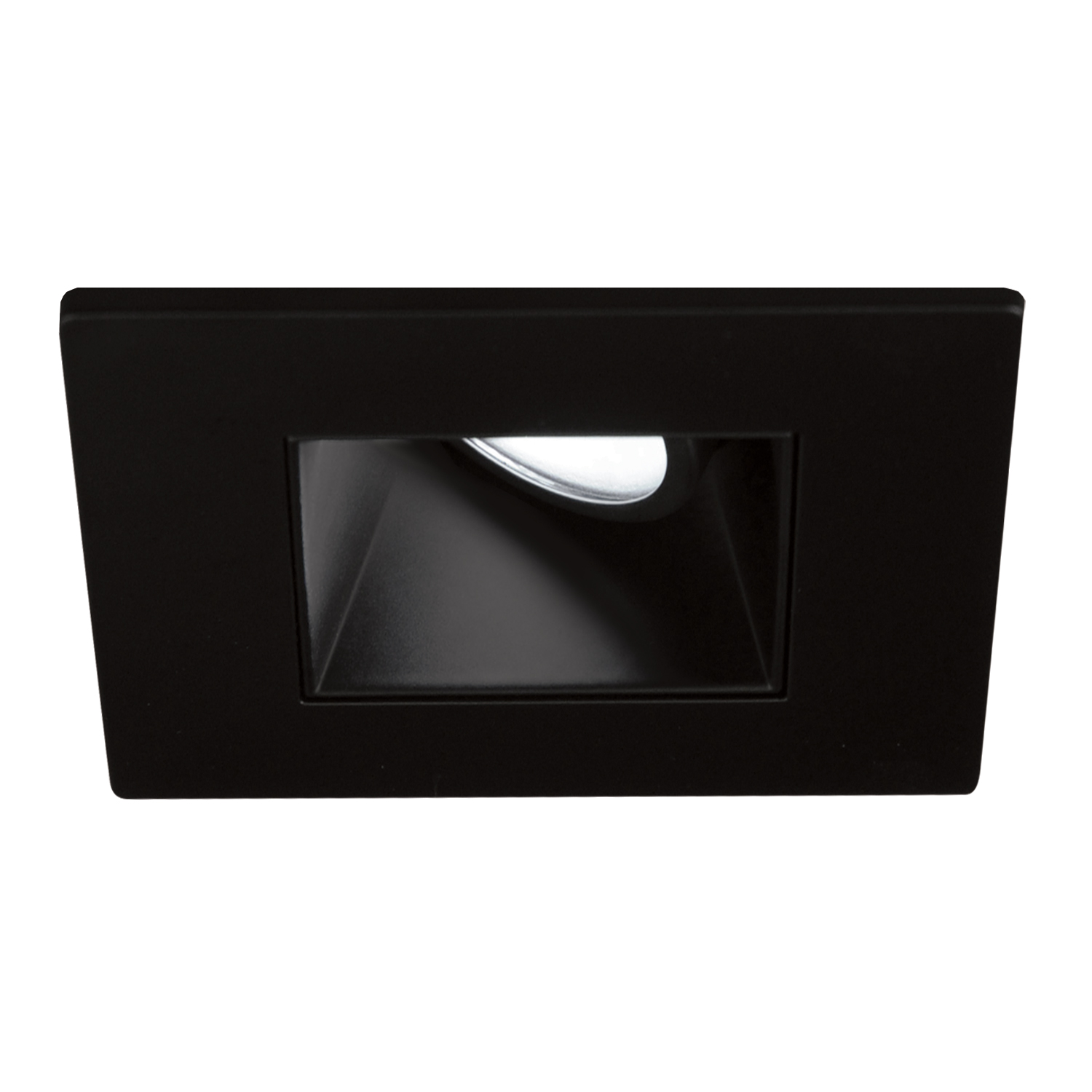

Contrast Lighting UR4L 4″ 15W Square Adjustable Regressed Trim with Square Opening

Description
Square adjustable regressed dedicated LED 4in trim of the Urbai recessed LED series made by Liteharbor available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). The Urbaï collection housings are compatible with 120V and 277V input and two dimming options : ELV and 0-10V.This trim model is offered with a choice of six lenses or without a lens. The standard UR4L model, without a lens, offers a good lighting performance with 872 delivered lumens @ 3,000K in performance 1, for 87 lm/W. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is available with the 2,700K and the 3,000K, along with three beam angles : the 16° spot beam, the 32° narrow flood beam, and the 48° flood beam. The warm dimming option, that dims the light from 3,050K to 1,800K, is available in performance 2 (15W). Eight trim finishes and three painted reflector finishes are offered to maximize the integration of the product.

Specifications

Product File Download

#	File	Added by	File size	Downloads
1	DG-URBAI	liteharbor	20 MB	166
2	DG-FT_UR4L_EN	liteharbor	8 MB	111
