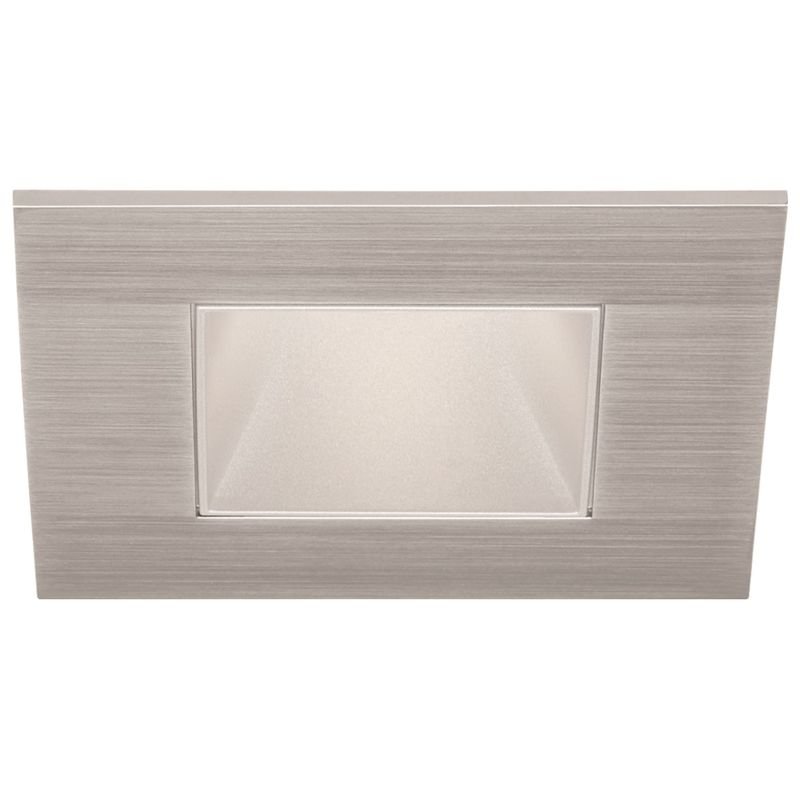

Contrast Lighting UR4J 4″ 15W Square Downlight Regressed Trim With Square Opening
Series：UR4J
ITEM No.：DR4J
Cut Hole Size : 4-1/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Square
Description
Square downlight regressed 4in dedicated LED trim with square opening of the Urbaï recessed LED series available in performance 1 (10W) and performance 2 (15W) with the remodeler housing and the new construction housings. Offered in six trim finishes and three painted reflector finishes for better integration, along with a choice of six lenses or no lens as a standard, the UR4J model is available in four color temperatures, with a 90+ CRI and an 80+ CRI (only with 2,700K and 3,000K). Three beam angles are available: a 16° spot beam, a 32° narrow flood beam and a 48° flood beam. The warm dimming option, offered in performance 2, allows dimming the light from 3,050K to 1,800K. The standard model delivers 872 lumens at 3,000K in performance 1, for 87 lm/W. Two dimming options are available (ELV and 0-10V) and the housings are compatible with 120V and 277V input.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 780LM/ 1135LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 16°/32°/48° |
| Luminous Size: | 2-5/8 in * 2-5/8 in |
| Height: | 4-5/16 in |
| Green: | Energy Star, Yes |
