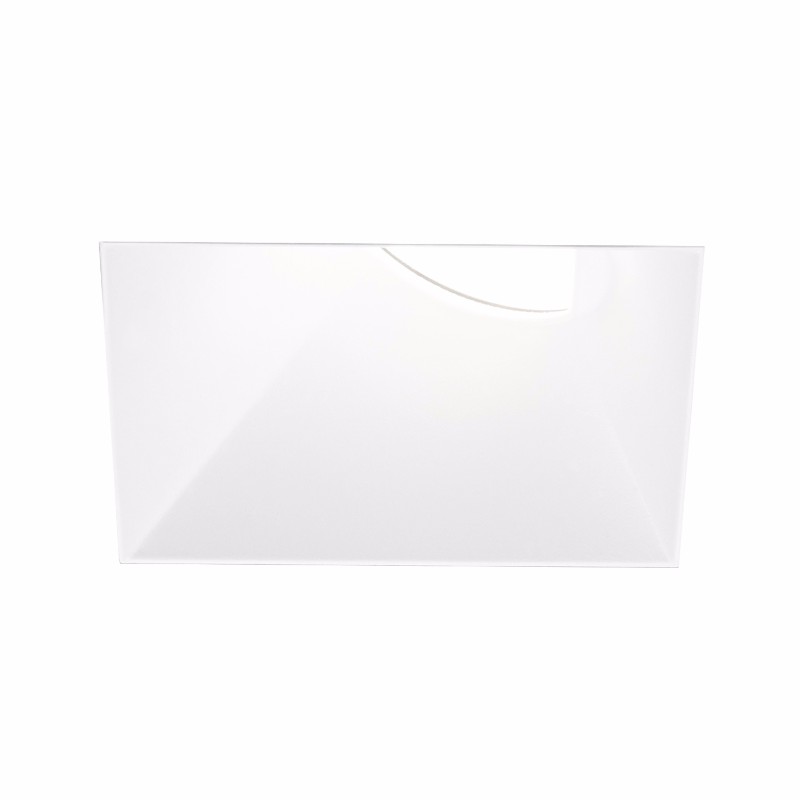

Contrast Lighting A3SWW 3.5″ 14W Square Wall Wash LED Downlight

Description

Ardito dedicated LED ultra-thin square 3-1/2” wall washer trim available in performance 1 (14W) and performance 2 (23W) with the remodeler, new construction and IC Air Tight housings. Available in seven trim finishes and three reflector finishes, this model is preferred with a matte black reflector for optimal wall wash and quiet ceiling effects. A standard frosted lens is offered with A3SWW to obtain a uniform lighting with 443 lumens @ 3,000K in performance 1 (14W). Four color temperatures are offered along with the warm dimming and color tuning options.

Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.

Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.

Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations



Ardito Series

Three aperture sizes: 2.5″, 3.5″ and 4″

Trim and Trimless (-TR) available.



Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.



Specifications

Volts:	120V-277V
Watts:	14W
Lumens:	470 – 670LM
Color Temperature:	2700K/3000K/3500K/4000K/Warm Dimming
Bulb Type:	LED
Color Finish:	Matte White/Matte Black/Natural Anodized
Beam Spread:	54°
Luminous Size:	3-1/2 in
Height:	6-3/8 in
Green:	Energy Star, Yes
