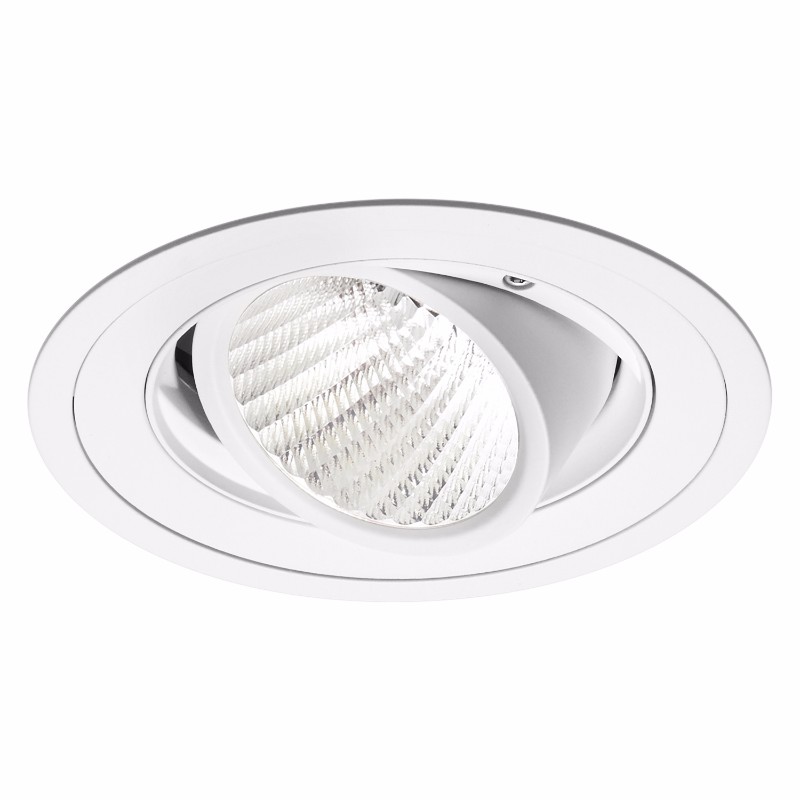

Contrast Lighting A4RAF-TR 4″ 14W Round Adjustable LED Downlight
Series:A4RAF-TR
ITEM No.:DL4RAF-TR
Watt:14W
Finish : Matte White/Matte Black/Natural Anodized
Shape :Round
Description
Ardito dedicated LED ultra-thin round adjustable flangeless4” trim available in performance 1 (14W) and performance 2 (23W) with the remodeler, new construction and IC Air Tight housings in performance 1 (14W) and performance 2 (23W). With a choice of seven light engine finishes, four color temperatures and a 90+ CRI, this model is also available with the warm dimming (from 3,050K to 1,800K) and color tuning options. Two dimming options are available (ELV and 0-10V) and the housings are compatible with 120V and 277V input. This entirely adjustable trim, thanks to its 30° tilt, 359°rotation and 15° spot beam, allows to highlight the features of a certain object or place in a room. A4RAF-TR offers an excellent performance, delivering from 1,300 to 1,900 lumens, for 96 lm/W @ 3,000K in performance 1. The spot beam delivers close to 12,000 candelas at nadir, while keeping the minimalist look of the trim.
The MIPA4R mud-in-plate has to be ordered separately to install the trims without a flange, for a minimalist and contemporary look. The plates will be delivered quickly to the job site in order to install them in the ceiling prior to the arrival of the trims.
Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.
Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.
Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations
Ardito Series
Three aperture sizes: 2.5″, 3.5″ and 4″
Trim and Trimless (-TR) available.
Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.
Specifications
Volts: | 120V-277V |
Watts: | 14W |
Lumens: | 1,300 to 1,900 |
Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
Bulb Type: | LED |
Color Finish: | Matte White/Matte Black/Natural Anodized |
Beam Spread: | 15°/30°/42° |
Luminous Size: | ø3-1/2 in |
Height: | 5-1/44 in |
Green: | Energy Star, Yes |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG-Ardito_EN | liteharbor | 9 MB | 144 |
2 | DG_A4RAF-TR_EN | liteharbor | 8 MB | 104 |
3 | DG_A4RAF_EN | liteharbor | 8 MB | 103 |
