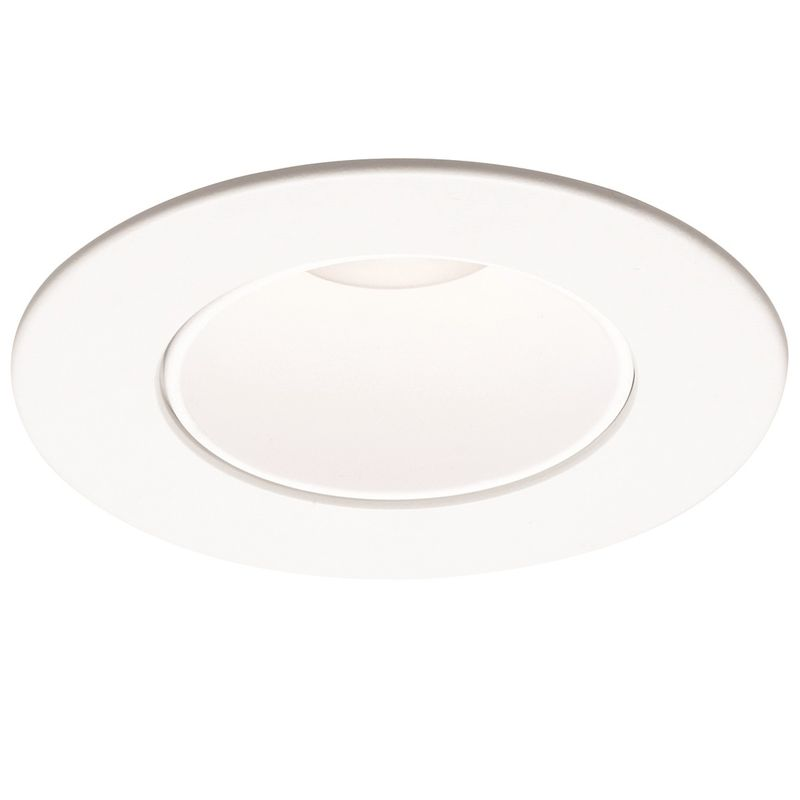

Contrast Lighting UR4E 4″ 15W Round Downlight Regressed Trim
Series：UR4E
ITEM No.：DR4E
Cut Hole Size : 4-1/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round
Description
Round downlight regressed 4in dedicated LED trim of the Urbai recessed LED series available in performance 1 (10W) and performance 2 (15W) with the remodeler housing and the new construction housings. Offered in six trim finishes and three painted reflector finishes for better integration, along with a choice of six lenses – or no lens as a standard – the UR4E model is available in four color temperatures, with a 90+ CRI and an 80+ CRI (only with 2,700K and 3,000K). Three beam angles are available: a 16° spot beam, a 32° narrow flood beam and a 48° flood beam. The warm dimming option, offered in performance 2 (15W), allows dimming the light from 3,050K to 1,800K. The standard model – without a lens – delivers 850 lumens at 3,000K in performance 1, for 85 lm/W. Two dimming options are available (ELV and 0-10V) and the housings are compatible with 120V and 277V input.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 764LM/ 1048LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 16°/32°/48° |
| Luminous Size: | φ 3 in |
| Height: | 4-1/8 in |
| Green: | Energy Star, Yes |
