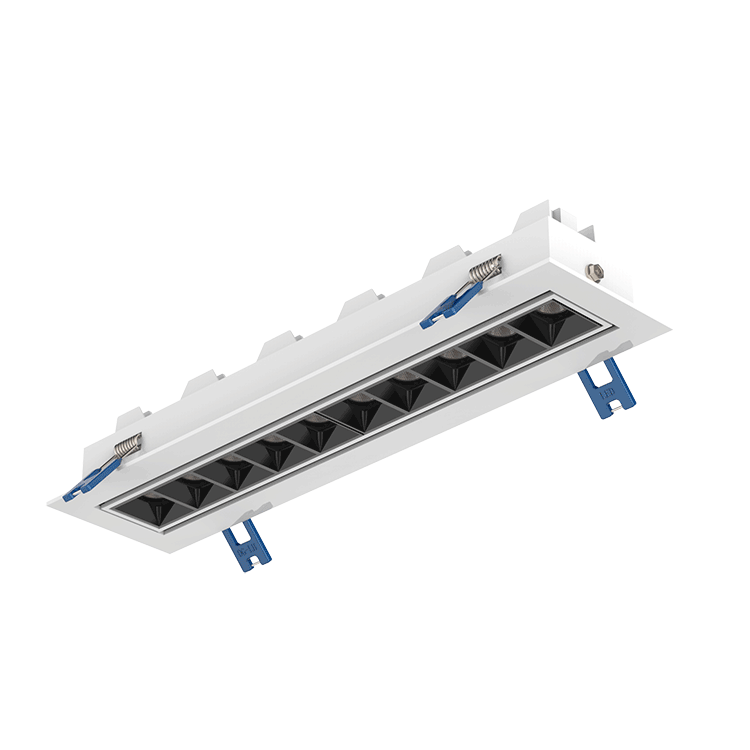

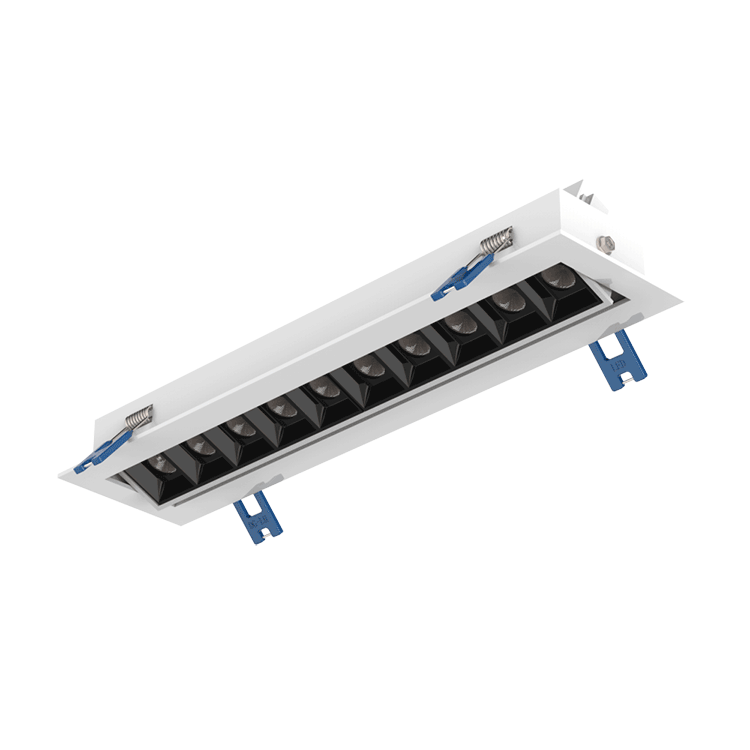

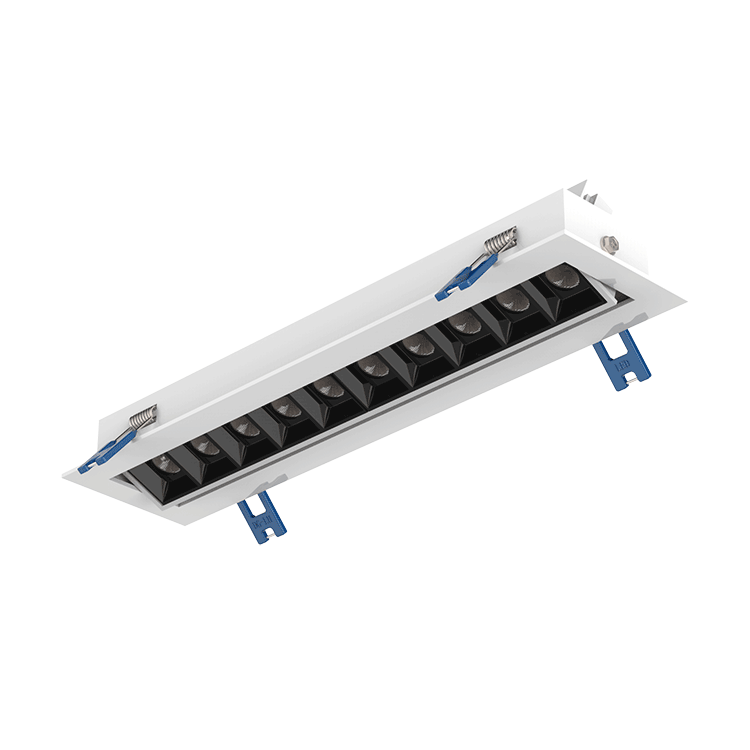

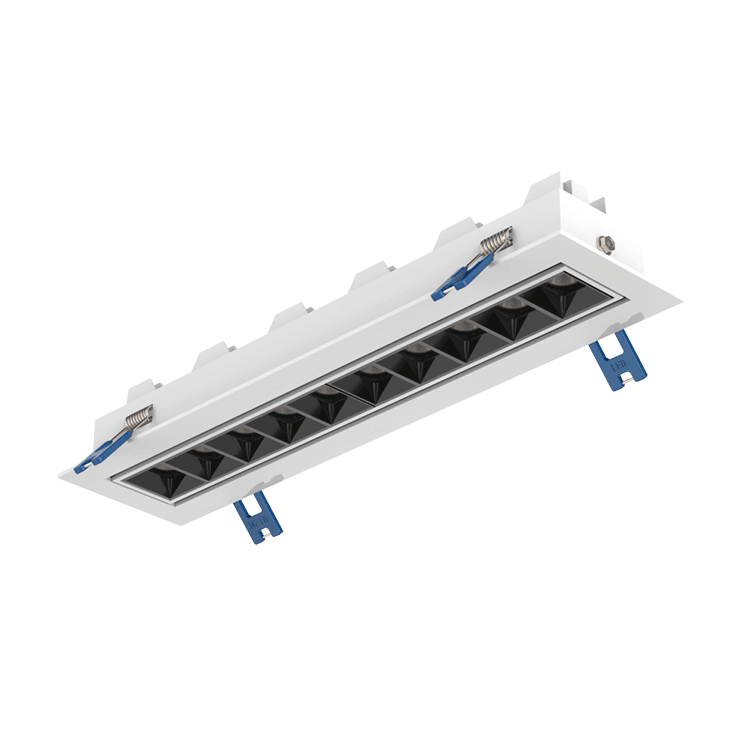

High End Adjustable 10 Lamps Linear Mini LED Multiple Downlight
/
/
/
/
/
High End Adjustable 10 Lamps Linear Mini LED Multiple Downlight

High End Adjustable 10 Lamps Linear Mini LED Multiple Downlight

ITEM No.: G4011A-10-A
Watt : 2W/Lamp
Series : Mini LED Multiple Downlight
Application : Commercial/Residential

Description
The Mini multiple downlight Series is equipped with5, 10 and 15, 5×2, 10×2, 15×2 lamps. The miniaturized design, die-cast aluminum body, and high-performance acrylic diffuser provide uniform scientific light output for maximum visual comfort.
Recessed rectangular luminaire with LEDs. Shaped steel sheet structural compartment with outer rim. The 15 lighting cells linear body, in die-cast aluminium, can be used to direct the emission with a tilting adjustability of +/- 30 °. Metallised thermoplastic  high definition optics, integrated in a rear position in the black anti-glare screen; the structure of the optical system prevents a pinpoint effect, allowing precise,circular light distribution and emission with controlled luminance.

Features
– The simplified retrofit installation can be used in both new and existing spaces.
– Dimmable with a variety of commonly used drivers.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.

Specification
– Luminaire efficacy: 65 to 80lm/W
– Source: White LED module (LM-80 tested) 2700K~6000K CRI>90
– Lumen maintenance: 90% of initial lumens at 50 000 hours (L90) (LM79 tested)
– Optics: Low luminance: Spot optic, with pptibeam technology
– Material: Body and Heat sink: Die-cast aluminum, Reflector and Baffle: Thermoplastic

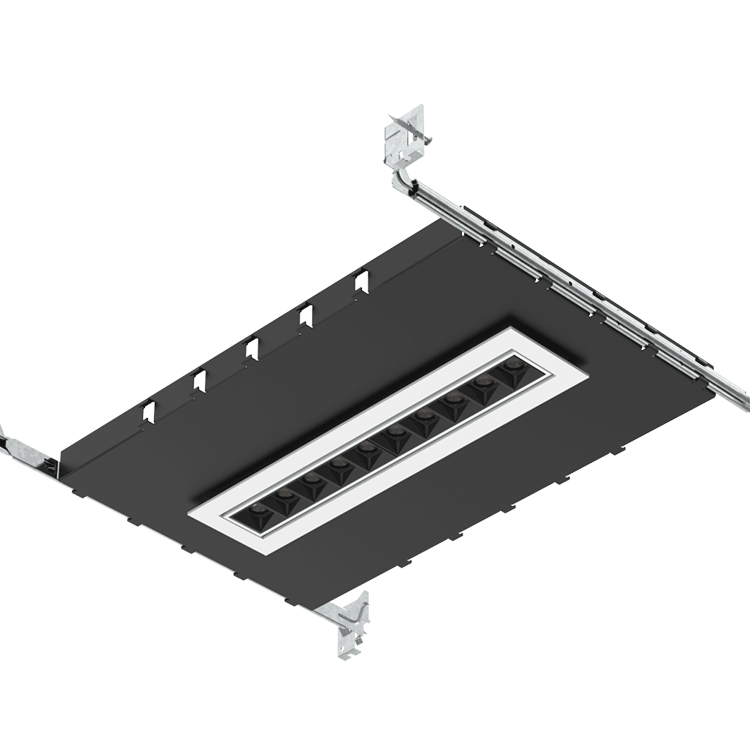

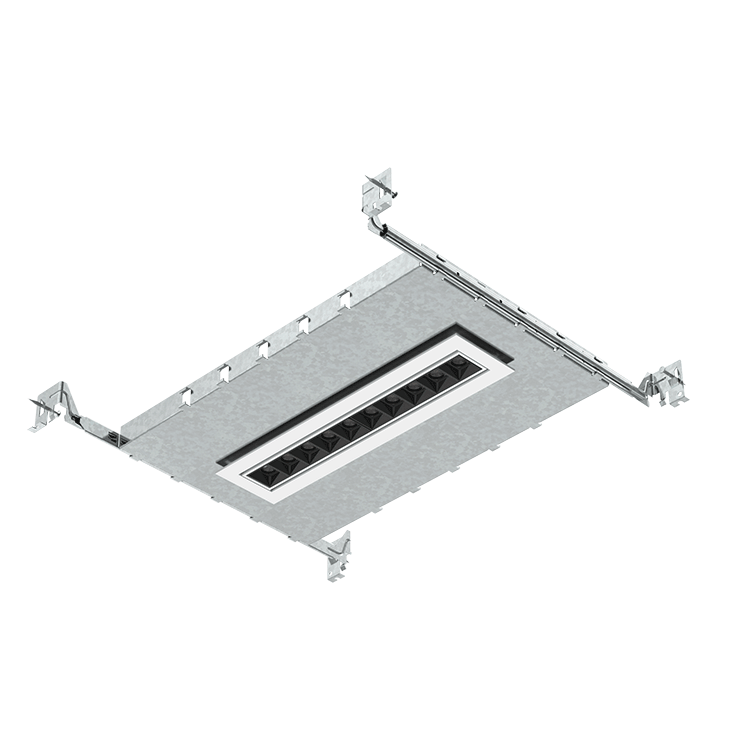

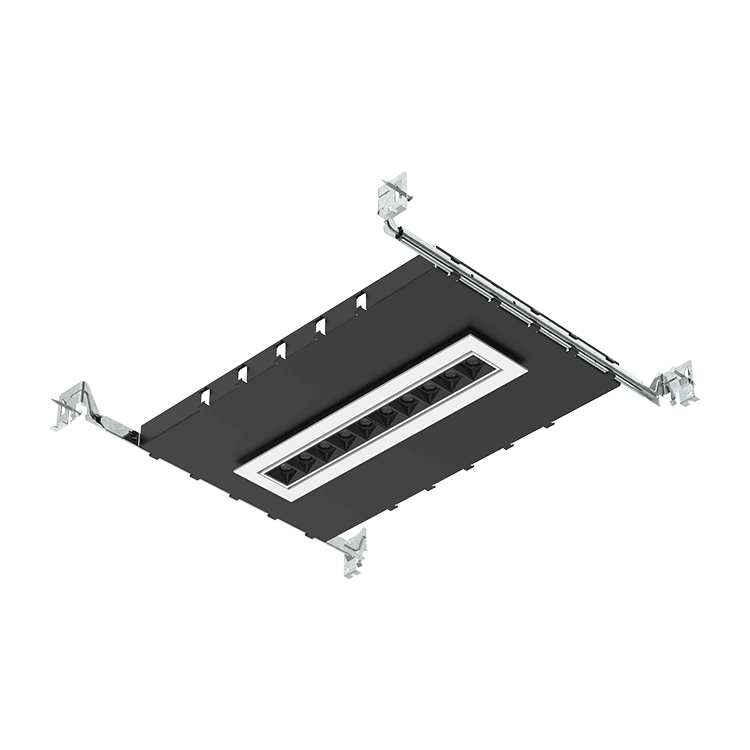

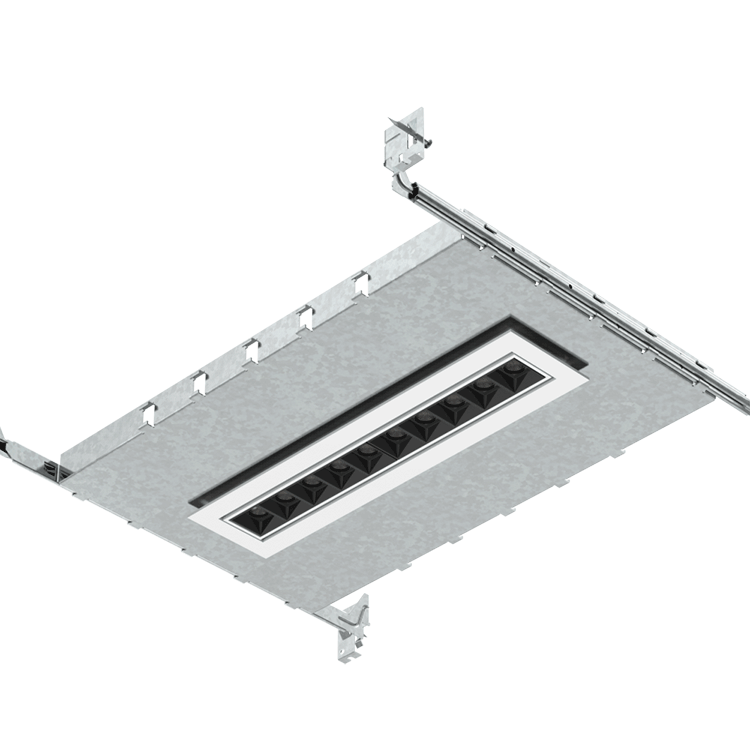

– Mounting: New construction installation or remodel installation

Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.

Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting
and accent lighting.

Parameter

 Wattagte  2W/Lamp
 Lumen  65-80lm/W
 Optics  30°
 CCT  2700K ~ 6000K
 Material  Die-cast Aluminum
 Dimming  Non/TRIAC/0~10V
 Finish  White/Black/Silver

Product File Download

# File Added by File size Downloads
1 pdf G4012A-10-A liteharbor 788 KB 249
2 pdf G4012A-10-A-NC liteharbor 864 KB 244
3 pdf Mini Multiple DownLight liteharbor 1 MB 432
