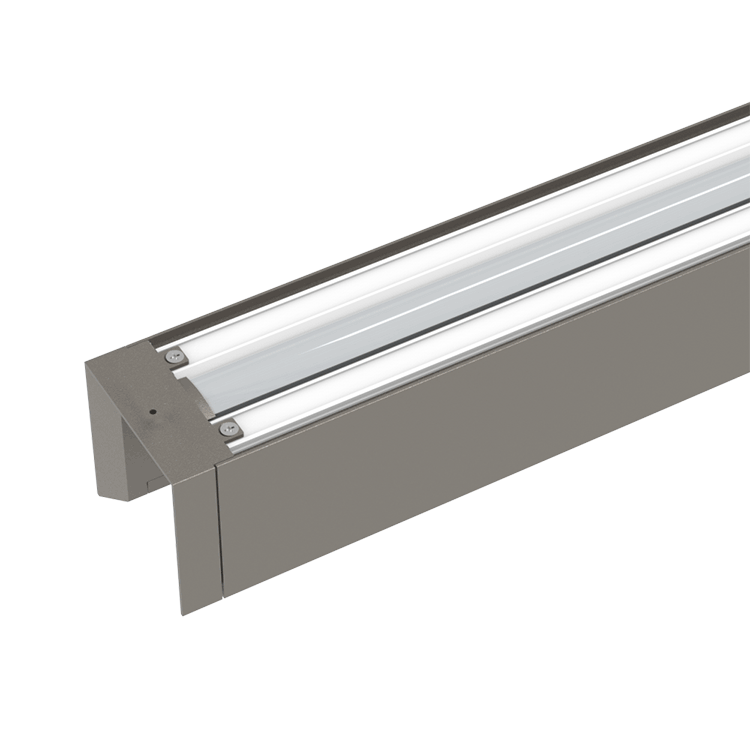

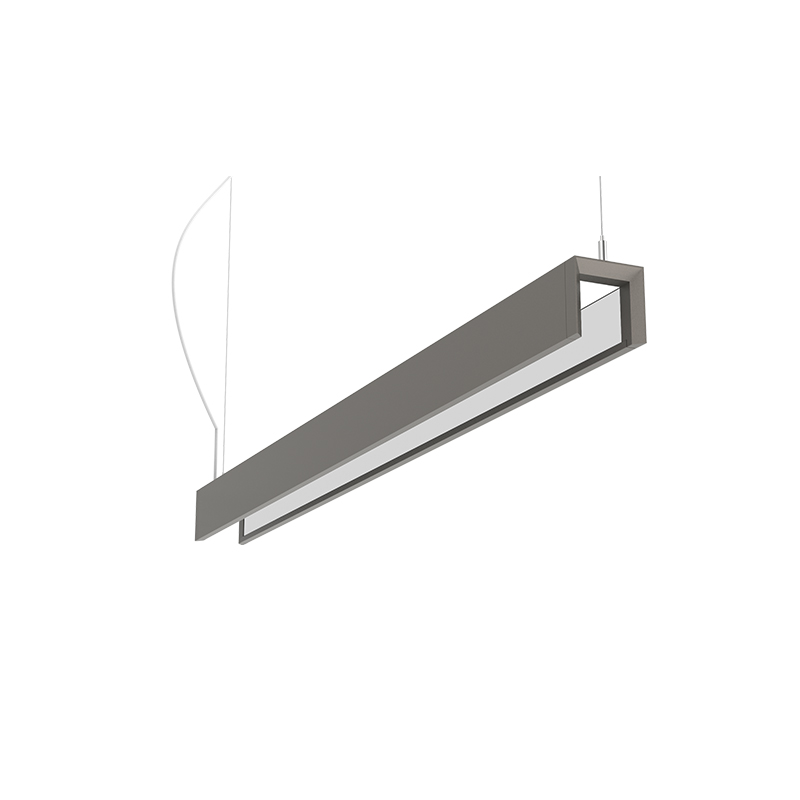

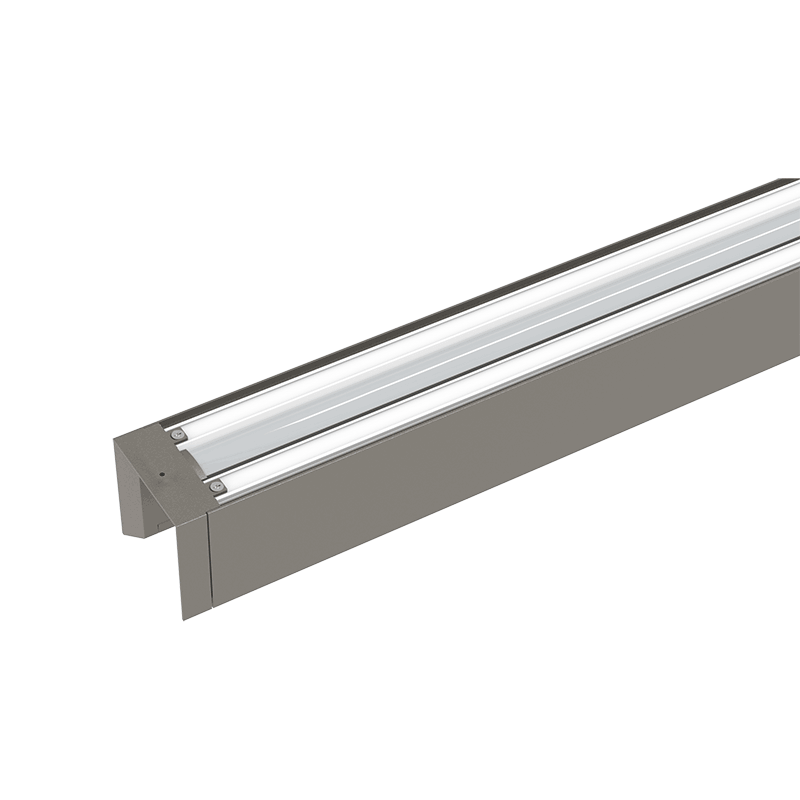

POE Lighting High Performance Indirect Lighted 55W LED Linear Up and Down Light

High Performance LED Linear Up and Down Light



FEATURES

– Simple elegant linear fixture suitable for high end offices, lounges, retail space and showrooms.

– Invisible LED source, produces high quality illumination with CRI>80/90.

– Integrated 0-10V or SCR dim driver for even greater energy saving.

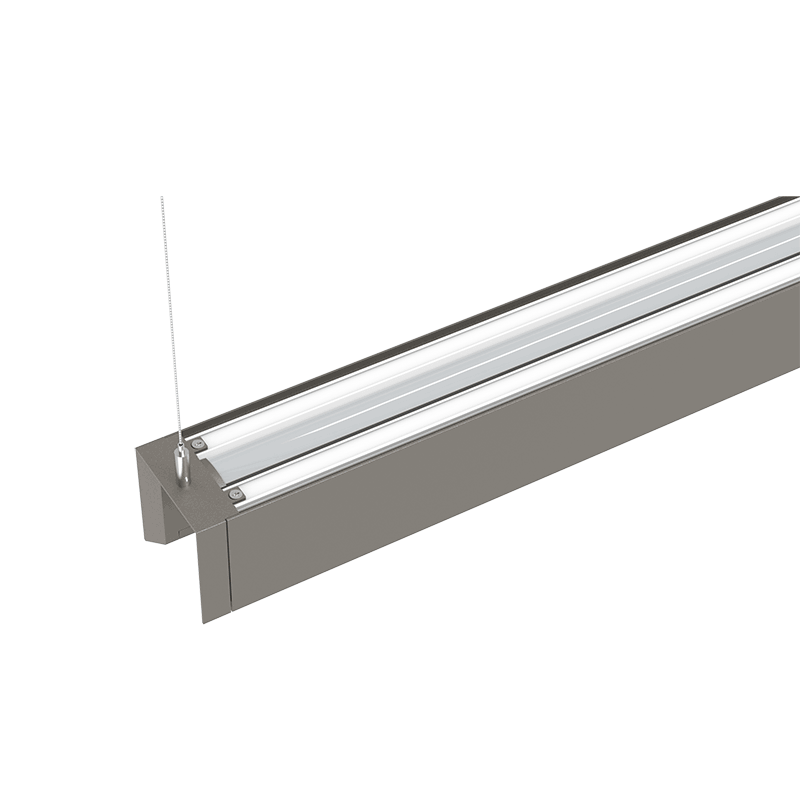

– Simple pendant installation with aircraft cable.

– Adaptable hardware convert individual fixtures to linkable light for continuous run.

– High-quality optical design, lights upward for unique ambient lighting,and effcient down light for task lighting.



DETAILS

Item No.	DG0704-A
Energy (W)	40W/55W
OPptical Distribution	OD 75/25 | 75%up/25%down
Finish	SBK/SG/SWH
Voltage	Universal
CRI	80/90
Dimmable	Non-Dim/0–10 V Dim 120–277 V/RF2.4G
CCT	2700K/3000K/3500K/4000K
Installation Selection	Structure or remodel/Remote/Drywall/The Wire
RemoteControls (Optional)	Multifunction Remote Controller/Microwave Motion Sensor
Size	4ft



Driver

High Efficiency,High Power Factor, Low THD, Flicker Free Wireless Dimmable.

Communication Protocol: RF2.4G -Controllable Distance: >30 Meters(Without Obstacle)

-Control Method: Remote Controller,86 Control Panel Sensors

-Dimming Range: 3%-100%

-One Output: Dimmable Driver

-Two Output: Dimmable &Color-temp Adjustable Driver

Advantages of PoE Solution
Liteharbor’s Lighting adopt Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.. PoE lighting uses Power over Ethernet technology to connect, monitor, and control LED light fixtures used in smart building solutions. Smart PoE lighting reduces installation and operating costs by more than half and helps building owners meet wellness and sustainability goals.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.

5 Year Limited Warranty.
