High Quality LED Tunnel Lighting and Lighting Solution Provider
ITEM No.： TN-001

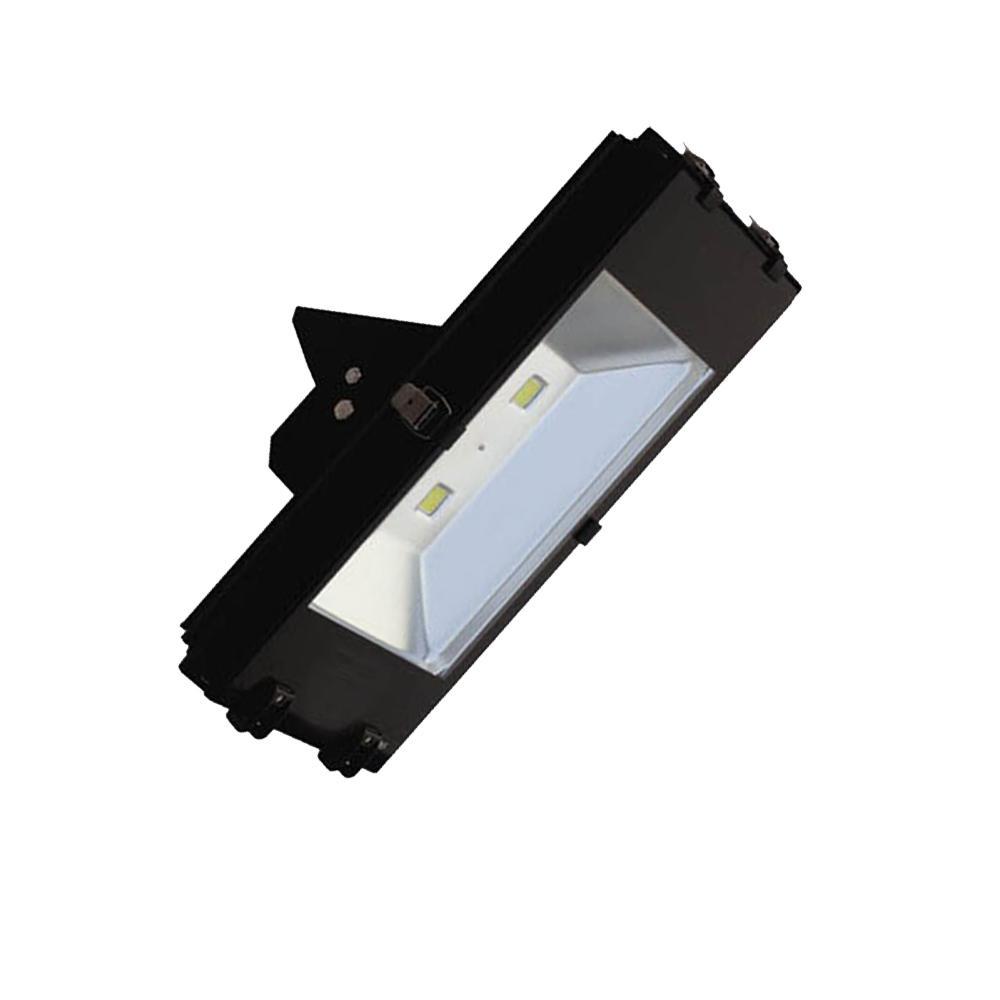

Light Name : LED tunnel lighting
Wat : 140W max
Material : Aluminum
Angle : 130 degree
ODM & OEM : Acceptable
Product Details
Uses two high power (40-70W) LED as light sources.
Luminous flux up to 11,200lm. It saves 50%-80% electricity cost comparing to traditional tunnel lights. No UV, IR, lead or mercury.
Main Features
LED Sources：Two high power LED (40W-70W).
LED Power Consumption: 80W – 140W
LED Efficiency: 100lm/w
Effective Light Angle: 130 degree
Work Voltage：AC(85V-265V)/（50~60Hz）DC(12~24V)
Power factor（PF）:>0.9
Ra>80
Color temperature (CCT)：2700~7000K
IP Rating: IP65
Environment friendly: no UV, IR, lead or mercury.
No delay start
Materials
High-purity aluminum reflector
High-purity aluminum light housing and heat sink
High intensity tempered glass
Two High powerful LED (40W–70W) light source
High efficiency LED driver
Main Applications
Tunnels
Railways
Underground passages
Underground parking places
