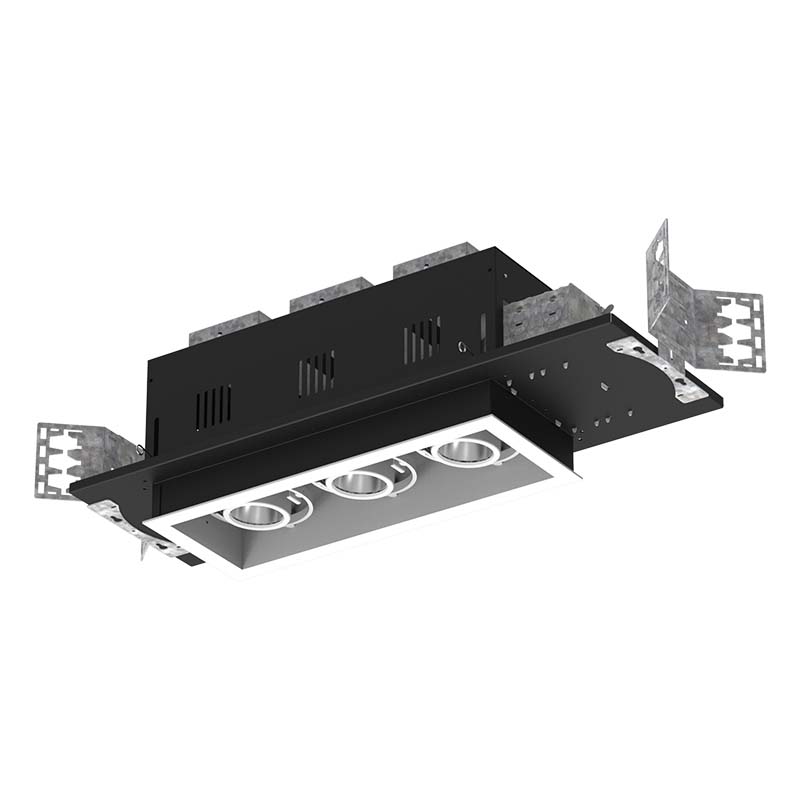

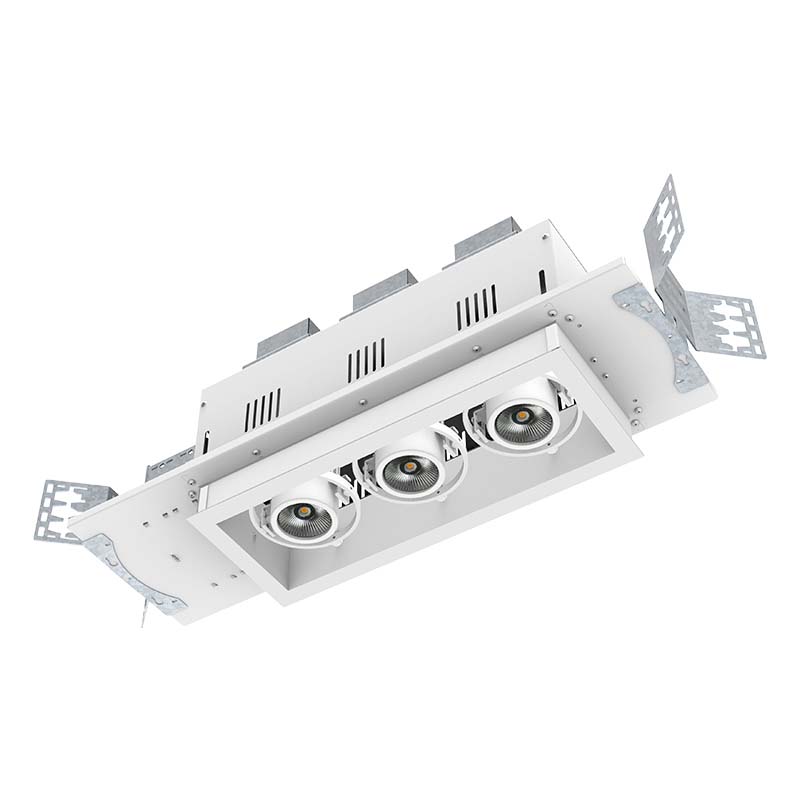

LED Commercail Recessed Multiple Downlight 3 lights Villa Lighting

Description

Easy Installation and maintenance

All parts and components accessible from below the ceiling

Lamp holders are adjustable 360° horizontal and 30° vertical for spot lighting in multiple directions

Actual adjustment may vary depending on the lamp beam spread

Housing

The inner trim is constructed of 22GA steel

Finish can be black, white or silver

Special finish please confirm with factory

Internal wire bundles and locked and covered with a glass sleeve

Junction box can be accessible from below the ceiling with a plate

Mounting Frame

Can be accommodate a 1/2″ to 1 1/4″ ceiling thickness

Channel bracket allow up to 5″ vertical adjustable

Universal mounting brackets included

Compatible with C-channel, flat bar, and EMT

C-channel are recommended for T-bar ceilings

Bar hangers must be ordered separately

Flanged Trim

Extruded trim frame includes torsion springs for convenient installations or removal from the housing

Trimless

Optional mud frame available for trimless mounting

The perforated mesh frame provided adheres to joint compound for seamless and trimless mounting

LED Light Engine

2800-6000k

CRI>80%

LED mounted to die-cast/extruded aluminum heat sink

50000 hours average rated life at 70% lumen

Electrical System

120-277V input

Class 2 power supply

Over voltage, over current and short circuit protection

Auto recovery

10% dimmable is available 120V only

10/15/17.8/20W each lamp

LM from 650-950 each lamp

Item	Lamp Q’ty (PCS)	Wattage (W)	Lumen (LM)	Color Temperature (K)
DGL-GA2011C	1	20	950	2800-6000k
DGL-GA2012C	2	40	1900
DGL-GA2013C	3	60	2850
DGL-GA2014C	4	80	3800
DGL-GA2010C	4	80	3800
