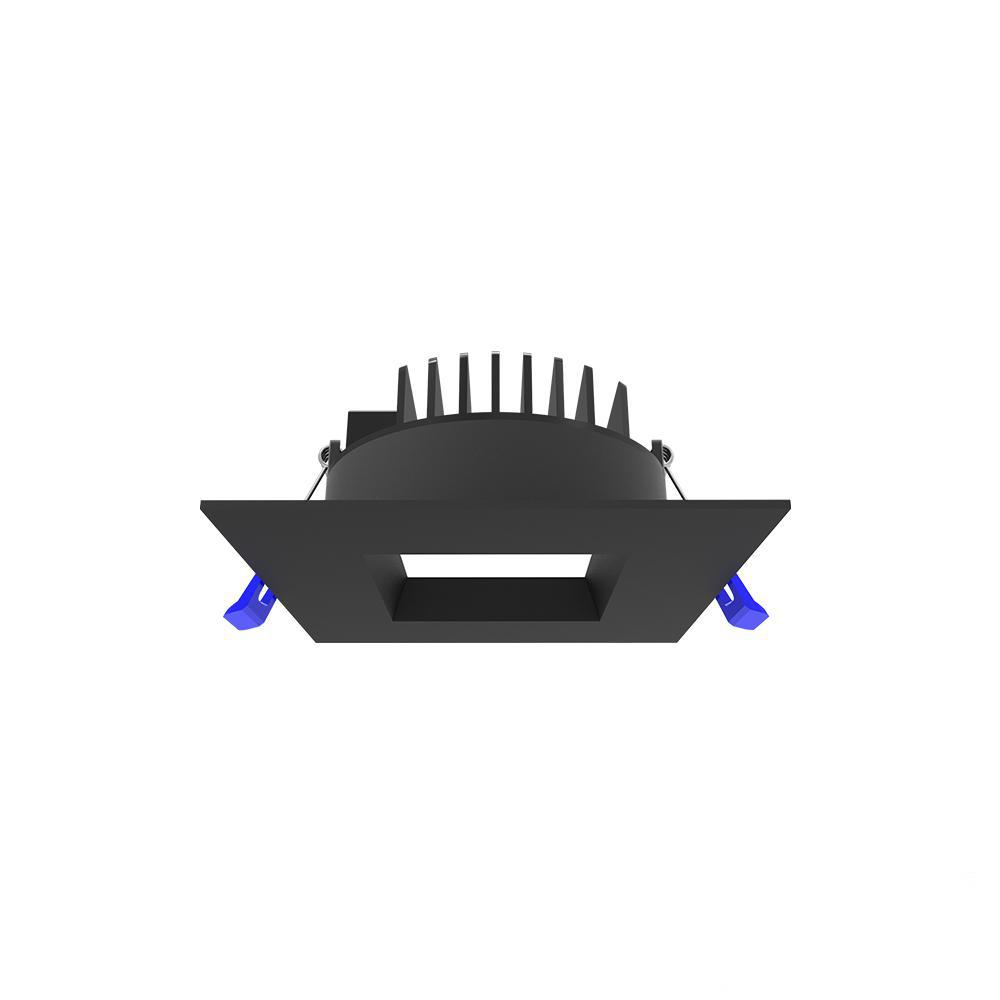

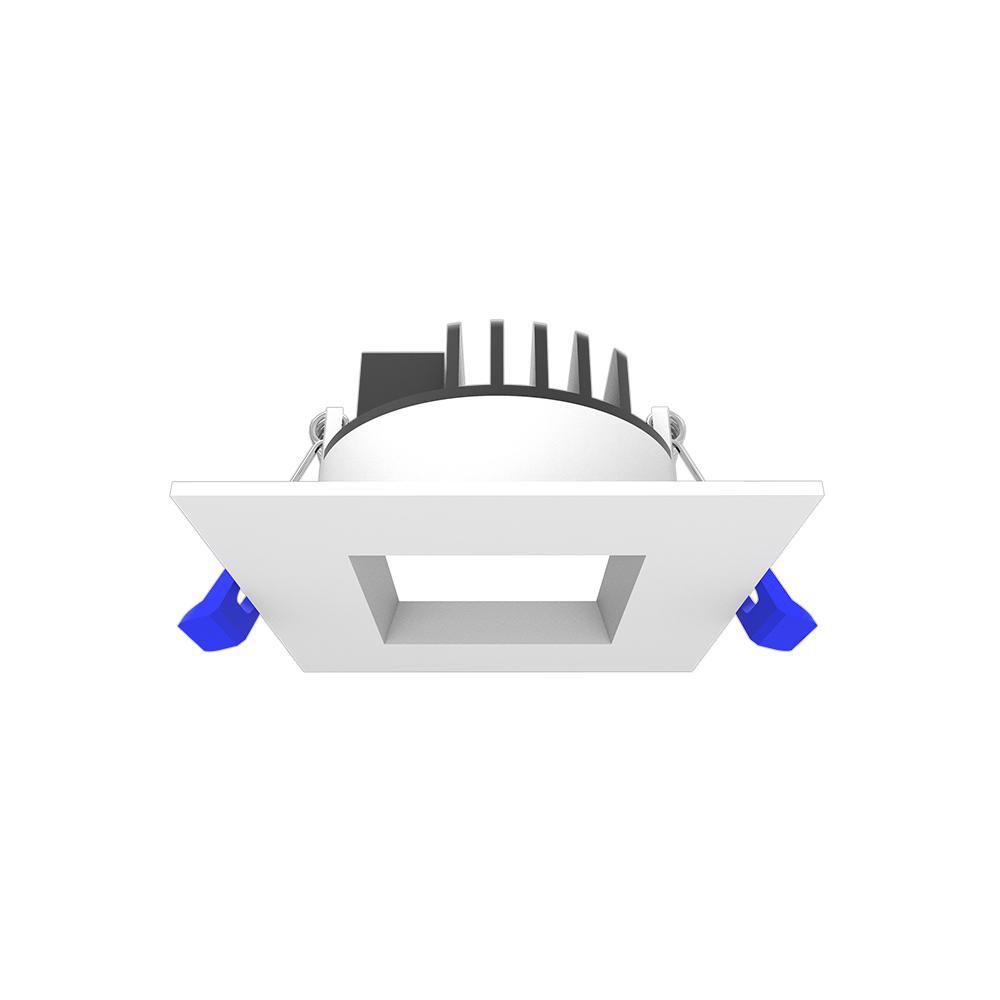

Liteharbor 3 Inch Square Shape LED Downlights
ITEM No.： BL3-A-S01
Watt : 10W
Voltage : AC 120V/120-277V
Lumen : 800lm
CCT : 2700K-5000K
FEATURE
– Full luminaire made of high quality die cast aluminium.
– Protected LED driver performs at 120V (120-277V available).
– This fixture is built to last with maintenance-free energy efficient LEDs.
– Beam Angle: 90 Degree.
– IP Rating: IP44.
Applications
Apply to residential, automotive, parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Specification
| Watt | 10W |
| Voltage | AC 120V/120-277V |
| Driver | Liteharbor |
| PF | >0.9 |
| Lumen | 800lm |
| Light Source | SMD |
| CRI | 90+ |
| Beam Angle | 90 |
| CCT | 2700K-5000K |
| Material | Aluminum |
| Finish | White/Black |
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BL3-A-S01
|
liteharbor | 585 KB | 245 |
| 2 |
BL3-A-S01-NC
|
liteharbor | 843 KB | 224 |
