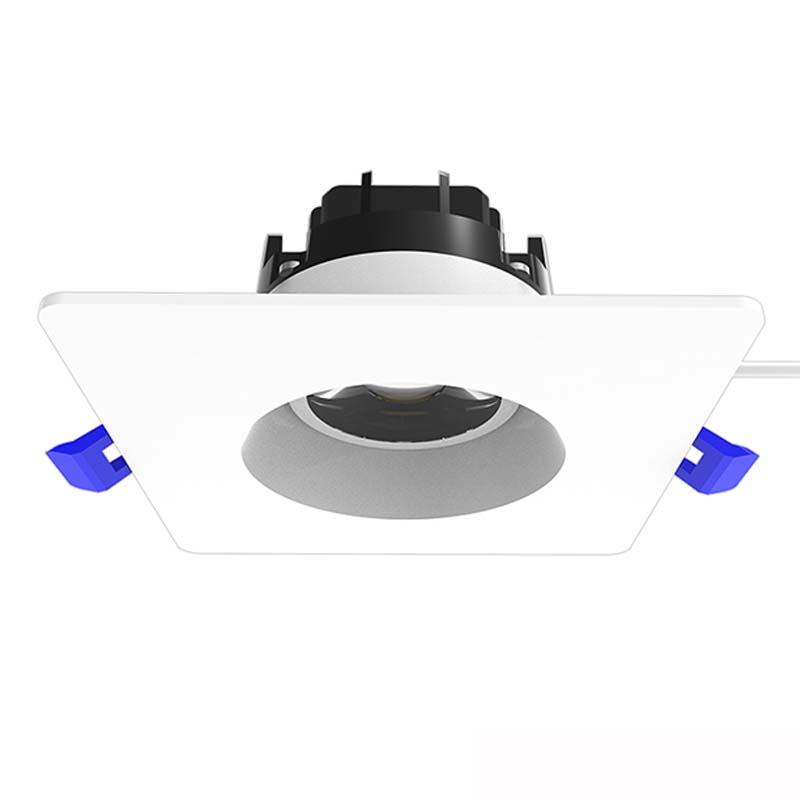

Liteharbor 3″ Square Rotatable LED Eyeball Downlight
ITEM No.： BEL3-A-S01
Watt : 10W
Voltage : AC 120V
Driver : Liteharbor
PF : >0.9
FEATURE
– Swivel eyball trim allows the flexibility focus light on a specifc area and create the ambiance you desire.
– Protected LED driver performs at 120V.
– This fixture is built to last with maintenance-free energy efficient LEDs.
– Beam Angle: 30/60 Degree.
– IP Rating: IP44.
Applications
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Specification
| Watt | 10W |
| Voltage | AC 120V |
| Driver | Liteharbor |
| PF | >0.9 |
| Dimming | Dimmable |
| Lumen | 800lm |
| Light Source | COB |
| CRI | 90+ |
| Beam Angle | 30D/60D |
| CCT | 2700K-5000K |

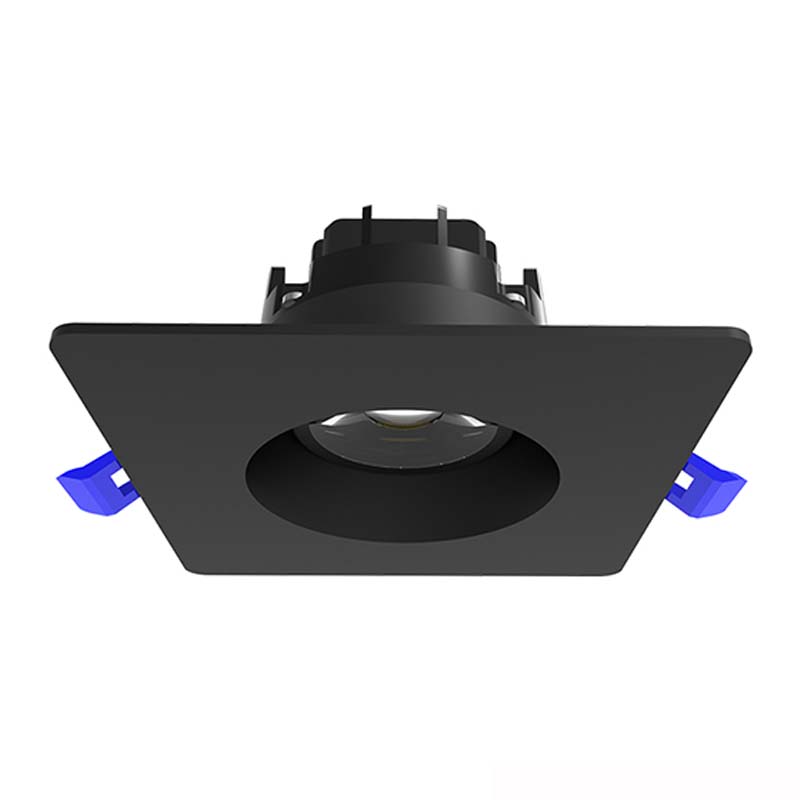

| Finish | White/Black |

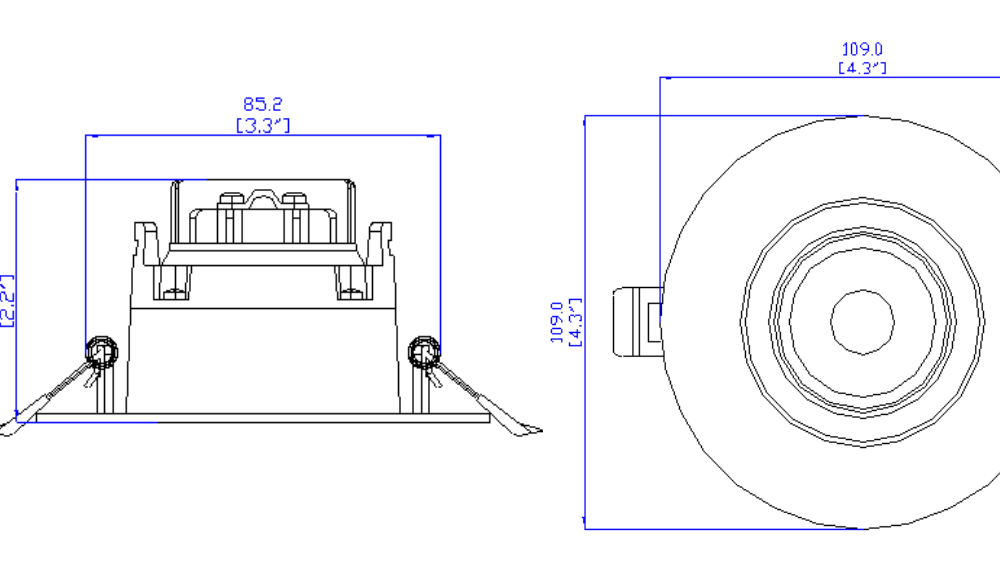

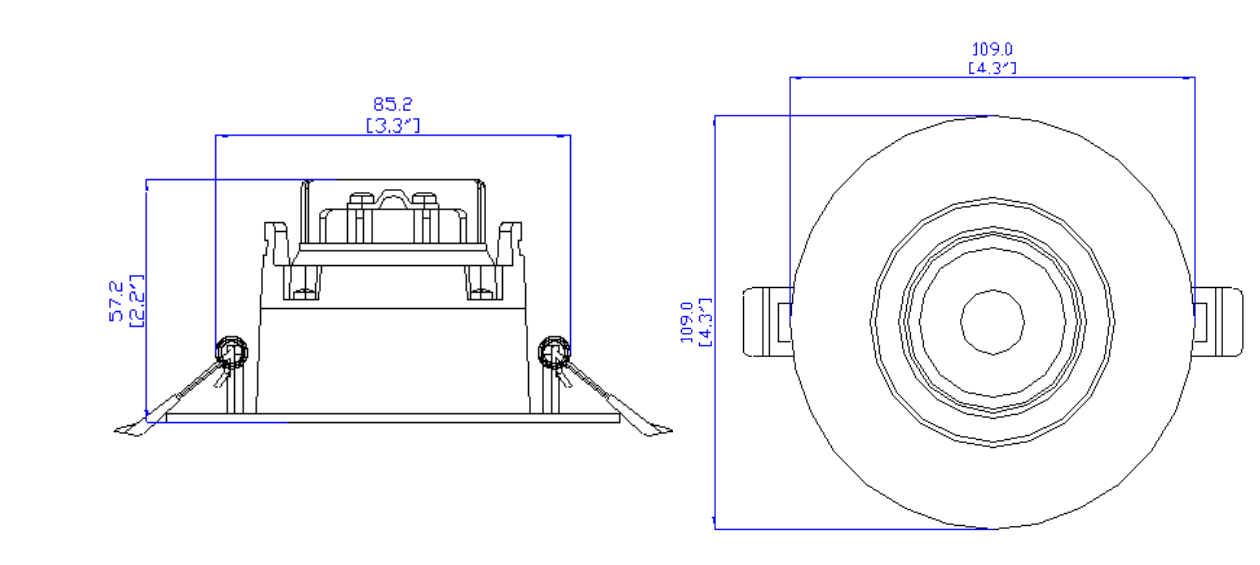

| Dimension | 109mm*109mm*57.2mm |
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BEL3-A-01
|
liteharbor | 428 KB | 257 |
| 2 |
BEL3-A-01-NC
|
liteharbor | 466 KB | 292 |
