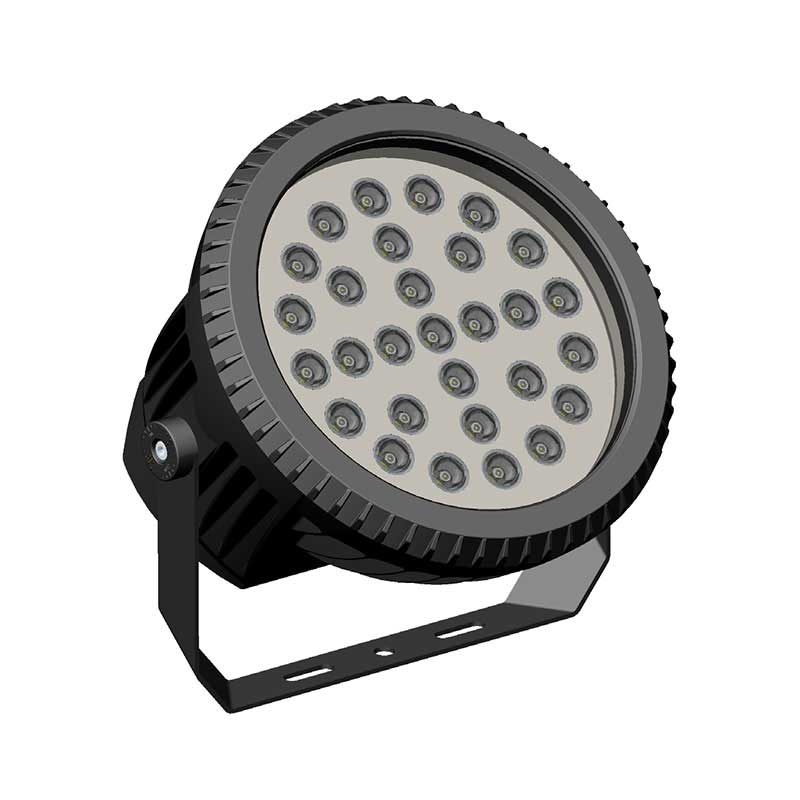

Liteharbor IP66 3CCT Circular LED Flood Light
/
/
/
/
Liteharbor IP66 3CCT Circular LED Flood Light

Liteharbor IP66 3CCT Circular LED Flood Light

ITEM No.: DG5216
Wattage : 60W
Input Voltage : AC 120V
IP Rating : IP66
Beam Angle : 120 Degree

Features

– The circular is used as the main design, and the lamps as a whole exhibit mechanical elements, so as to achieve a sleek, exquisite and flexible purpose.
– 4mm tempered clear glass, light transmittance up to 95%, reduce the light loss.
– The lamp is composed of a lamp body, a front end cover and a rear end cover, both of which are installed with a screw structure, and at the same time, the installation screws are hidden, and the appearance is beautiful.
– Reasonable heat dissipation design, high density precision die casting aluminum lamp body, ensure the life of lamp.
– Adopt brand LED light source.
– Outdoor professional static outdoor plastic powder sprayed on surface, anti-UV, anti-corrosion and weather resistance is strong.
– Unique manual switch dimming, color temperature control function: 3CCT (3000K/4500K/6000K).
– Intelligent light control induction function: through the light sensor intelligent switch lamp, no need manual switch.
– Lighting structure, electrical safety compliance with EN60598 GB7000 standard requirements.
– Electric shock protection: Class I
– IP rating: IP66

Applications
Suitable for factories, gymnasiums, wharfs, billboards, buildings, lawn, gardening design and other lighting and decorative lighting places.

Parameter

Item No. DG5216 DG5216A
Input Voltage AC100-240V AC100-240V
Frequency Range 50-60Hz 50-60Hz
Light Source 30 PCS 30 PCS
Power Factor >0.95 >0.95
Total Harmonic Distortion <15% <15%
System Power 60W 60W-RGB
Light Distribution Optional 15/20/30/45/60/90/120 degree 15/20/30/45/60/90/120 degree
Luminous Efficiency >100lm/W
Luminous Flux 6000lm
Applicable Ambient Temperature – 30 — 45°C
Working Temperature RH10%-90%
CCT Warm White 2700K
Pure White 4500K
Cool White 6000K
CRI Ra>75-90 optional
IP Rating IP66
Life Span >20000h/>30000h/>50000h are optional
Electric-shock Safeguard CIASS I
Dimensions ¢250*164.5 mm



Mounting

In-ground Mounted

Suspension Mounted

Tree Hanging Mounted

Product File Download

# File Added by File size Downloads
1 pdf DG5216 liteharbor 1 MB 253
