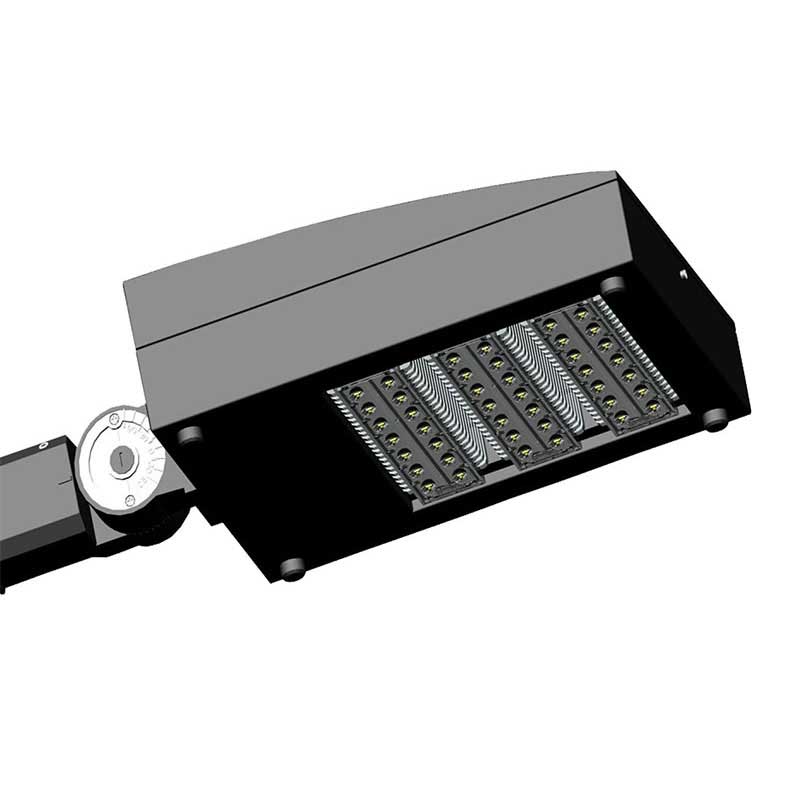

Liteharbor Solar IP68 LED Street Light ITEM No.： DG5101

Description

Specifically for road lighting design and aiming at the shortage of the traditional light source, fully optimized design of a road to meet the special requirements of the new energy-saving products, this product uses the high power LED light source CREE, with optical design and thermal design of superconducting material for cooling circuit intelligent management, advanced leading products in the road lighting has superior performance.

Features

Smooth linear and the LED structure characteristic organic combination.
Appearance simplicity,delicate and smooth.
Modular design,effectively keep the lamp good heat dissipation effect.
IP Rating: IP65
Unique two light distribution design.
Lamps and lanterns adopt imported monocrystalline silicon solar panels.
Long life power supply to ensure that the service life of 50000 hours or
more.

Data

Input Voltage: AC90-305V
Frequency: 47-63Hz
Power Factor: ＞0.95
Light Source: 15WX3module
Power: LED80-160W
Luminous Efficiency: ＞110lm/W
Luminous Flux: 9900lm
CRI: ＞75
Working Temperature: -30 –50°C
Life Span: ＞50000h
Class: CIASS  I
Dimensions: 580X350X120mm
CCT: Warm white2850-3200K
Pure white3700K-4200K
Cool white4700K-5300K

Mounting

Cantilever mounting

Listing/Warranty

ETL Listed to US and Canadian standards for wet locations.

5 Year LED Limited Warranty.

Application

Suitable for urban major road,secondary road,sidewalk residential zones,

Industrial area,square,park,school,Villa courtyard etc.

Other Special Requirements please Confirm with Factory
