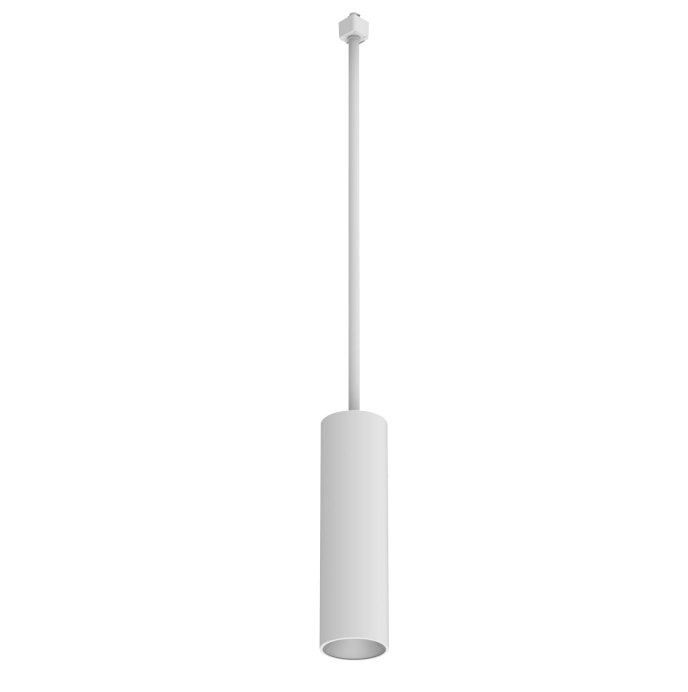

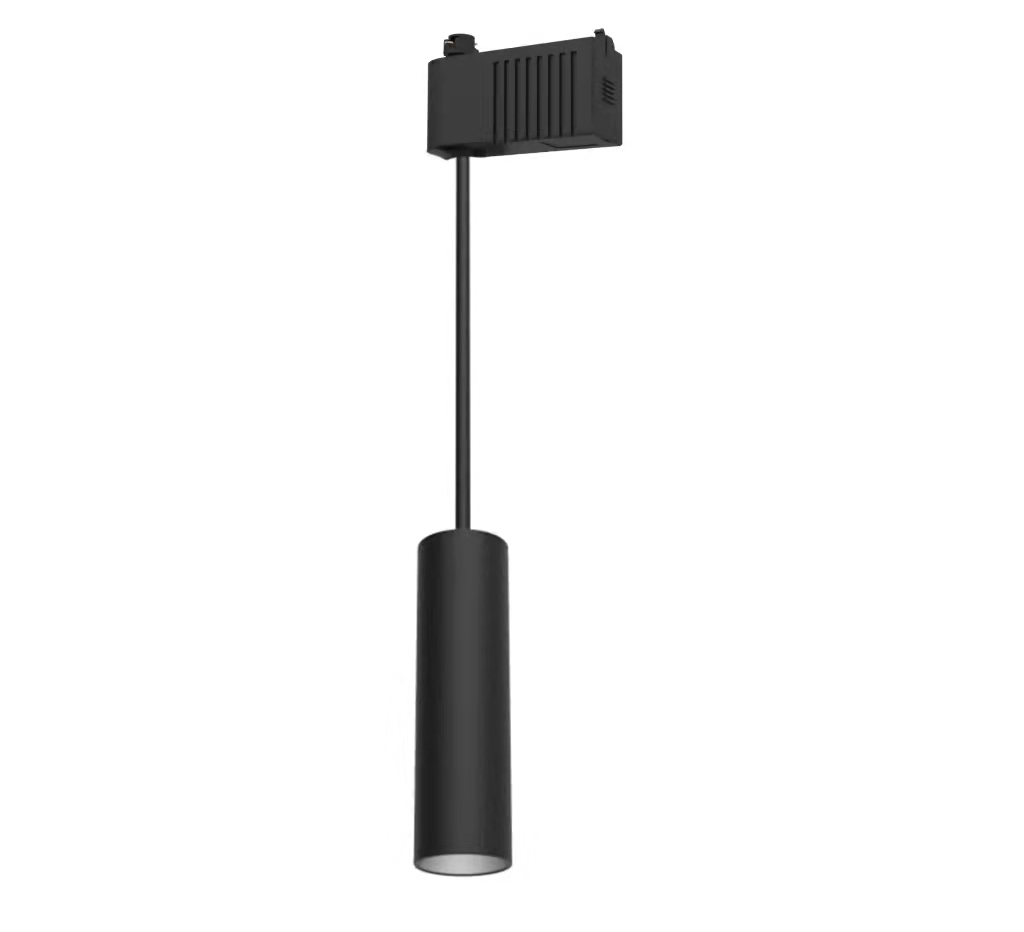

Low Volt J/H/L Track System Villa lighting 3CCT Cylinders LED Track Pendants

FEATURES

Centrally powered driver 120V input at the light source becomes the output 24V power.

lamp beads. Low-voltage centralized power supply improves safety and reduces single lamp spare parts.

Sleek, high performance pendant complements pendant downlighting family.

Unique flush, surface, cable, pendant mount design allows for precise alignment and adjustment.

All aluminum construction, powder coat painted in white, black or silver finish for harsh, weatherproof applications.

120V AC Direct technology in 10W, 16W or 20W dimmable modules with integrated circuit.

Easy installation and ultra energy efficient.

Dedicated 9° optic with field changeable 12°, 24°, 36° & 50° optics.

3 color temperature selectable, convenient inventory and cost savings.

SPECIFICATIONS

Radiator: Using cold forging radiator, fast heat dissipation, structure of the heat dissipation module, integrated balanced conduction convection,radiation heat, to ensure long product life.

Spraying: Environmental protection electrostatic powder coating surface treatment process, durable wear.

Material	Die cast aluminum
Input Voltage	24V
Wattage	10W/16W/20W
CCT	2700,3000K,3500K,4000K,5000K,6000K,3CCT
PF	>0.98
CRI	80+/90+
Mounting	Track Pendant Mount



Mounting

Pendant mounted.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.

5 Year Limited Warranty.
