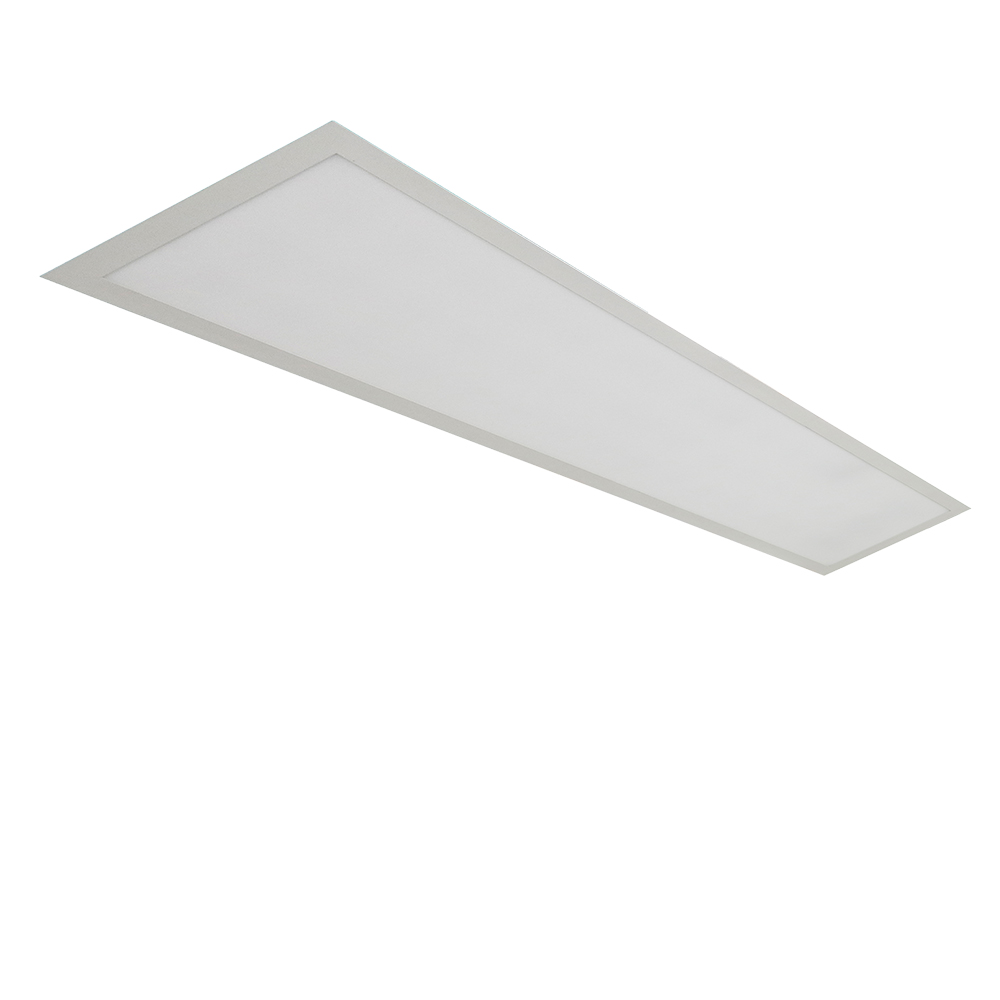

POE Solution 300 * 1200 Edgelit LED Panel Light With Power/ CCT Tunable For Lighting Project

Overview

LED Edge-Lit Flat Panel with is the perfect replacement for fluorescent troffers used in drop ceilings. Thoughtfully designed for superior illumination, ultimate efficiency and easy installation. Designed to fit in a conventional suspended grid ceiling for new construction or retrofit projects, LED flat panels will save you time and money. Perfect for areas where you need bright, even light such as schools, universities, offices, churches, game rooms and restaurants.



Features

• Power over Ethernet（POE） Lighitng Solution option
• 2.4G Wireless CCTTunable.
• Power & CCTTunable.
• Without LGP, never turn yellow.
• Isolated driver, PF>0.9, THD≤15 %
• Super bright SMD2835 LEDs, LM80 rated Ra>80.
• Lumen output: 130LM/W
• AC120-277V or AC120-347V, 0-10V dimmable.
• Non-flicker, no dark spot, protect your eyes.
• Ideal replacement for traditional troffer with over 80% energy saving.
• Back-lit technology diffuse reflection, uniform and soft light, no glare, no humming, no flare, no direct attention, effectively alleviate eye fatigue, more healthy use.
• Newest LGP technology, higher luminous efficiency.
• Leading LED driver design, overlong lifespan.
• Delicate structure design, ultra thin and ultra light.
• Simple, fashionable and elegant appearance.
• Easy installation,can replace the same size of ceiling lights or grille lights.
• No lead, no mercury, energy saving and environment friendly.
• IP Rating: IP40.
• Operating temperature: -20°C to 50°C.

POE SOLUTION

Liteharbor’s DGL-P series with single/double ethernet interface“One in” or “One in One out”design. It’s provides Cat 6/Cat 7/Cat 8 Ethernet Cable with UL Listed.PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.

Attribute

Cat 6

Cat 7

Cat 8

Frequency

250 MHz

600MHz

2000MHz

Transmission speed

1Gbps/10 Gbps

10 Gbps

25 Gbps/40 Gbps

Distance

100m

100m

30m

Number of Connectors in Channel

4

4

2

Cable Construction

UTP or Shielded

Shielded

Shielded

Connector Type

RJ45

RJ45

RJ45

AWG

24 AWG

30 AWG

26AWG

Application

LED panel light is widely used in commercial lighting, residential lighting and communal facilities lighting such as meeting room, office, office building and so on.
Factory, hotel, restaurant, KTV, supermarket, market, subway station, the station’s waiting room, school, hospital, and all other places need energy saving and high CRI.



Details

Description

DGL-P6628-E

DGL-P12328-E

DGL-P12628-E

Size

24”*24”

12”*48”

24”*48”

Edgelit Regular Series Wattage

36W/40W/45W

40W/45W

50W/60W/72W

Edgelit Premium Series Wattage

25W/35W/40W

25W/40W

32W/40W/50W/60W

Edgelit 2.4G Wireless Wattage

40W

40W

50W/60W

Edgelit Power & CCT Tunable SeriesWattage

20W-25W-30W-35W 30W-35W-40W-45W

20W-25W-30W-35W 30W-35W-40W-45W

35W-40W-45W-50W 35W-40W-45W-50W 55W-60W-65W-72W

Input:

AC100-277V, 50/60Hz

Luminous Flux

3900lm/4400lm/4900lm

3900lm/4400lm/4900lm

5500lm/6600lm/7900lm

Lumens / Watt

110LM/W

Dimming

0-10V Dimminhg/ 2.4G Wireless Dimming / CCT Tunable

Color temperatures

3000K,3500k,4000k,5000k

Function

●Wireless dimm ing                                      ●Dimming ●Wireless dimming + Sensing                        ●Dimming + Sensing ●Wireless dimming + Emergency                  ●Dimming + Emergency ●Wireless dimming + Sensing + Emergency   ●Dimming + Sensing + Emergency ●CCT & Watt Tunable                                 ●CCT & Watt Tunable + Sensing ●CCT & Watt Tunable + Emergency            ●CCT & Watt Tunable + Sensing + Emergency

PF:

0.98

Working Temperature:

-20℃ – 50℃

IP Grade:

IP44

Anti-power level:

Class II

LED Chips:

SMD2835/SMD4014

Emitting Color:

Warm white/Pure white/Cool white

Certifications:

UL DLC CE RoHS FCC

Lifetime

50000 Hours

Warranty

5-Year Limited



Quality

Certifications: UL DLC CE RoHS FCC
50000 Hours Lifetime.
5-Year Limited Warranty.
