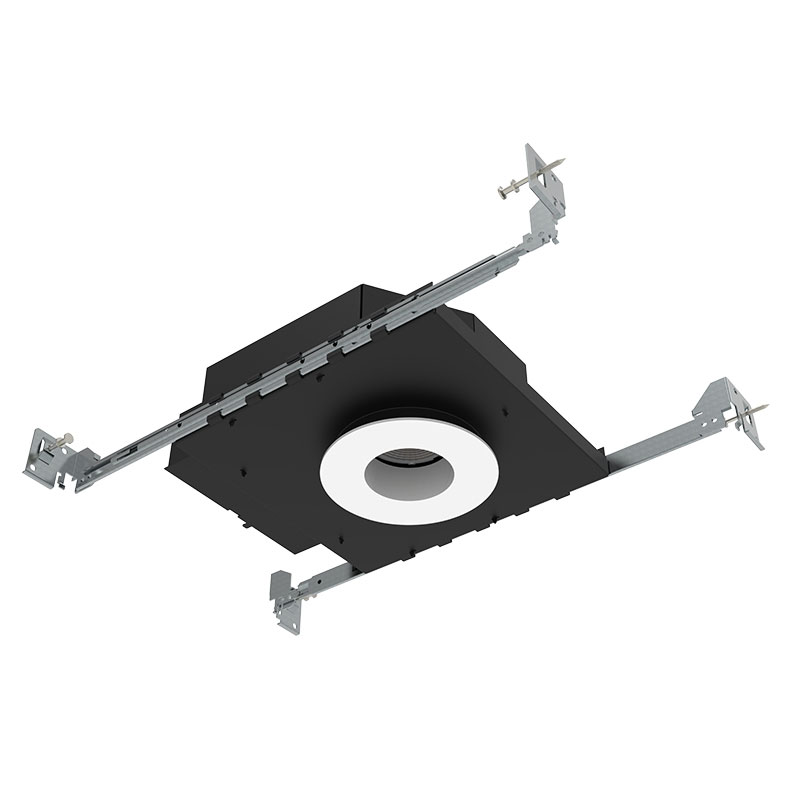

Hotel Lighting 3” LED Commercial Downlight Round Trimmed
ITEM No.： A3-M-2
Downlight Name : COB LED Recessed Downlight
Downlight Size : 3 inch
Downlight Wattage : 12 / 15 / 20 W
Downlight Lumens : 1000 1300 1600 Lumens
Downlight Beam Angle : 12 / 24 / 36 Degree
Housing Type : NON-IC / IC Rated
Features
– LED Downlights with shallow housings for recessed LED lighting.
– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and
electrical equipment in any ventilated space anywhere.
– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom
– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching
most dimmers.
– Beam angle: 12/24/36°
– Available in trimmed or trimless.
Ceiling Thickness
– Accommodates ceiling thickness 1/2″
– Delivered lumens are maintained through entire range
Listing / Warranty
– ETL listed to US and Canadian standards for damp location W/Feed through.
– 5 Year Limited Warranty.
Applications
– Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.
Parameter
| Input Voltage | AC 120V/277V | ||||||||
| Power | 12W | 15W | 20W | ||||||
| Dimming | Non-dimming/TRIAC/0~10V Dimming | ||||||||
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K | ||||||||
| CRI | 80/90CRI | ||||||||
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
A3-M-2, A3-M-2-TL
|
liteharbor | 613 KB | 333 |
