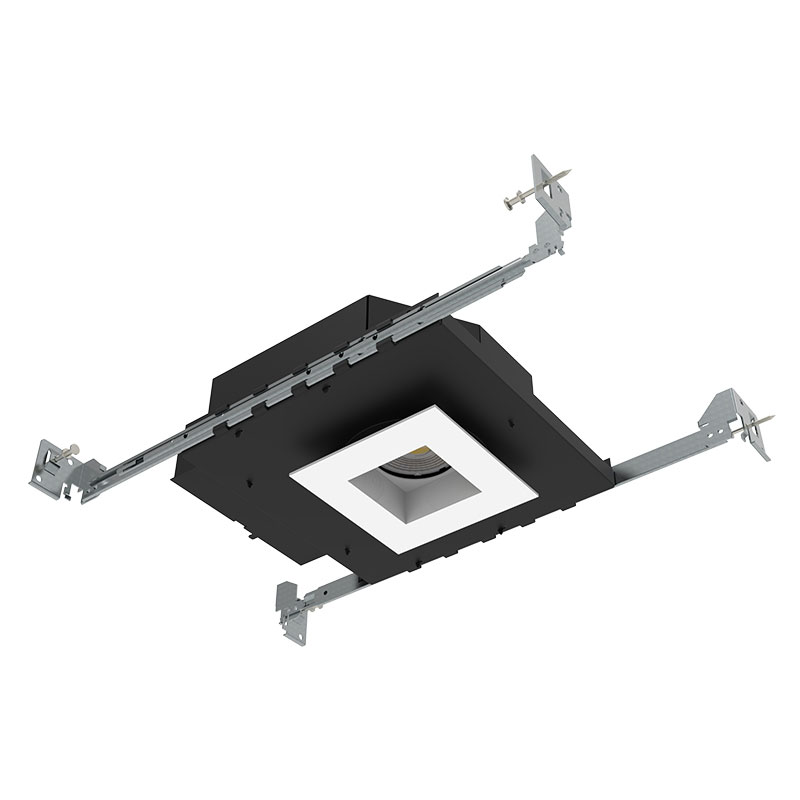

Lighting Project 3” Shallow New Construction commercial led downlights

Features

– LED Downlights with shallow housings for recessed LED lighting.

– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and

electrical equipment in any ventilated space anywhere.

– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom

– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)

– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching

most dimmers.

– Beam angle: 12/24/36°

– Available in trimmed or trimless.

Ceiling Thickness

– Accommodates ceiling thickness 1/2″

– Delivered lumens are maintained through entire range

Listing / Warranty

– ETL listed to US and Canadian standards for damp location W/Feed through.

– 5 Year Limited Warranty.

Applications

– Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.

Parameter

Input Voltage			AC 120V/277V
Power			12W		15W		20W
Dimming			Non-dimming/TRIAC/0~10V Dimming
CCT			2700K, 3000K, 3500K, 4000K, 5000K
CRI			80/90CRI
