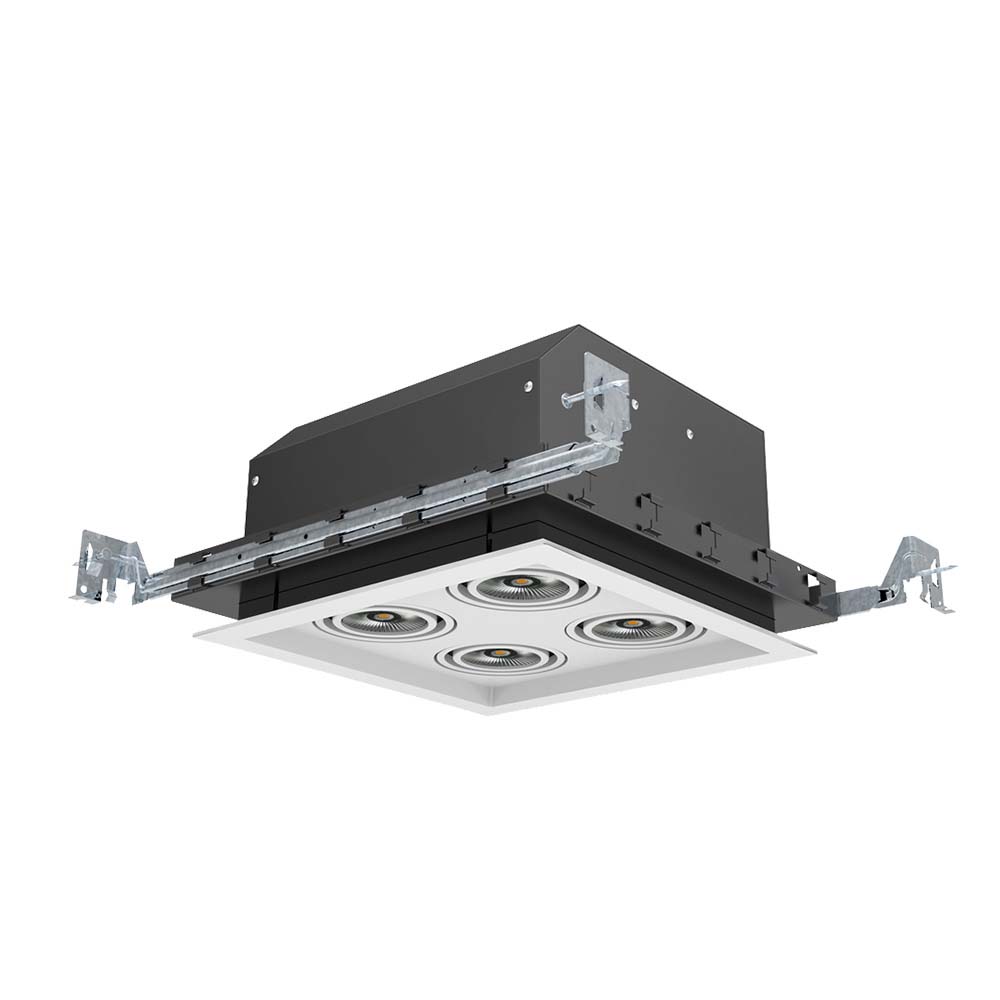

Square 4-Lamp New Construction Mini Multiple COB LED Recessed Lights
ITEM No.： G4014-E-S-COB
Series : LED Multiple Downlight
Light Source : COB
Input volt : 110V-277V
CCT : 2700-6500k
Material : Gauge Steel
Trim Options : Trimmed or Trimless
Trim Baseplate : Open or Closed Design
Description
Mini LED Multiple Spots for remodeling and new construction applications for residential and commercial environments. The Multiple Spots are marketed as complete units including the housing and trim. Available as one, two and three-light configurations, each spot is individually adjustable and provides a 30-degree visual cutoff for glare control.
Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt, 360° horizontal rotation
Construction
Die-cast aluminum heat sink painted black. Trim and housing
are constructed of Gauge Steel.
Mounting
Supplied with 4 ways hanger bar, adjustable from 14½”-25″ to
accommodate various joist construction and grid sizes. Hanger
bars include a captive mounting “screw-nail” for ease
installation. Can be accommodate a 1/2″ to 1 1/4″ ceiling
thickness.
Light Source
High output COB LED Chips
Dimming
Dimmable to 10% with most brand dimmers.
| Input Voltage | AC 90-305V 50/60Hz |
| Rated Power | 10/Lamp |
| Luminous Efficiency | 70 LM/W |
| Lamp | COB |
| Color Temperature | 2700-6500K |
| Material | Gauge Steel |
| Power Factor | > 0.98 |
| CRI | Ra80 / Ra90 |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
G401X-E-COB
|
liteharbor | 2 MB | 447 |
