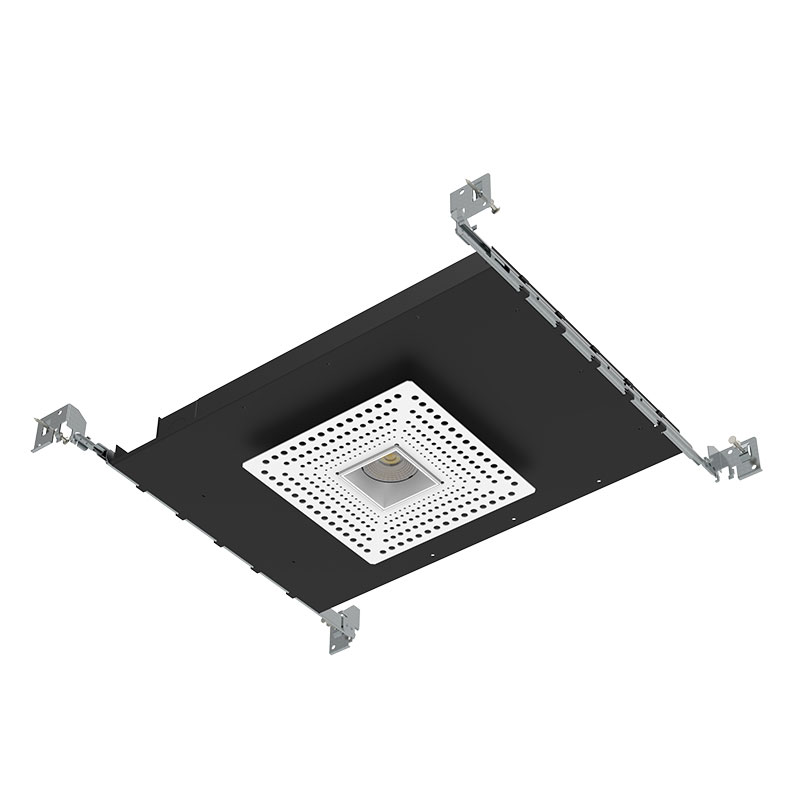

Shop Lighting 3” Trimless Shallow Square COB LED Recessed Downlight Kits

Features

– LED Downlights with shallow housings for recessed LED lighting.

– The finished ceiling is 2 or 3″ high and can help you easily combine quality lighting with piping, building infrastructure and

electrical equipment in any ventilated space anywhere.

– Meet the new thinnest LED housing in the world, measuring less than 3″ tall from top to bottom

– 850 to 1150 delivered lumens, 5 classic white color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)

– Isolated constant current drive power supply, safe and stable guarantee without strobe, standard dimming control, matching

most dimmers.

– Beam angle: 12/24/36°

– Available in trimmed or trimless.

Ceiling Thickness

– Accommodates ceiling thickness 1/2″

– Delivered lumens are maintained through entire range

LED Light Engine

Optional branded COB LED chips
Input AC 120V 230V 277V ( 90-305V is available)
12W 15W 20W
1000 1300 1600 Lumens
2700K, 3000K, 3500K, 4000K and 5000K at 80+ CRI
2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI
PF > 0.98
Dimmable options: NONE, TRIAC or RD 0-10V
LED mounted to die-cast / extruded aluminum heat sink w/ active cooling
50,000 hours average rated life at 70% output

Optics
12° Spot, 24° Narrow Flood and 36° Flood

Applications
Widely used for commercial and residential applications.

Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through
5 Year Limited Warranty.
