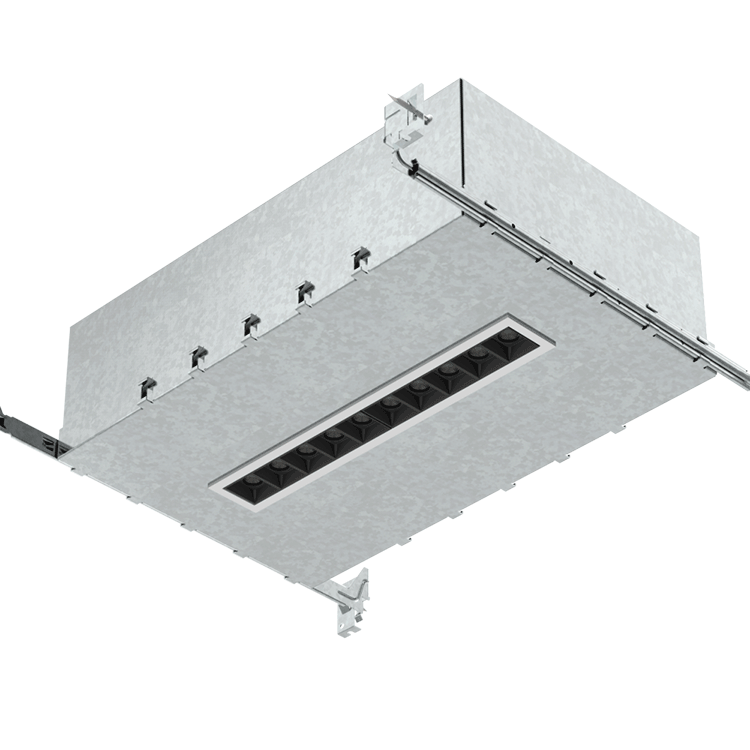

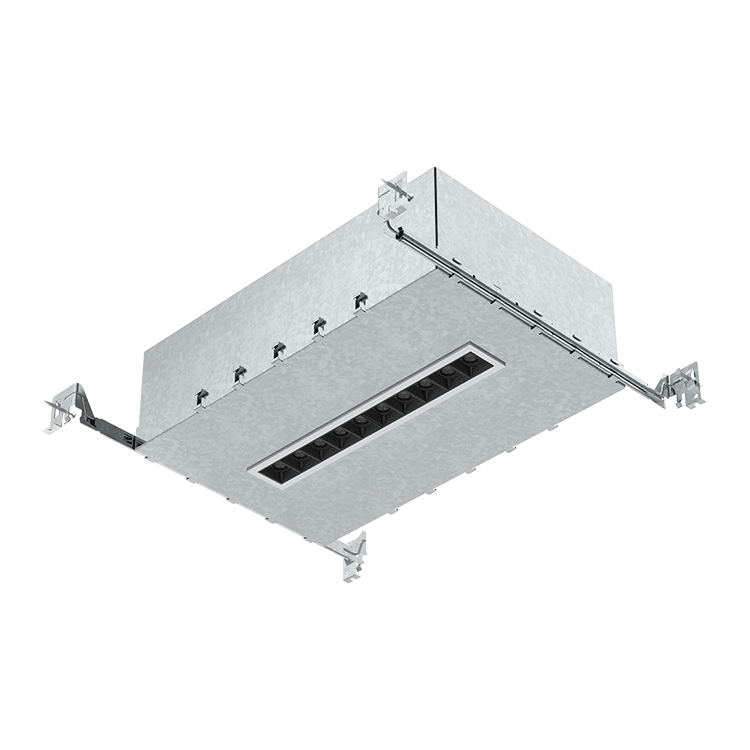

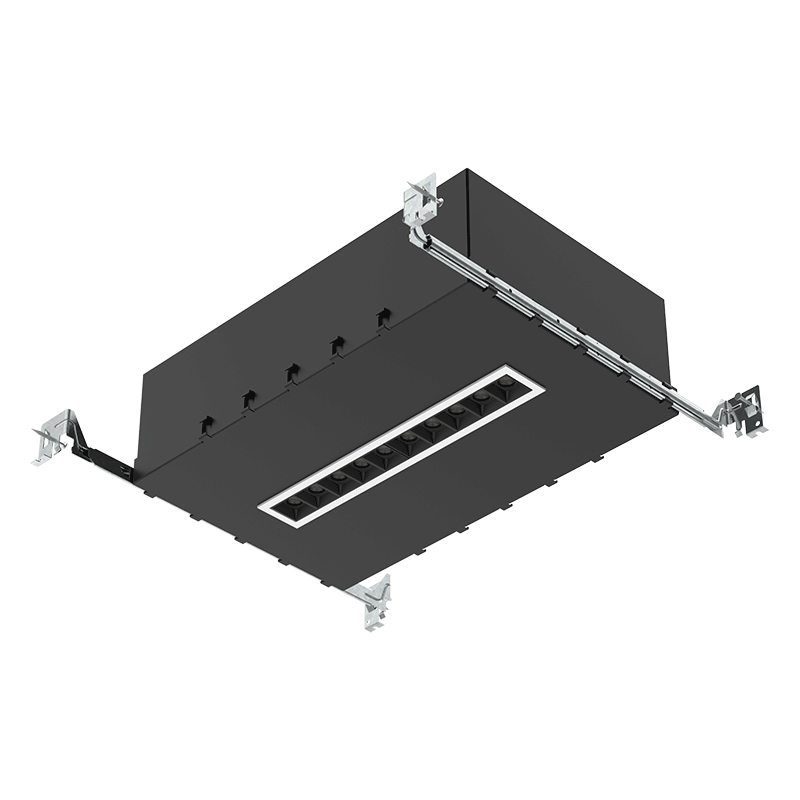

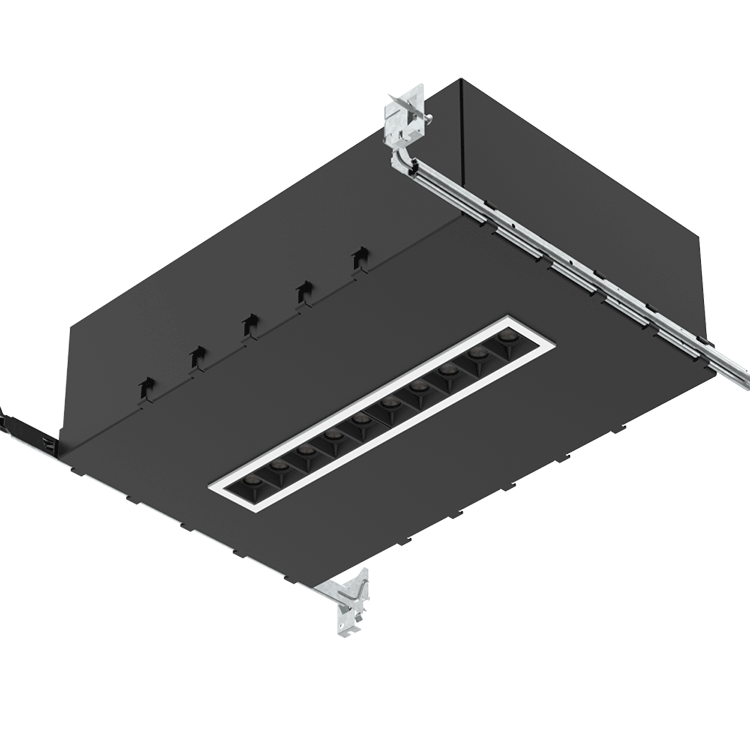

Trimmed/Trimless IC Airtight Vertical Mini LED Multiple Downlight With 10 Lamps
/
/
/
/
/
Trimmed/Trimless IC Airtight Vertical Mini LED Multiple Downlight With 10 Lamps

Trimmed/Trimless IC Airtight Vertical Mini LED Multiple Downlight With 10 Lamps

ITEM No.: G4011A-10-IA
Wattage : 2W/Lamp
Series : Mini LED Multiple Downlight
Application : Commercial/Residential

Description
The Mini multiple downlight Series is equipped with1, 2, 5, 10 and 15 lamps. The miniaturized design, die-cast aluminum body, and high-performance acrylic diffuser provide uniform scientific light output for maximum visual comfort.

Features
–  Revolutionary narrow Recessed downlight available in slim trim or trimless.
– The simplified retrofit installation can be used in both new and existing spaces.
– Dimmable with a variety of commonly used drivers.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.

Specification
– Luminaire efficacy: 65 to 80lm/W
– Source: White LED module (LM-80 tested) 2700K~6000K CRI>90
– Lumen maintenance: 90% of initial lumens at 50 000 hours (L90) (LM79 tested)
– Optics: Low luminance: Spot optic, with pptibeam technology
– Material: Body and Heat sink: Die-cast aluminum, Reflector and Baffle: Thermoplastic
– Mounting: New construction installation or remodel installation

Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.

Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting
and accent lighting.

Parameter

 Wattagte  2W/Lamp
 Lumen  65-80lm/W
 Optics  30°
 CCT  2700K ~ 6000K
 Material  Die-cast Aluminum
 Dimming  Non/TRIAC/0~10V
 Finish  White/Black/Silver



Product File Download

# File Added by File size Downloads
1 pdf G4012A-10-IA liteharbor 880 KB 223
2 pdf Mini Multiple DownLight liteharbor 1 MB 433
