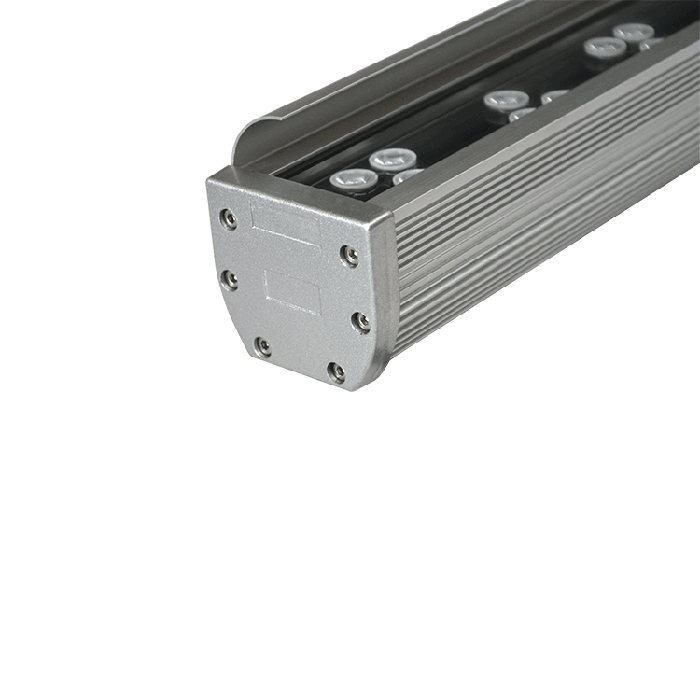

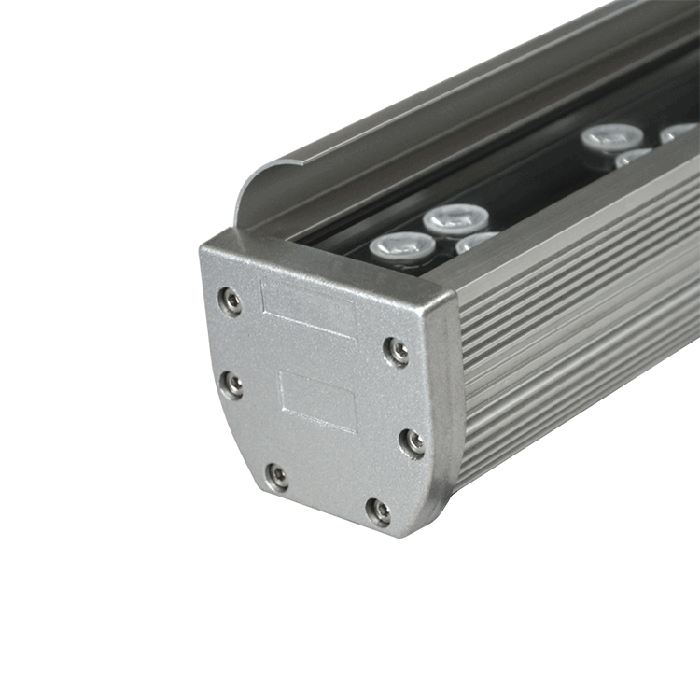

Wall Washer RGB High Power LED RGB Flood Light 0.5m/ 1m
ITEM No.: L0340
product series : led wall washer lighting
led q’ty : 36
material : aluminum
controller : Independent or DMX512
ODM & OEM : acceptable
Description
Housing is made of die-cast aluminum good heat dissipation
White, black, silver finish are available, other special finish please confirm with factory
Special outdoor powder coating ensure good corrosion resistance
High power and good quality reflector bring you superior lighting conditions
IP65
Idea for gymnasium, super market, and residential housings outdoor projects and so on. It will bring you a colorful and beautiful world
Angle beam of reflector 15 degree
Features
Multiple light colors can make a colorful world
Can be used with a RGB controller which can bring you more colorful effects
Using OSRAM LED chips
Energy saving and environment friendly
Easy installation
Installation
Check the gasket carefully before start the installation
Check the below picture when using with a controller
Cascade max length is 50M
Safety Instruction
Electronic boxes must water, dust resistant
Check the electronic wires carefully before installation
When drilling holes not available do not use glue to secure the fixture, please set in a special metal fixture or board instead
Do not install the fixture near to the place where it incombustible and explosive
LEDs
Quantity of LED 18pcs 0.5m/ 36pcs 1m
Wattage Output: 36W (Item: L0340); 72W (Item: L0341)
Working temperature:-20-55℃
Color Temperature: 2700-6500K
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | L0340 (2) | liteharbor | 82 KB | 218 |
